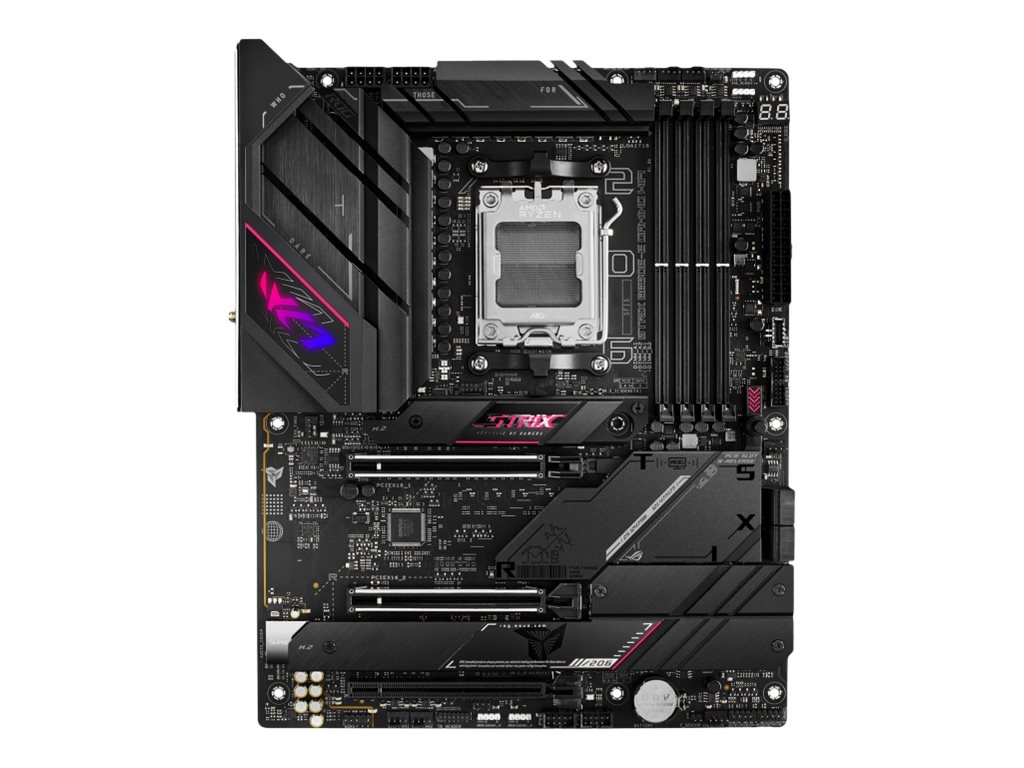

ASUS ROG Strix B650E-E Gaming WiFi - motherboard - ATX - Socket AM5 - AMD B650
SKU 90MB1BB0-M0EAY0
Product Description: | ASUS ROG Strix B650E-E Gaming WiFi - motherboard - ATX - Socket AM5 - AMD B650 |
Product Type: | Motherboard - ATX |
Chipset Type: | AMD B650 |
Processor Socket: | 1 x Socket AM5 |
Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
Max RAM Size: | 128 GB |
RAM Supported: | 4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - ATX |
Chipset Type: | AMD B650 |
Processor Socket: | Socket AM5 |
Max Processors Qty: | 1 |
Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
Supported RAM | |
Max Size: | 128 GB |
Technology: | DDR5 |
Bus Clock: | 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz, 5000 MHz |
Supported RAM Integrity Check: | Non-ECC, on-die ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture, AMD EXPO technology |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | Realtek ALC4080 |
Compliant Standards: | High Definition Audio, DTS Sound Unbound |
LAN | |
Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 3 x (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2230/2242/2260/2280/22110 M.2 Key M slot) |
Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |
RAID Features: | AMD RAID Xpert2 Technology |
Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 6 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x SPDIF out ¦ 2 x aerial |
Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header |
Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
Features | |
BIOS Type: | AMI |
BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
Hardware Features: | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, 16+2 Phase Power Design, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Q-Code, Preboot eXecution Environment (PXE), 8 Layer PCB, Clear CMOS Button, LANGuard, ASUS SafeSlot, ASUS SafeDIMM, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, DIY Friendly Design, 70A Power Stage, Savitech SV3H712 amplifier, M.2 Q-Latch, 5K Black Metallic Capacitors, PCIe Slot Q-Release, BIOS FlashBack button, BIOS FlashBack LED, ASUS Enhanced Memory Profile (AEMP) |
Miscellaneous | |
Included Accessories: | Cable ties, STRIX stickers, ROG thank you card, thermal pad for M.2 SSD, ROG key chain, ASUS Wi-Fi moving aerial, M.2 Q-Latch, 2 x M.2 rubber package |
Cables Included: | 2 x Serial ATA cable |
Software Included: | ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4 |
Compliant Standards: | VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH |
Width: | 30.5 cm |
Depth: | 24.4 cm |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 1 year |
Take your build from B-tier to S with the Strix B650E-E! PCIe 5.0 and DDR5 propel your rig into the future, and innovative Q-Design features make system setup a breeze. All of its perks are backed by a tenacious power solution, hefty heatsinks, and exclusive overclocking technologies to drive you to the next level with Ryzen 7000.
- Robust 16-stage power solution rated to 70 A per stage
- Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
- Both x16 slots and two on-board M.2 slots are all PCIe Gen 5-ready
- 6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
- Faster-than-Gigabit Wi-Fi unlocks access to the low-interference 6 GHz band
- Easy installation for GPUs and SSDs
