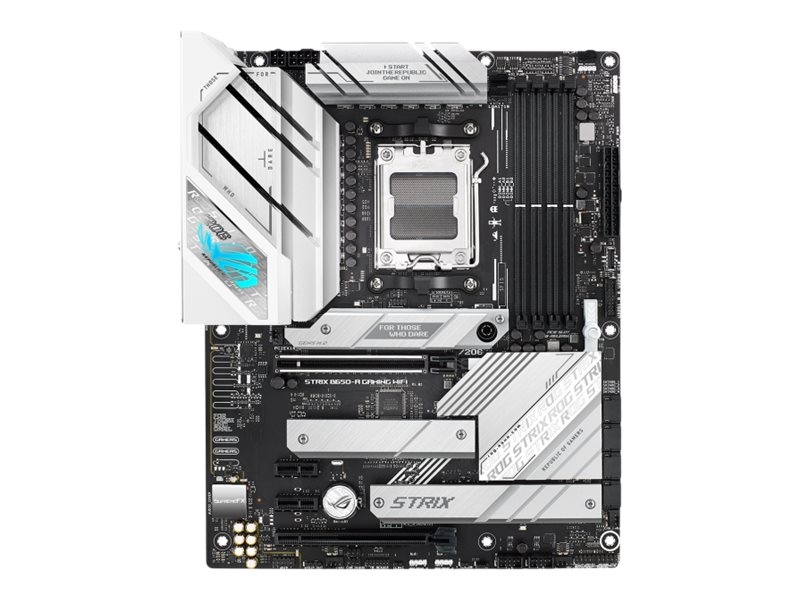

Printers & POSASUS ROG STRIX B650-A GAMING WIFI - motherboard - ATX - Socket AM5 - AMD B650
SKU 90MB1BP0-M0EAY0
| Product Description: | ASUS ROG STRIX B650-A GAMING WIFI - motherboard - ATX - Socket AM5 - AMD B650 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B650 |
| Processor Socket: | 1 x Socket AM5 |
| Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR5, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B650 |
| Processor Socket: | Socket AM5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR5 |
| Bus Clock: | 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz (O.C.), 5400 MHz (O.C.), 5200 MHz, 5000 MHz, 4800 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, AMD EXPO technology |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC4080 |
| Compliant Standards: | High Definition Audio, DTS Sound Unbound |
| LAN | |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x PCIe 4.0 x1 ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| RAID Features: | AMD RAID Xpert Technology |
| Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x aerial |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x SPDIF out - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | ASUS OptiMem II, LANGuard, Savitech SV3H712 amplifier, jack retasking, Water Pump Header, audio jack detect technology, SupremeFX Shielding technology, BIOS FlashBack button, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-Slot, M.2 heatsink, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, CrashFree BIOS 3, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, VRM heatsink design, Preboot eXecution Environment (PXE), FlexKey button, 12+2 Phase Power Design, ASUS Enhanced Memory Profile (AEMP), 6 Layer PCB |
| Miscellaneous | |
| Included Accessories: | Thermal pad for M.2 SSD, ASUS Wi-Fi moving aerial, cable ties, M.2 Q-Latch, ROG key chain, STRIX stickers, ROG thank you card, 2 x M.2 rubber package |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ROG GameFirst VI, ROG CPU-Z, Sonic Radar III, Sonic Studio III, Sonic Studio Virtual Mixer, Sonic Suite Companion, Armoury Crate, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, WinRAR |
| Compliant Standards: | FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, UKCA, DisplayPort 1.4, WEEE |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
The ROG STRIX B650-A GAMING WIFI comes equipped with potent performance and thermal prowess in a fresh-looking package. Robust power delivery designed to handle the AMD Ryzen 7000 Series processors is cooled with thick metal heatsinks that stand out against a black PCB. A PCIe 5.0 M.2 slot, speedy DDR5 memory support, and the Wi-Fi 6E networking fleshes out the futuristic feature set.
- PCIe slot Q-Release
- BIOS FlashBack
- PBO enhancement
- Power architecture
- Alloy chokes and durable capacitors
- Six-layer PCB
- DDR5 strength
- VRM heatsinks
- High-conductivity thermal pads
- M.2 heatsinks
- Intel 2.5G Ethernet
- Undeniably ROG Strix
- Outshine the competition
