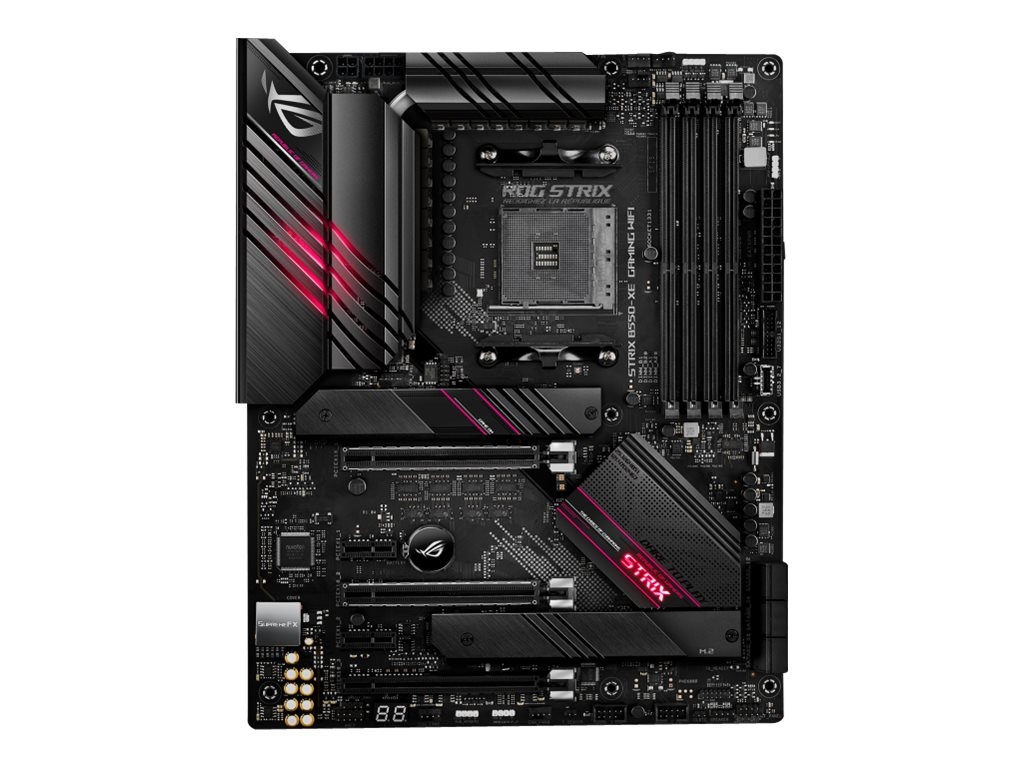

Printers & POSASUS ROG STRIX B550-XE GAMING WIFI - motherboard - ATX - Socket AM4 - AMD B550
SKU 90MB17B0-M0EAY0
| Product Description: | ASUS ROG STRIX B550-XE GAMING WIFI - motherboard - ATX - Socket AM4 - AMD B550 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B550 |
| Processor Socket: | 1 x Socket AM4 |
| Compatible Processors: | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B550 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5100 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | SupremeFX (S1220A) |
| Compliant Standards: | High Definition Audio, DTS Sound Unbound |
| LAN | |
| Network Controller: | Intel I255-V / Intel AX200 |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C Gen2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 4 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | BIOS FlashBack, UEFI BIOS |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), NVIDIA 2-way SLI Technology Support, ASUS DIGI+ VRM, SupremeFX Shielding technology, AMD 3-way CrossFireX technology support, Preboot eXecution Environment (PXE), LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, ASUS ProCool, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, GameFirst VI, 14+2 Phase Power Design |
| Miscellaneous | |
| Included Accessories: | Cable ties, ROG fan stickers, ROG thank you card, RGB Addressable LED extension cable, ROG key chain, ASUS Wi-Fi moving aerial, 5 x M.2 screws, 3 x M.2 rubber package, Hyper M.2 x16 Gen 4 card |
| Cables Included: | 4 x Serial ATA cable ¦ 1 x USB-C audio cable |
| Software Included: | Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, Overwolf, ASUS EZ Flash 3, Antivirus, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer, ROG GameFirst VI |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the PCI Express 4.0 interface. The flagship of the B550 motherboard range, ROG Strix B550-XE Gaming WIFI, offers robust power delivery and effective cooling, making it well-equipped to handle the popular 3rd Gen AMD Ryzen and the AMD Ryzen 5000 (Zen 3 architecture) processors.
- PCIe 4.0-ready
- Power design
- Teamed power stages
- 6-layer PCB
- Alloy choke & capacitor
- Intel 2.5 Gb Ethernet
- ROG gives you more
The technical details come from 3rd party. edgemo is not responsible for any errors.
