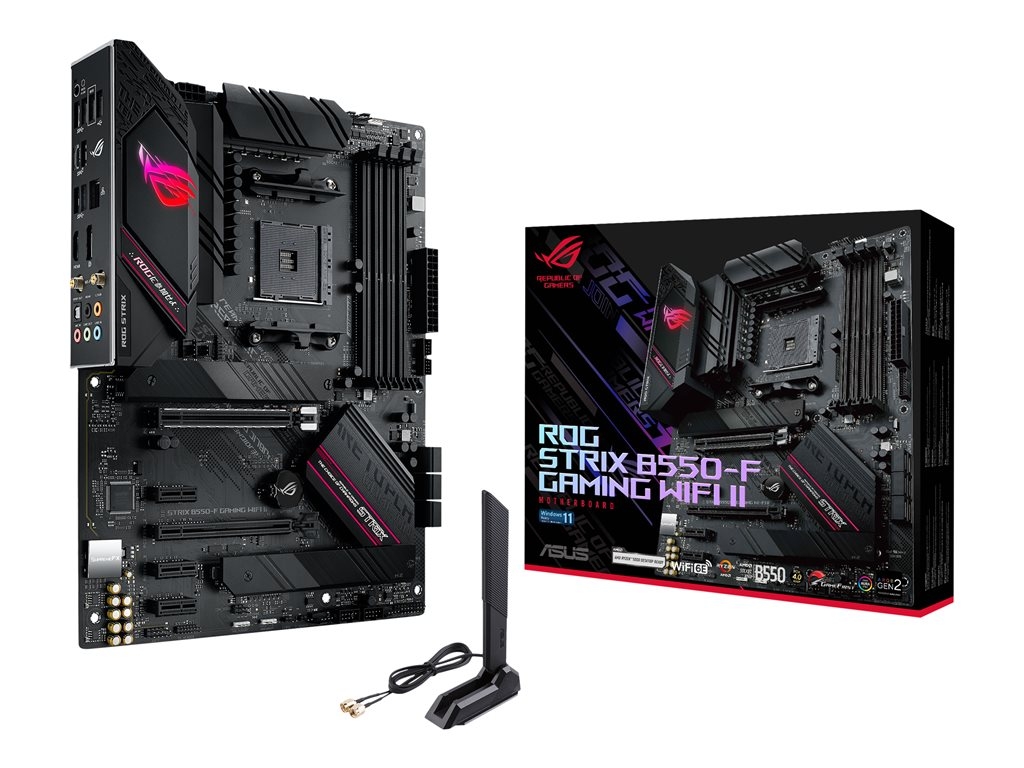

ASUS ROG STRIX B550-F GAMING WIFI II - motherboard - ATX - Socket AM4 - AMD B550
SKU 90MB19V0-M0EAY0
Product Description: | ASUS ROG STRIX B550-F GAMING WIFI II - motherboard - ATX - Socket AM4 - AMD B550 |
Product Type: | Motherboard - ATX |
Chipset Type: | AMD B550 |
Processor Socket: | 1 x Socket AM4 |
Compatible Processors: | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
Max RAM Size: | 128 GB |
RAM Supported: | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - ATX |
Chipset Type: | AMD B550 |
Processor Socket: | Socket AM4 |
Max Processors Qty: | 1 |
Compatible Processors: | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
Supported RAM | |
Max Size: | 128 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4866 MHz (O.C.), 5100 MHz (O.C.) |
Supported RAM Integrity Check: | Non-ECC, ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | SupremeFX (S1220A) |
Compliant Standards: | High Definition Audio, DTS Sound Unbound |
LAN | |
Network Controller: | Intel I255-V |
Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 3 x PCIe 3.0 x1 |
Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 |
Interfaces: | 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x TOSLINK ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI |
Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header |
Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | BIOS FlashBack, UEFI BIOS |
Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
Hardware Features: | Jack retasking, ASUS Q-Design, 12+2 Phase Power Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding technology, Preboot eXecution Environment (PXE), ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, ASUS Aura Sync, GameFirst VI |
Miscellaneous | |
Included Accessories: | External antenna, cable ties, 1 x M.2 screw, ROG fan stickers, ROG thank you card, RGB Addressable LED extension cable, rubber pad, ROG key chain |
Cables Included: | 4 x Serial ATA cable |
Software Included: | ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, Overwolf, ASUS EZ Flash 3, DAEMON Tools, Antivirus, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer, Norton AntiVirus (Trial), AIDA64 Extreme (60 days trial) |
Width: | 30.5 cm |
Depth: | 24.4 cm |
ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including PCIe 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle Zen 3 architecture AMD Ryzen CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming Wi-Fi II gives you a head start on your dream build.
- AM4 socket: ready for AMD Ryzen 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
- Great gaming connectivity: PCIe 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C, plus HDMI 2.1 and DisplayPort 1.2 output
- Smooth networking: On-board Wi-Fi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- DIY-friendly design: includes a pre-mounted I/O shield, BIOS FlashBack, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
- Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III for immersive sound
