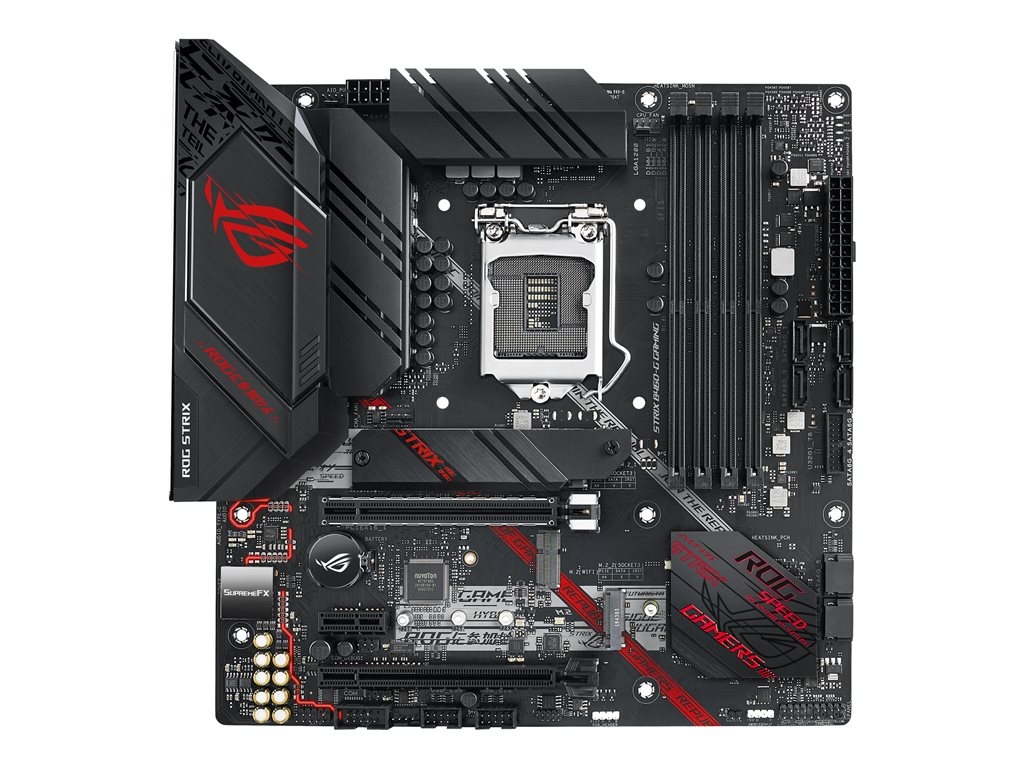

Printers & POSASUS ROG STRIX B460-G GAMING - motherboard - micro ATX - LGA1200 Socket - B460
SKU 90MB1460-M0EAY0
| Product Description: | ASUS ROG STRIX B460-G GAMING - motherboard - micro ATX - LGA1200 Socket - B460 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel B460 |
| Processor Socket: | 1 x LGA1200 Socket |
| Compatible Processors: | Celeron, Core i5, Core i3, Core i7, Pentium Gold (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel B460 |
| Processor Socket: | LGA1200 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | Celeron, Core i5, Core i3, Core i7, Pentium Gold (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | SupremeFX (S1220A) |
| Compliant Standards: | High Definition Audio, DTS Sound Unbound |
| LAN | |
| Network Controller: | Intel I219V |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode, x2 mode if all PCIe x1 slots are occupied) ¦ 1 x PCIe 3.0 x1 (auto turn-off if PCI Express 3.0 x4 slot is occupied) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB-C ¦ 1 x USB-C Gen2x2 ¦ 6 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Extreme Memory Profile (XMP) support, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, SupremeFX Shielding technology, AMD CrossFireX technology support, Preboot eXecution Environment (PXE), LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Optane Memory Ready, Sonic Radar III, Sonic Studio III, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, ASUS Aura Sync, Armoury Crate, FlexKey button, GameFirst VI |
| Miscellaneous | |
| Included Accessories: | Cable ties, ROG fan stickers, 2 x M.2 screws, ROG thank you card, RGB Addressable LED extension cable, rubber pad |
| Cables Included: | 2 x Serial ATA cable ¦ Audio / USB cable |
| Software Included: | ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, Overwolf, ASUS EZ Flash 3, Antivirus, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
ROG Strix B460-G Gaming motherboard is instantly recognizable with its classic red-and-black color scheme and futuristic cybertext markings. The robust power design and comprehensive cooling features of Strix B460-G Gaming ensure great all-round performance, and an intuitive dashboard gives you full networking control so you can harness the full potential of your build. Teamed power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the Intel processors demand.
- Great all-round performance
- Teamed power stages
- ProCool power connector
- Alloy choke and capacitor
- Superior audio performance
- 6 x SATA 6 GB/s
- Dual PCIe 3.0 M.2
- 1 x USB 3.2 Gen 2x2
- 6 x USB 3.2 Gen 1
- 1 x 4-pin Aura RGB header
- 1 x 3-pin Addressable Gen 2 RGB header
- 2 x USB 2.0 headers
- Cyberpunk-inspired aesthetics
- Distinctive ROG logo and classic look
