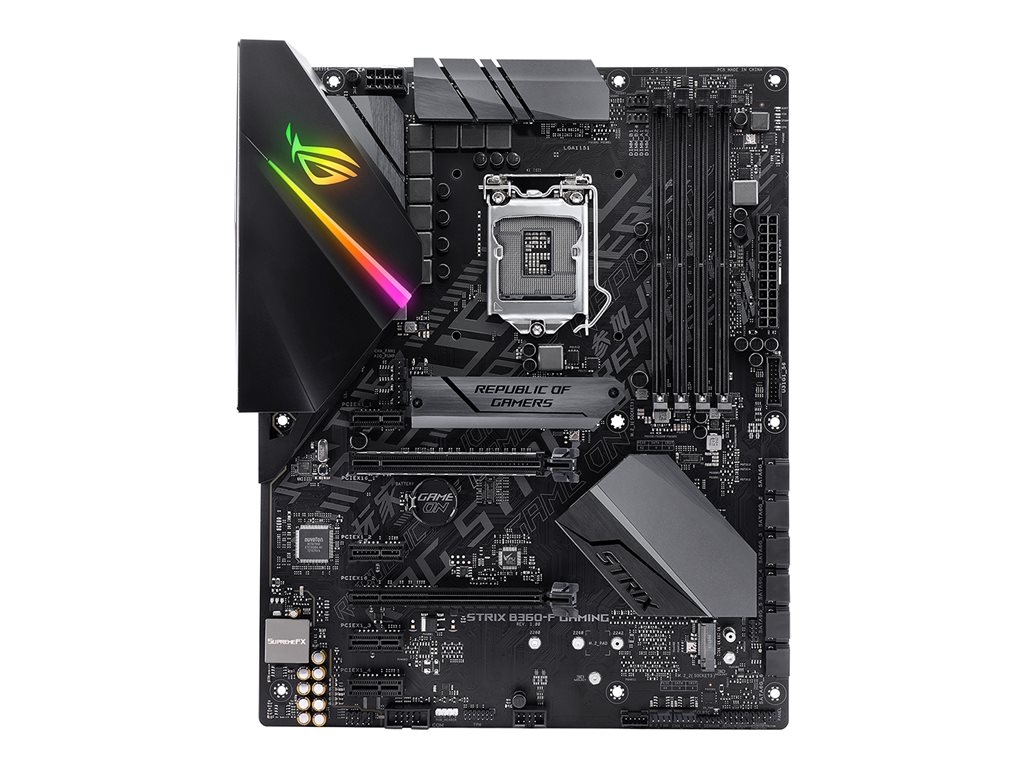

ASUS ROG STRIX B360-F GAMING - motherboard - ATX - LGA1151 Socket - B360
SKU 90MB0WG0-M0EAY0
Product Description: | ASUS ROG STRIX B360-F GAMING - motherboard - ATX - LGA1151 Socket - B360 |
Product Type: | Motherboard - ATX |
Chipset Type: | Intel B360 |
Processor Socket: | 1 x LGA1151 Socket |
Compatible Processors: | Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7) |
Max RAM Size: | 64 GB |
RAM Supported: | 4 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - ATX |
Chipset Type: | Intel B360 |
Processor Socket: | LGA1151 Socket |
Max Processors Qty: | 1 |
Compatible Processors: | Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7) |
Supported RAM | |
Max Size: | 64 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
Supported RAM Integrity Check: | Non-ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | SupremeFX (S1220A) |
Compliant Standards: | High Definition Audio |
LAN | |
Network Controller: | Intel I219V |
Network Interfaces: | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 4 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 (x4 mode (x2 mode if PCI Express 3.0 x1 slot is occupied)) |
Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |
Interfaces: | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DVI-D ¦ 1 x DisplayPort ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 |
Internal Interfaces: | 2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header |
Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | Multilingual BIOS, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support |
Sleep / Wake Up: | Wake on LAN (WOL), wake on ring (WOR), wake on PME |
Hardware Features: | Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, SupremeFX Shielding technology, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, dual headphone amplifiers, LANGuard, ASUS Gamer's Guardian, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, 3D printing friendly, Intel Optane Memory Ready, Sonic Radar III, pre-mounted I/O shield, Sonic Studio Link |
Miscellaneous | |
Included Accessories: | Cable ties, ROG Door Hanger, 1 x M.2 screw, ROG fan stickers, RGB (RGBW) LED strip extension cable, 3D printing mount package |
Cables Included: | 4 x Serial ATA cable |
Software Included: | Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, Overwolf, ASUS EZ Flash 3, ROG Aura, ROG GameFirst IV, ASUS ROG RAMCache II, ROG CloneDrive |
Width: | 30.5 cm |
Depth: | 24.4 cm |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But it's not all about arresting looks: the ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a premium touch. DIY friendly design simplifies your PC-building experience, so installation is easier, compatibility assured, and all-around protection to keep you and your rig safe. Experience great performance through comprehensive cooling controls, fast storage, and exclusive technologies to enhance memory reliability and speed. Proper gaming audio built-in means you're ready to play, chat or stream or kick back with videos right out of the gate, with smart routing to direct different audio streams to different devices. Loaded with advanced technologies, you'll benefit from connections as quick and simple to make as they are stable and speedy. ROG Strix B360-F Gaming features Ethernet for faster, smoother gaming. LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power available for gaming.
- Cyber outlook
- DIY friendly design
- High performance
- High-quality audio
- Advanced networking
- More throughput and less CPU usage for great gaming experiences
