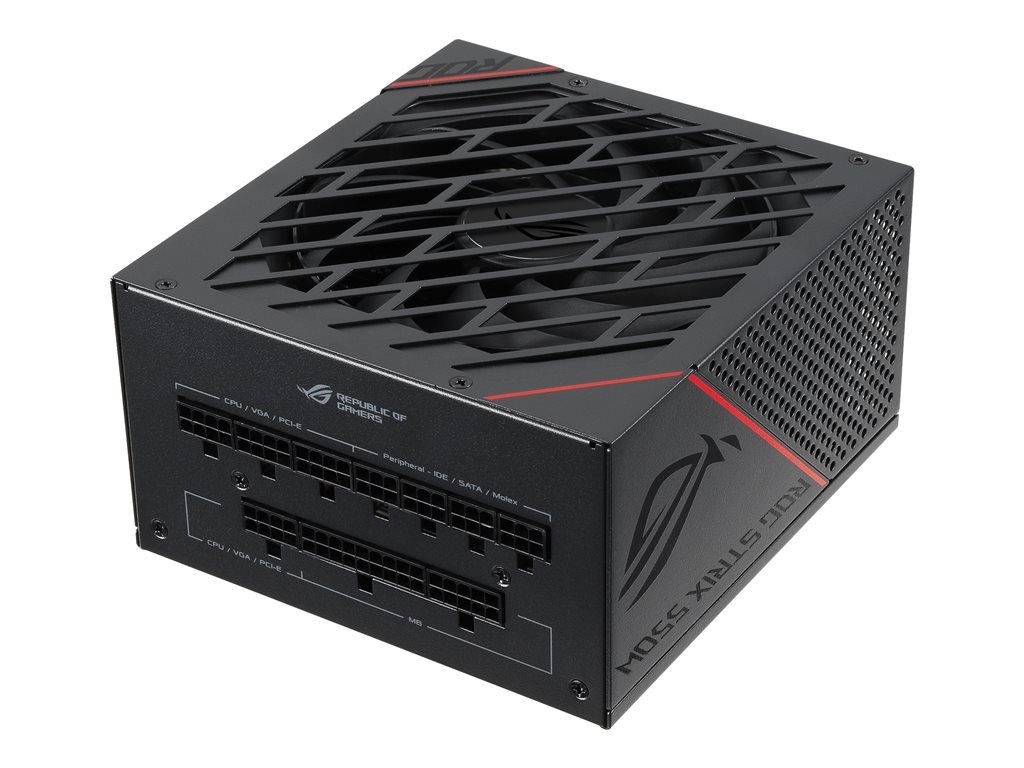

ASUS ROG-STRIX-550G - power supply - 550 Watt

SKU 90YE00A2-B0NA00
Product Description:ASUS ROG-STRIX-550G - power supply - 550 Watt
Device Type:Power supply - internal
Specification Compliance:ATX12V
80 PLUS Certification:80 PLUS Gold
Weight:1.73 kg
Input Voltage:AC 100-240 V
Output Voltage:+3.3, +5, ±12 V
25-06-2024
  • Specifications
  • Description
General
Device Type:Power supply - internal
Specification Compliance:ATX12V
PSU Form Factor:ATX
Power Device
Input Voltage:AC 100-240 V
Power Output Connectors Details:1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power
Output Voltage:+3.3, +5, ±12 V
Power Capacity:550 Watt
Output Current:+3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 45 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Modular Cable Management:Yes
80 PLUS Certification:80 PLUS Gold
Miscellaneous
Included Accessories:2 x ROG badges, ROG logo magnet, 3 x ROG labels
Features:Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ROG heatsink, Axial-tech fan design, 0db Technology
Compliant Standards:RoHS
Manufacturer Warranty
Service & Support:Limited warranty - 10 years
Dimensions & Weight
Width:15 cm
Depth:16 cm
Height:8.6 cm
Weight:1.73 kg
Dimensions & Weight (Shipping)
Shipping Weight:3.12 kg
vis mere
The ROG Strix Series PSUs bring high-end cooling and premium components together for an ultra-quiet high-performance product aimed at core gamers. In terms of cooling, massive ROG heatsinks trickle down from the mighty ROG Thor series and Axial-tech fan design from premium NVIDIA RTX graphics cards also make an appearance. Below the surface, low RDS (on) MOSFETs and premium Japanese capacitors take on power delivery with ease. The result is an incredibly quiet and efficient power supply with the reserves to handle the most intense gaming scenarios.
  • ROG heatsinks cover critical components, delivering lower temperatures and reduced noise
  • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs
  • 0dB Technology lets you enjoy light gaming in relative silence
  • Cosmetic customization is enabled by a magnetic logo and stickers that help you reskin the visible side to your liking
  • Fully modular cables keep your rig neat and tidy




The technical details come from 3rd party. edgemo is not responsible for any errors.
