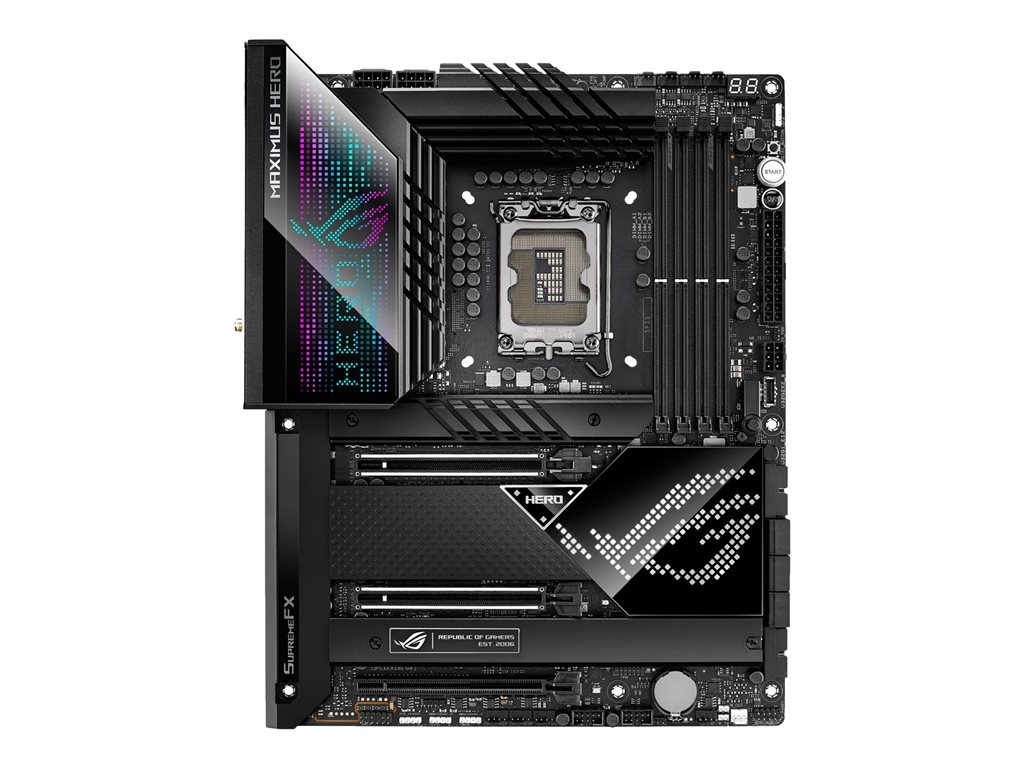

ASUS ROG MAXIMUS Z690 HERO - motherboard - ATX - LGA1700 Socket - Z690

SKU 90MB18E0-M0EAY0
Product Description:ASUS ROG MAXIMUS Z690 HERO - motherboard - ATX - LGA1700 Socket - Z690
Product Type:Motherboard - ATX
Chipset Type:Intel Z690
Processor Socket:1 x LGA1700 Socket
Max RAM Size:128 GB
RAM Supported:4 DIMM slots - DDR5, non-ECC, unbuffered
Storage Ports:6 x SATA-600 (RAID), 5 x M.2
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Product Type:Motherboard - ATX
Chipset Type:Intel Z690
Processor Socket:LGA1700 Socket
Max Processors Qty:1
Supported RAM
Max Size:128 GB
Technology:DDR5
Bus Clock:5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.)
Supported RAM Integrity Check:Non-ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture
Audio
Type:HD Audio (8-channel)
Audio Codec:SupremeFX (ALC4082)
Compliant Standards:High Definition Audio, DTS Sound Unbound
LAN
Network Interfaces:2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode)
Storage Interfaces:SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
RAID Features:Intel Rapid Storage Technology
Interfaces:2 x Thunderbolt 4/DisplayPort/USB4 ¦ 1 x HDMI ¦ 2 x Thunderbolt 4/USB4 ¦ 6 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 2 x USB 2.0 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 1 x audio line-in - mini-jack
Internal Interfaces:4 x USB 2.0 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header
Power Connectors:24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors
Features
BIOS Type:AMI
BIOS Features:BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up:Wake on LAN (WOL), wake on PME
Hardware Features:Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS ROG Extreme OC, SupremeFX Shielding technology, ASUS DIGI+ Power Control, Gold Plated Audio Hardware, Clear CMOS Button, LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, Armoury Crate, ESS 9018 SABRE HiFi DAC, FlexKey button, ASUS ProCool II, GameFirst VI, ASUS HYDRANODE, M.2 Q-Latch, SafeDIMM
Miscellaneous
Included Accessories:ROG fan stickers, 2 x M.2 screws, RGB (RGBW) LED strip extension cable, ROG thank you card, Q-Connector, ROG key chain, 1 x M.2 rubber package, USB drive, ARGB LED strip extension cable, graphics card holder
Cables Included:4 x Serial ATA cable
Software Included:Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, WinRAR, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 year licence), MemTest86, ASUS AURA Creator, AIDA64 Extreme (1 year licence)
Width:30.5 cm
Depth:24.4 cm
Manufacturer Warranty
Service & Support:Limited warranty - 3 years
vis mere
The ROG Maximus Z690 Hero is a quintessential strand of the Republic of Gamers DNA, replete with high-octane components to satisfy users who seek an introduction to the enthusiast-grade Maximus line. Its arsenal of cooling, power delivery and connectivity stands ready to handle whatever. And with its animated Polymo lighting display on the I/O cover that dazzles with vibrant RGB logos and patterns, the ROG Maximus Z690 Hero has the looks to match its leverage.
  • Intelligent motherboard
  • Outstanding performance
  • Advanced cooling
  • Flexible tools
