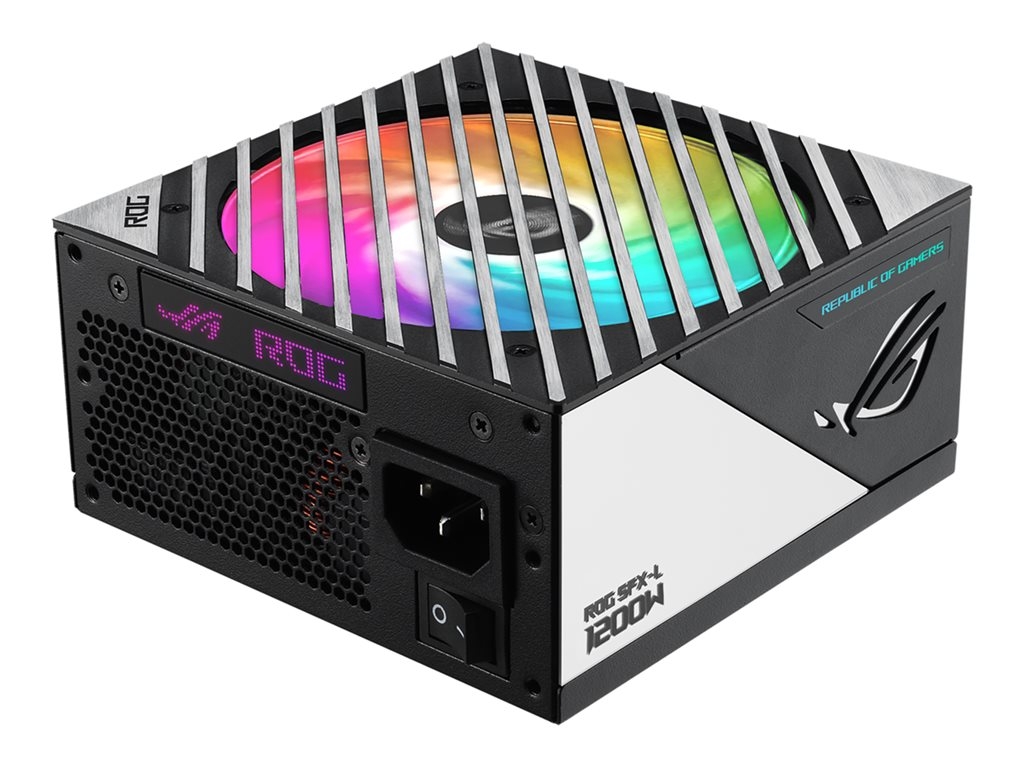

ASUS ROG Loki SFX-L - power supply - 1200 Watt

SKU 90YE00N0-B0NA00
Product Description:ASUS ROG Loki SFX-L - power supply - 1200 Watt
Device Type:Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:ATX 3.0 / SFX-L
80 PLUS Certification:80 PLUS Titanium
Weight:2.15 kg
Input Voltage:AC 100-240 V
Output Voltage:+3.3, +5, ±12 V
19-01-2025
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:ATX 3.0 / SFX-L
PSU Form Factor:SFX-L
Power Device
Input Voltage:AC 100-240 V
Power Output Connectors Details:1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power ¦ 6 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power
Output Voltage:+3.3, +5, ±12 V
Power Capacity:1200 Watt
Output Current:+3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 100 A ¦ -12V - 0.8 A ¦ +5VSB - 2.5 A
Modular Cable Management:Yes
80 PLUS Certification:80 PLUS Titanium
Miscellaneous
Included Accessories:SFX to ATX bracket
Cables Included:AC input cable - external ¦ Power 24 pin ATX modular cable 45 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 55 cm ¦ 2 x 16-pin 12VHPWR power cable 45 cm ¦ 16-pin 12VHPWR to 2x8 pin PCI Express power adapter 45 cm ¦ 2 x 3x Serial ATA modular cable ¦ ARGB sync cable 80 cm ¦ 4 pin internal power cable
Cooling System:120 mm fan
Features:Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ASUS Aura Sync, ROG heatsink, ARGB fan
Compliant Standards:RoHS
Manufacturer Warranty
Service & Support:Limited warranty - 10 years ¦ Limited warranty - RGB LEDs - 3 years
Dimensions & Weight
Width:12.5 cm
Depth:12.5 cm
Height:6.35 cm
Weight:2.15 kg
vis mere
Taking after the ROG Thor, the ROG Loki SFX-L 1000W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
  • ROG heatsinks
  • Axial-tech fan design
  • Dual ball fan bearings
  • 0 dB technology
  • 80 PLUS platinum certified
  • ATX 3.0 compatible
  • ARGB-illuminated fan and Aura Sync




The technical details come from 3rd party. edgemo is not responsible for any errors.
