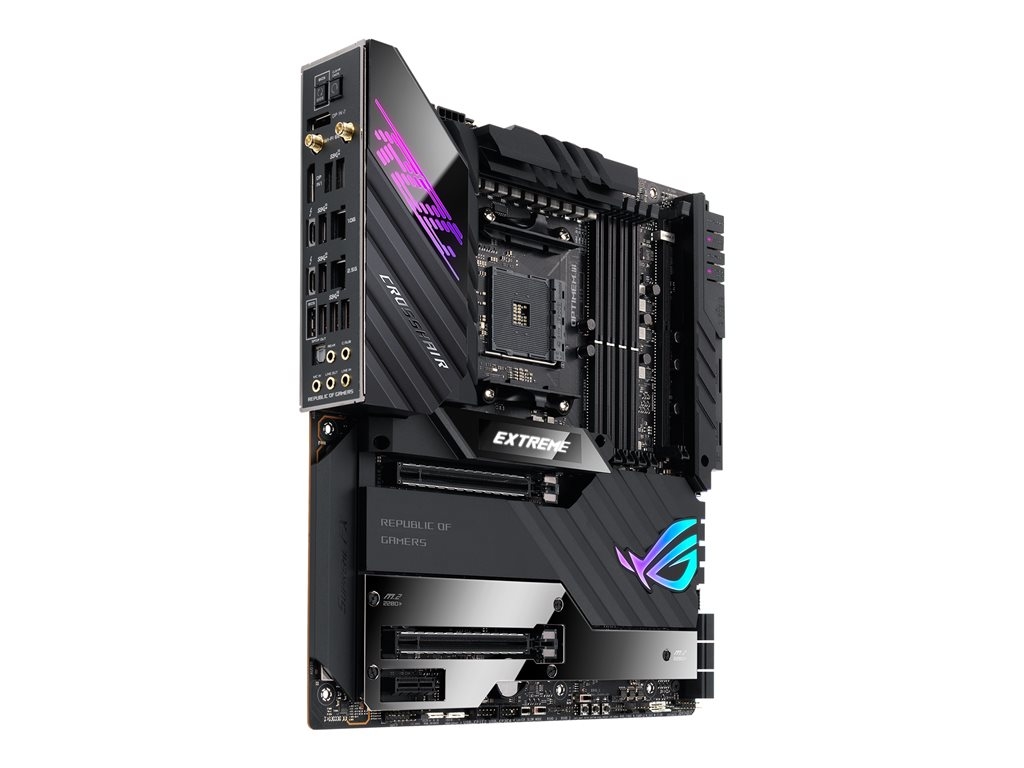

Printers & POSASUS ROG CROSSHAIR VIII EXTREME - motherboard - extended ATX - Socket AM4 - AMD X570
SKU 90MB1860-M0EAY0
| Product Description: | ASUS ROG CROSSHAIR VIII EXTREME - motherboard - extended ATX - Socket AM4 - AMD X570 |
| Product Type: | Motherboard - extended ATX |
| Chipset Type: | AMD X570 |
| Processor Socket: | 1 x Socket AM4 |
| Compatible Processors: | Ryzen (supports Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4 unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - extended ATX |
| Chipset Type: | AMD X570 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 5000 MHz (O.C.), 5100 MHz (O.C.) |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | SupremeFX (ALC4082) |
| Compliant Standards: | High Definition Audio, DTS Sound Unbound |
| LAN | |
| Network Controller: | Intel I225-V / AQtion AQC113CS |
| Network Interfaces: | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 2 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x DIMM.2 - 2 devices |
| Interfaces: | 1 x LAN (10Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x Thunderbolt 4/DisplayPort/USB4 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x TOSLINK ¦ 8 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x DisplayPort input |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 1 x USB-C Gen2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 1 x audio - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | BIOS FlashBack, UEFI BIOS |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | ASUS OptiMem III, NVIDIA 2-way SLI Technology Support, audio jack detect technology, jack retasking, SupremeFX Shielding technology, ESS 9018 SABRE HiFi DAC, LED-illuminated audio jacks, Clear CMOS Button, FlexKey button, ProbeIt, ASUS ROG Extreme OC, ASUS Extreme Engine Digi+, ASUS EZ DIY, ASUS Q-Connector, ASUS Q-Design, LN2 Switch, M.2 Q-Latch, MicroFine Alloy Chokes, Q-Code, Q-DIMM, Q-LED, Q-Slot, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, ASUS Aura Sync, DualBIOS, Status OLED, ASUS HYDRANODE, Sonic Studio III, Sonic Radar III, Armoury Crate, ASUS DIGI+ Power Control, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert 4, ASUS TPU (TurboV Processing Unit), Dual Intelligent Processors 5, CrashFree BIOS 3, Preboot eXecution Environment (PXE) |
| Miscellaneous | |
| Included Accessories: | 1 to 3 ARGB LED splitter cable, 1 to 4 fan splitter cable, RGB Addressable LED extension cable, 3 thermistor cables, ROG Fan Controller, DIMM.2 extension card, 4 x M.2 screws, ASUS Wi-Fi moving aerial, ROG CLAVIS DAC, thermal pad for M.2 SSD, Q-Connector, ROG key chain, graphics card holder, ROG logo plate sticker, screwdriver, ROG fan stickers, ROG thank you card, USB drive |
| Cables Included: | 3 x Serial ATA cable ¦ External fan power adapter cable |
| Software Included: | ASUS ROG RAMCache III, ROG CPU-Z, ROG GameFirst VI, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 year licence), AIDA64 Extreme (1 year licence), ASUS AURA Creator, ASUS AI Suite III, ASUS Turbo App, DAEMON Tools, WinRAR, ASUS EZ Flash 3 |
| Width: | 30.5 cm |
| Depth: | 27.7 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
- Comprehensive thermal design
- Robust power delivery
- High-performance connectivity
- Perfect gaming audio
- Unmatched personalization
