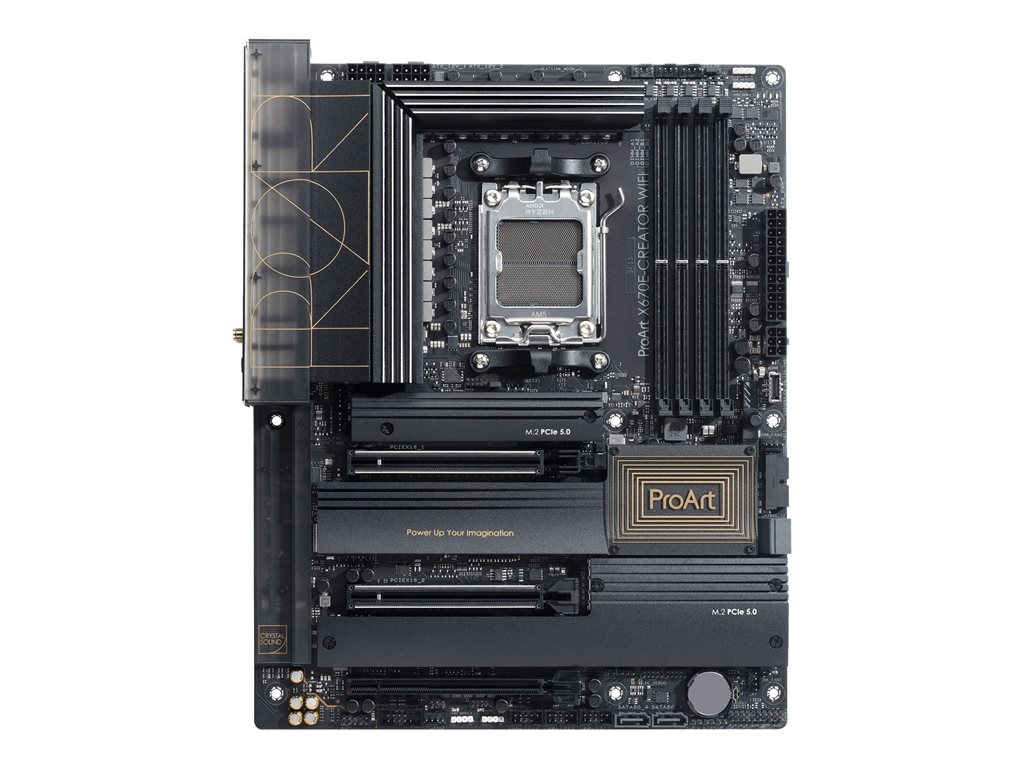

ASUS ProArt X670E-Creator WiFi - motherboard - ATX - Socket AM5 - AMD X670E

SKU 90MB1B90-M0EAY0
Product Description:ASUS ProArt X670E-Creator WiFi - motherboard - ATX - Socket AM5 - AMD X670E
Product Type:Motherboard - ATX
Chipset Type:AMD X670E
Processor Socket:1 x Socket AM5
Compatible Processors:Ryzen (supports Ryzen 7000 Series)
Max RAM Size:192 GB
RAM Supported:4 DIMM slots - DDR5, non-ECC, ECC, on-die ECC, unbuffered
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Product Type:Motherboard - ATX
Chipset Type:AMD X670E
Processor Socket:Socket AM5
Max Processors Qty:1
Compatible Processors:Ryzen (supports Ryzen 7000 Series)
Supported RAM
Max Size:192 GB
Technology:DDR5
Bus Clock:4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)
Supported RAM Integrity Check:Non-ECC, ECC, on-die ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, AMD EXPO technology
Audio
Type:HD Audio (8-channel)
Audio Codec:Realtek ALCS1220A
Compliant Standards:High Definition Audio
LAN
Network Interfaces:2.5 Gigabit Ethernet, 10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 4.0 x16 (x2 mode) ¦ 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
RAID Features:AMD RAID Xpert2 Technology
Interfaces:1 x DisplayPort input ¦ 1 x HDMI ¦ 2 x USB4/DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 7 x USB 3.2 Gen 2 ¦ 1 x USB 2.0 ¦ 2 x aerial ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces:6 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header
Power Connectors:24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector
Features
BIOS Type:AMI
BIOS Features:UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up:Wake on LAN (WOL), wake on PME
Hardware Features:ASUS OptiMem II, Preboot eXecution Environment (PXE), LANGuard, audio jack detect technology, jack retasking, BIOS FlashBack button, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ESD Guards, overvoltage protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, PCIe Slot Q-Release, ASUS Q-Connector, M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack LED, pre-mounted I/O shield, ASUS ProCool, ASUS SafeDIMM, ASUS Aura Sync, overcurrent protection, Quick Charge 4+, ASUS TPU (TurboV Processing Unit), FlexKey button, CrashFree BIOS 3, 16+2 Phase Power Design, 70A Power Stage, Water Pump Header, DIY Friendly Design, ASUS Enhanced Memory Profile (AEMP)
Miscellaneous
Included Accessories:ASUS Wi-Fi moving aerial, Q-Connector, M.2 backplate Q-Latch, 2 x M.2 rubber package, M.2 screw package, ASUS ProArt ruler, ACC Express Activation Key Card
Cables Included:4 x Serial ATA cable ¦ 1 x DisplayPort cable
Software Included:Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, ASUS CPU-Z, ASUS Control Center Express, CreationFirst, MyAsus, Norton AntiVirus (Trial), ASUS ProArt Creator Hub, WinRAR
Compliant Standards:DisplayPort 1.4, FCC Part 15 Class B, VCCI Class B, JATE, EU RoHS
Width:30.5 cm
Depth:24.4 cm
vis mere
The ProArt X670E-Creator WiFi empowers creators of all levels by maximizing the performance of the AMD Ryzen 7000 Series processors with 16 + 2 team power stages, DDR5 and PCIe 5.0 and lightning-fast connectivity including USB4, 10 Gb and 2.5 Gb Ethernet, plus Wi-Fi 6E.
It manifests a professional, elegant and precise vision for content creators of all kinds with a style elevated infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
  • Dual USB4 connectivity
  • Wi-Fi 6E technology
  • 10 Gb and 2.5 Gb Ethernet
  • PCIe 5.0 support
  • Quick charging your USB devices
  • Robust power design
  • AI Overclocking
  • Dynamic OC switcher
  • Ryzen Core Flex
  • PBO enhancement
  • DDR5 strength
  • Self-adaptive fan tuning
  • Two-way AI noise cancelation
  • Trusted stability




The technical details come from 3rd party. edgemo is not responsible for any errors.
