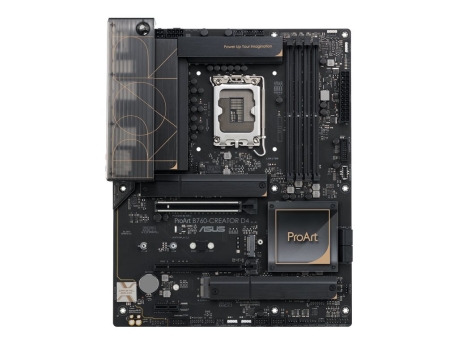

ASUS ProArt B760-CREATOR D4 - motherboard - ATX - LGA1700 Socket - B760

SKU PROART B760-CREATOR D4

Product Description:	ASUS ProArt B760-CREATOR D4 - motherboard - ATX - LGA1700 Socket - B760
Product Type:	Motherboard - ATX
Chipset Type:	Intel B760
Processor Socket:	1 x LGA1700 Socket
Compatible Processors:	(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size:	128 GB
RAM Supported:	4 DIMM slots - DDR4, non-ECC, unbuffered

27-10-2024

Specifications
Description
Accessories

General
Product Type:	Motherboard - ATX
Chipset Type:	Intel B760
Processor Socket:	LGA1700 Socket
Max Processors Qty:	1
Compatible Processors:	(supports 12th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM
Max Size:	128 GB
Technology:	DDR4
Supported RAM Integrity Check:	Non-ECC
Registered or Buffered:	Unbuffered
Features:	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio
Type:	HD Audio (8-channel)
Compliant Standards:	High Definition Audio

LAN
Network Interfaces:	Gigabit Ethernet, 2.5 Gigabit Ethernet

Expansion / Connectivity
Expansion Slots:	1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 3 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (for WLAN)
Storage Interfaces:	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2
RAID Features:	Intel Rapid Storage Technology
Interfaces:	1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (front surround) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK
Internal Interfaces:	4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x Thunderbolt - header
Power Connectors:	24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector

Features
BIOS Features:	UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up:	Wake on LAN (WOL), wake on PME
Hardware Features:	Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, ASUS OptiMem II, LANGuard, ASUS DIGI+ VRM, ASUS Aura Sync, ASUS Enhanced DRAM Overcurrent Protection, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Connector, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ESD Guards, M.2 Q-Latch, pre-mounted I/O shield, Q-DIMM, Q-LED, Q-Slot, VRM heatsink design, CrashFree BIOS 3, Preboot eXecution Environment (PXE), 20+1 Phase Power Design, 50A Power Stage, Windows 11 compatible, ASUS Crystal Sound 3, Water Pump Header, DIY Friendly Design

Miscellaneous
Included Accessories:	2 x M.2 rubber package, 1 x M.2 screw, ASUS ProArt ruler, Q-Connector, ACC Express Activation Key Card
Cables Included:	2 x Serial ATA cable
Software Included:	Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS CPU-Z, ASUS Control Center Express, ASUS ProArt Creator Hub, CreationFirst, Norton 360 Deluxe (60 days trial), WinRAR
Compliant Standards:	DisplayPort 1.4
Width:	30.5 cm
Depth:	24.4 cm

vis mere

ProArt B760-Creator D4 is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of the Intel Core processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C front-panel connector and a Thunderbolt 4 header.

PCIe 5.0 for graphics cards
Front USB 3.2 Gen 2x2 Type-C
Thunderbolt/USB4 support
Dual Ethernet
PCIe 4.0 M.2 storage
12 + 1 teamed power stages
Chokes and capacitors
Digi+ power control
ProCool power connectors
DDR4 memory
Two-way AI noise cancelation
Trusted stability
