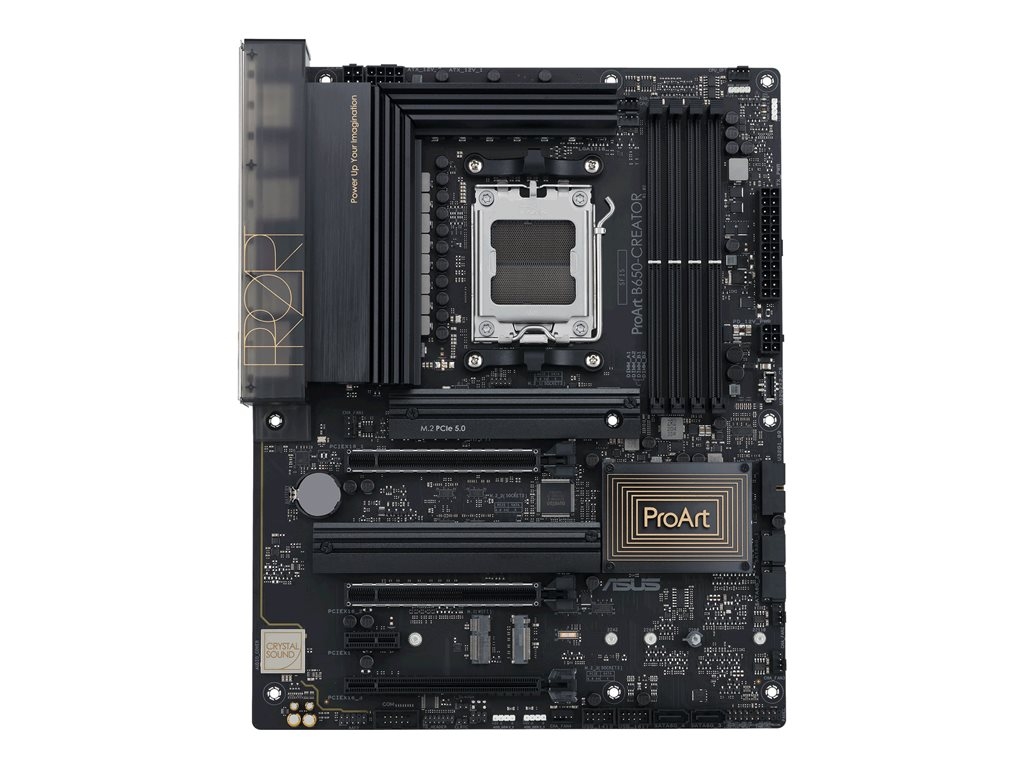

Printers & POSASUS ProArt B650-CREATOR - motherboard - ATX - Socket AM5 - AMD B650
SKU 90MB1C40-M0EAY0
| Product Description: | ASUS ProArt B650-CREATOR - motherboard - ATX - Socket AM5 - AMD B650 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B650 |
| Processor Socket: | 1 x Socket AM5 |
| Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR5, non-ECC, ECC, on-die ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B650 |
| Processor Socket: | Socket AM5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR5 |
| Bus Clock: | 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz, 5000 MHz |
| Supported RAM Integrity Check: | Non-ECC, ECC, on-die ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, AMD EXPO technology |
| Audio | |
| Type: | HD Audio (8-channel) |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| RAID Features: | AMD RAID Xpert2 Technology |
| Interfaces: | 1 x HDMI ¦ 1 x USB-C Gen2/DisplayPort ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x USB-C 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x DisplayPort input ¦ 1 x SPDIF out |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector, 6-pin PCI Express power connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Jack retasking, ASUS Q-Design, 12+2 Phase Power Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, overvoltage protection, ASUS SafeSlot, ASUS 5X Protection III, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, DIY Friendly Design, M.2 Q-Latch, Quick Charge 4+, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS Enhanced Memory Profile (AEMP), 60A Power Stage |
| Miscellaneous | |
| Included Accessories: | Q-Connector, 1 x M.2 rubber package, ACC Express Activation Key Card, 2 x M.2 screw package |
| Cables Included: | 2 x Serial ATA cable ¦ 1 x DisplayPort cable |
| Software Included: | ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, ASUS ProArt Creator Hub, Norton AntiVirus (Trial), ASUS AURA Creator, ASUS Control Center Express, CreationFirst, Armoury Crate, ASUS Fan Xpert 4 |
| Compliant Standards: | VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
ProArt B650-Creator is an advanced motherboard designed for intensive content-creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of AMD Ryzen 7000 Series processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C front-panel connector with Quick Charge 4+, and DisplayPort via USB-C.
- USB-C DisplayPort (DP Alt Mode)
- Multi-card support
- PCIe 5.0 M.2 storage
- 12 + 2 teamed power stages
- Digi+ power control
- ProCool power connectors
- Chokes and capacitors
- Performance boost
- DDR5 strength
- ASUS Enhanced Memory Profile (AEMP)
- Two-way AI noise cancelation
- Trusted stability
