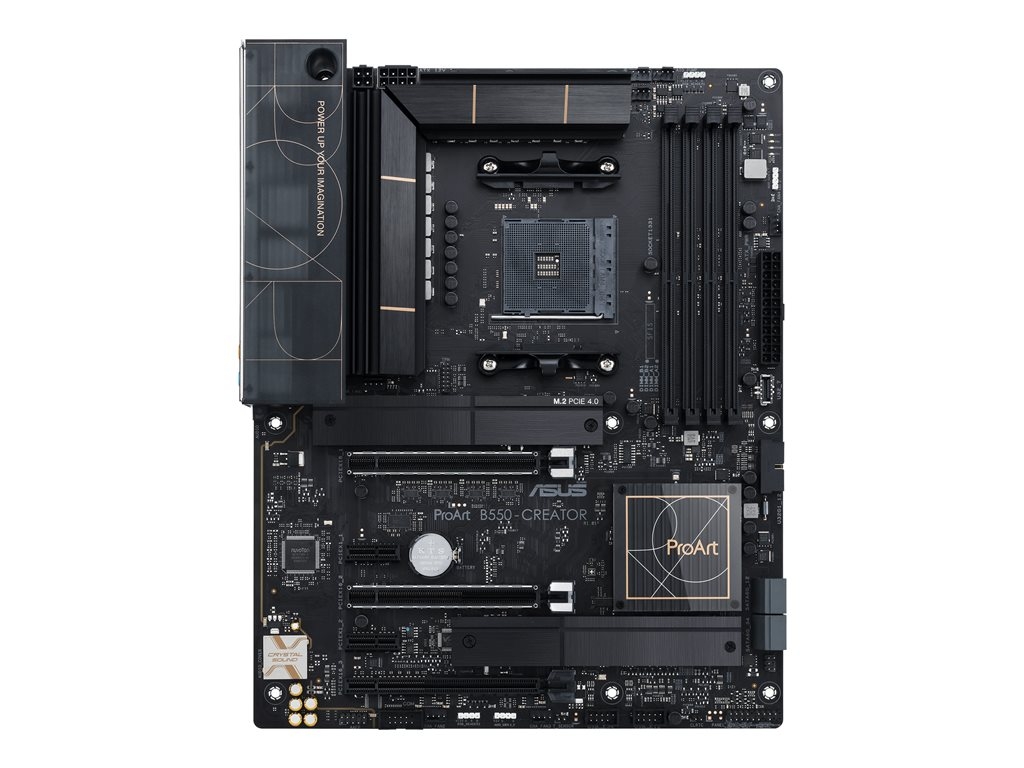

ASUS ProArt B550-CREATOR - motherboard - ATX - Socket AM4 - AMD B550

SKU 90MB17L0-M0EAY0

Product Description:	ASUS ProArt B550-CREATOR - motherboard - ATX - Socket AM4 - AMD B550
Product Type:	Motherboard - ATX
Chipset Type:	AMD B550
Processor Socket:	1 x Socket AM4
Compatible Processors:	Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series)
Max RAM Size:	128 GB
RAM Supported:	4 DIMM slots - DDR4, non-ECC, ECC, unbuffered

27-12-2024

General
Product Type:	Motherboard - ATX
Chipset Type:	AMD B550
Processor Socket:	Socket AM4
Max Processors Qty:	1
Compatible Processors:	Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series)

Supported RAM
Max Size:	128 GB
Technology:	DDR4
Bus Clock:	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 4466 MHz (O.C.), 5100 MHz (O.C.)
Supported RAM Integrity Check:	Non-ECC, ECC
Registered or Buffered:	Unbuffered
Features:	Dual channel memory architecture

Expansion / Connectivity
Expansion Slots:	1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1
Storage Interfaces:	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces:	2 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 2.0 ¦ 4 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x DisplayPort input ¦ 1 x HDMI ¦ 2 x Thunderbolt 4/USB-C Gen2 ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces:	4 x USB 2.0 - header ¦ 1 x USB-C Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x speaker - header ¦ 1 x audio - header ¦ 1 x serial - header
Power Connectors:	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector

Features
BIOS Type:	AMI
BIOS Features:	BIOS FlashBack, UEFI BIOS
Hardware Features:	Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, anti-pop function, LANGuard, ASUS Overvoltage Protection, ASUS Fan Xpert 4, ASUS 5X Protection III, ASUS SafeSlot Core, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, FlexKey button, ASUS ProCool II, 5K Black Metallic Capacitors

Miscellaneous
Included Accessories:	1 x M.2 rubber package, M.2 Q-Latch
Cables Included:	2 x Serial ATA cable ¦ 1 x DisplayPort cable
Software Included:	ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, Antivirus (Trial version), ASUS EZ Update, ASUS Turbo App, DAEMON Tools, WinRAR, ASUS ProArt Creator Hub, ASUS AURA Creator, ASUS Control Center Express
Compliant Standards:	DisplayPort 1.4
Width:	30.5 cm
Depth:	24.4 cm

AM4 socket: ready for AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series desktop processors
Powerful I/O: dual Thunderbolt 4 Type-C ports, dual 2.5G onboard Ethernet, USB 3.2 Gen 2 plus HDMI 2.1 and DisplayPort 1.2 output
Unthrottled performance: PCI 4.0-ready, 12+2 power stages with high-quality alloy chokes and durable capacitors
Advanced security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
ProArt gives you more: two-way AI noise cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
Trusted stability: tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot for enhanced durability
