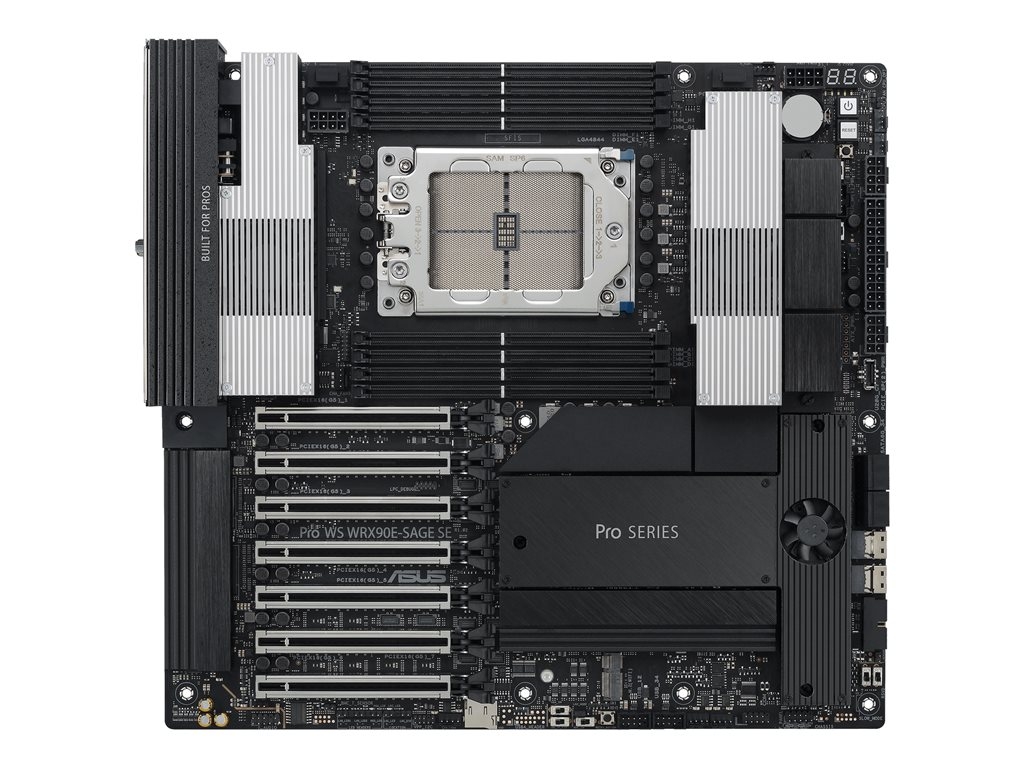

Printers & POSASUS PRO WS WRX90E-SAGE SE - motherboard - SSI EEB AST2600 - Socket sTR5 - AMD WRX90
SKU 90MB1FW0-M0EAY0
| Product Description: | ASUS PRO WS WRX90E-SAGE SE - motherboard - SSI EEB AST2600 - Socket sTR5 - AMD WRX90 |
| Product Type: | Motherboard - SSI EEB |
| Processor: | AST2600 |
| Chipset Type: | AMD WRX90 |
| Processor Socket: | 1 x Socket sTR5 |
| Compatible Processors: | (supports Ryzen Threadripper PRO 7000WX Series/ 7000 Series) |
| RAM Supported: | 8 DIMM slots - DDR5, ECC, registered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - SSI EEB |
| Processor: | AST2600 |
| Chipset Type: | AMD WRX90 |
| Processor Socket: | Socket sTR5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports Ryzen Threadripper PRO 7000WX Series/ 7000 Series) |
| Supported RAM | |
| Technology: | DDR5 |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered |
| Features: | Quad channel memory architecture |
| Audio | |
| Type: | HD Audio (6-channel) |
| Audio Codec: | Realtek ALC1220P |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 6 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x16 (x8 mode) ¦ 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 4 x M.2 ¦ PCIe 4.0 -connectors: 2 x SlimSAS |
| Interfaces: | 1 x VGA ¦ 2 x Mini DisplayPort ¦ 6 x USB 3.2 Gen 2 ¦ 2 x USB4 ¦ 1 x USB 2.0 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 2 x 8-pin PCI Express power connector, 2 x 8-pin PCI Express to CPU power connector |
| Features | |
| BIOS Features: | UEFI BIOS |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | 32+3+3+3 Phase Power Design, LANGuard, ASUS EZ DIY, CrashFree BIOS 3, ASUS 5X Protection III, ASUS DIGI+ VRM, ESD Guards, overvoltage protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-Code, Q-Connector, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink backplate, M.2 heatsink, steel backplate, VRM heatsink with fan, BIOS FlashBack button, BIOS FlashBack LED, Clear CMOS Button, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeDIMM, overcurrent protection |
| Miscellaneous | |
| Included Accessories: | Thermistor cable, Q-Connector, M.2 Q-Latch, AMI licence sticker, 4 x M.2 rubber package, M.2 Key E screw package |
| Cables Included: | 4 x Serial ATA cable ¦ 2x 8-pin PCIe to single 8-pin CPU convertor ¦ 1 x 24-pin power cable (Y-cable) ¦ 2 x Mini DisplayPort cable |
| Software Included: | Armoury Crate, ASUS Fan Xpert 4, ASUS CPU-Z, Adobe Creative Cloud (free trial), Norton 360 Deluxe (60 days trial), WinRAR (40 days trial), ASUS Control Center Express |
| Width: | 30.5 cm |
| Depth: | 33 cm |
The AMD sTR5 EEB workstation motherboard features 7 PCIe 5.0 x16 slots, with support for multi-GPU. It has a robust power-stage design of 32+3+3+3, making it ready for CPU and memory overclocking. The motherboard also offers 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, and a PCIe Q-Release slim.
- AMD sTR5 socket supports up to 96-core CPUs
- Ultrafast connectivity
- Robust power and thermal design
- PCIe Q-release slim
- Trusted stability
