Printers & POSASUS Pro WS WRX80E-SAGE SE WIFI - motherboard - extended ATX - Socket sWRX8 - AMD WRX80
SKU 90MB1590-M0EAY0

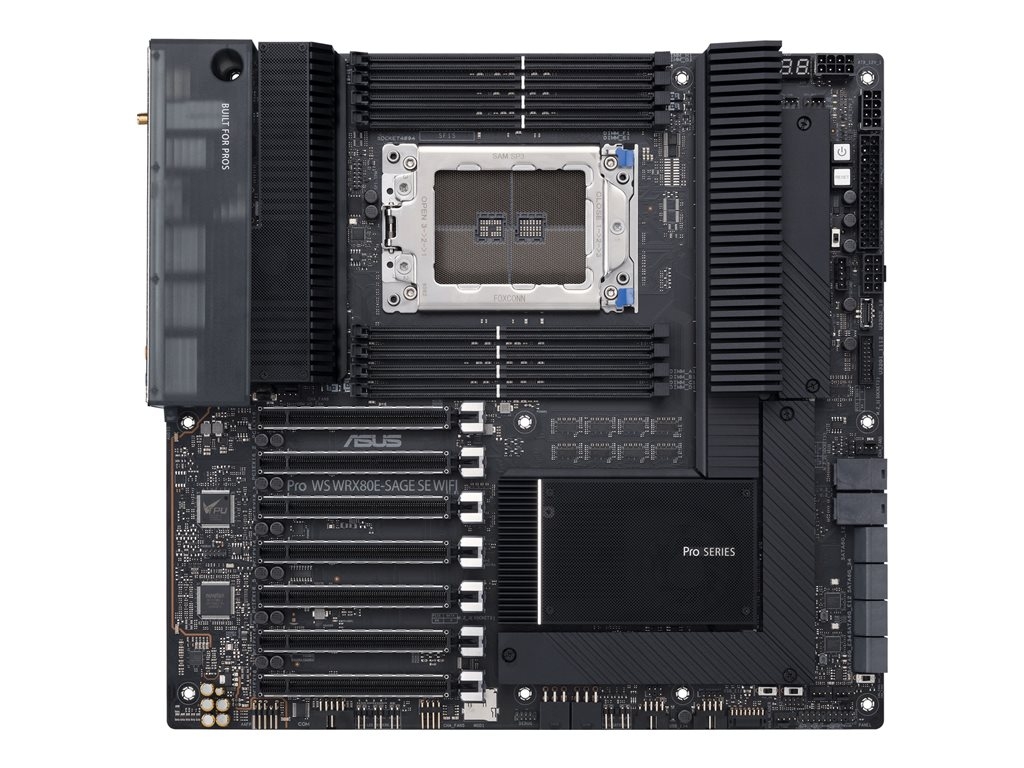

| Product Description: | ASUS Pro WS WRX80E-SAGE SE WIFI - motherboard - extended ATX - Socket sWRX8 - AMD WRX80 |
| Product Type: | Motherboard - extended ATX |
| Chipset Type: | AMD WRX80 |
| Processor Socket: | 1 x Socket sWRX8 |
| Compatible Processors: | Ryzen ThreadRipper PRO |
| Max RAM Size: | 2 TB |
| RAM Supported: | 8 DIMM slots - DDR4, non-ECC, ECC, registered, unbuffered, 3DS registered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - extended ATX |
| Chipset Type: | AMD WRX80 |
| Processor Socket: | Socket sWRX8 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen ThreadRipper PRO |
| Supported RAM | |
| Max Size: | 2 TB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Registered or Buffered: | Registered, unbuffered, 3DS registered |
| Features: | 8-channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC4080 |
| Compliant Standards: | High Definition Audio, DTS:X Ultra |
| LAN | |
| Network Controller: | Intel X550-AT2 / Intel AX 200 |
| Network Interfaces: | 2 x 10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 7 x PCIe 4.0 x16 |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID ¦ ASMedia ASM1061: SATA-600 -connectors: 4 x 7pin Serial ATA - RAID ¦ SATA-600 / PCIe 4.0 -connectors: 3 x M.2 - RAID ¦ SATA-600 / PCIe -connectors: 2 x U.2 |
| Interfaces: | 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C Gen2x2 ¦ 8 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (rear) - mini-jack |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 1 x USB-C Gen2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x VGA - header ¦ 1 x serial - header ¦ 1 x SPI - header |
| Power Connectors: | 2 x 8-pin ATX12V connectors, 24-pin main power connector, 2 x 6-pin PCI Express power connectors, 8-pin PCI Express power connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, BIOS FlashBack |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | NVIDIA 2-way SLI Technology Support, NVIDIA 3-way SLI Technology Support, NVIDIA 4-way SLI Technology Support, LANGuard, audio jack detect technology, jack retasking, Clear CMOS Button, ASUS Q-Design, Q-DIMM, ASUS Q-Connector, Q-Code, Q-LED, Q-Slot, ASUS EZ DIY, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, overcurrent protection, ASMB9-iKVM, Armoury Crate, Turbo LAN, CrashFree BIOS 3, ASUS Crystal Sound 3 |
| Miscellaneous | |
| Included Accessories: | ASUS Wi-Fi moving aerial, Hyper M.2 x16 Gen 4 card, 3 x M.2 rubber package, 3 x M.2 screws, Q-Connector |
| Cables Included: | 6 x Serial ATA cable ¦ 1 x VGA cable |
| Software Included: | Drivers & Utilities, ASUS CPU-Z, ASUS AI Charger, DAEMON Tools, Norton AntiVirus (Trial), WinRAR, ASUS EZ Flash 3 |
| Width: | 30.98 cm |
| Depth: | 33.02 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
ASUS Pro WS WRX80E-SAGE SE WIFI is engineered to unleash the incredible power of the AMD Ryzen Threadripper Pro series processor and is a reliable foundation for professional creative workloads that benefit from multi-core CPUs, such as video editing and 3D rendering. Additionally, seven PCIe 4.0 slots with SafeSlot fortification deliver exceptional performance with the latest high-power graphics cards.
- AMD sWRX8 socket: ready for AMD Ryzen Threadripper PRO Series processors
- Ultra-fast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel X550-AT2 dual 10Gb Ethernet
- BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency
- Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support
- Trusted stability: tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security
The technical details come from 3rd party. edgemo is not responsible for any errors.
