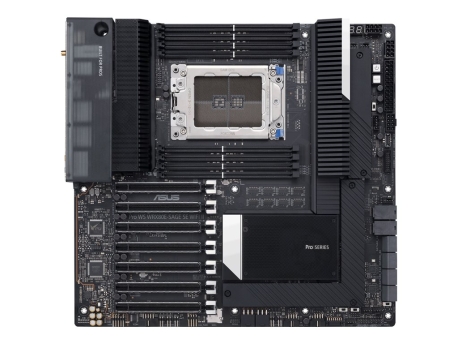

Printers & POSASUS Pro WS WRX80E-SAGE SE WIFI II - motherboard - extended ATX / SSI EEB - Socket sWRX8 - AMD WRX80
SKU 90MB1E60-M0EAY0
| Product Description: | ASUS Pro WS WRX80E-SAGE SE WIFI II - motherboard - extended ATX / SSI EEB - Socket sWRX8 - AMD WRX80 |
| Product Type: | Motherboard - extended ATX / SSI EEB |
| Chipset Type: | AMD WRX80 |
| Processor Socket: | 1 x Socket sWRX8 |
| Compatible Processors: | Ryzen ThreadRipper PRO |
| Max RAM Size: | 2048 GB |
| RAM Supported: | 8 DIMM slots - DDR4, non-ECC, ECC, registered, unbuffered, Load-Reduced |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - extended ATX / SSI EEB |
| Chipset Type: | AMD WRX80 |
| Processor Socket: | Socket sWRX8 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen ThreadRipper PRO |
| Supported RAM | |
| Max Size: | 2048 GB |
| Technology: | DDR4 |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Registered or Buffered: | Registered, unbuffered, Load-Reduced |
| Features: | 8-channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC4080 |
| Compliant Standards: | High Definition Audio, DTS:X Ultra |
| LAN | |
| Network Controller: | Intel X550-AT2 |
| Network Interfaces: | 2 x 10 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 7 x PCIe 4.0 x16 ¦ 3 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID ¦ ASMedia ASM1061: SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 4.0 -connectors: 3 x M.2 ¦ SATA-600 / PCIe -connectors: 2 x U.2 |
| Interfaces: | 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C 3.2 Gen2x2 ¦ 8 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x SPDIF out ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x aerial |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x VGA - header ¦ 1 x serial - header ¦ 1 x SPI - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 2 x 6-pin PCI Express power connectors, 8-pin PCI Express power connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | IPMI support, BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, NVIDIA 3-way SLI Technology Support, NVIDIA 2-way SLI Technology Support, 16 Phase Power Design, NVIDIA 4-way SLI Technology Support, Q-Code, Preboot eXecution Environment (PXE), Clear CMOS Button, overcurrent protection, Turbo LAN, ASUS SafeSlot, M.2 heatsink, pre-mounted I/O shield, ASMB9-iKVM, BMC remote management, DIY Friendly Design, ASUS ProCool II, Windows 11 compatible, BIOS FlashBack button, BIOS FlashBack LED, VRM heatsink with fan, aluminium backplate, M.2 chipset fan |
| Miscellaneous | |
| Included Accessories: | 4 x M.2 screws, Q-Connector, ASUS Wi-Fi moving aerial, Hyper M.2 x16 Gen 4 card, 3 x M.2 Q-Latch, 7 x M.2 rubber package |
| Cables Included: | 6 x Serial ATA cable ¦ 1 x VGA cable |
| Software Included: | Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, DAEMON Tools, WinRAR, Norton AntiVirus (Trial), Armoury Crate |
| Width: | 30.98 cm |
| Depth: | 33.02 cm |
The ASUS Pro WS WRX80E-SAGE SE WIFI II is engineered to unleash the incredible power of the AMD Ryzen Threadripper Pro series processors, with support for overclocking to dip into untapped potential and performance. This reliable multi-core CPU foundation is the ideal choice for professional creative workloads like video editing and 3D rendering. Additionally, seven PCIe 4.0 slots with SafeSlot fortification can deliver exceptional performance for the latest high-powered graphics cards and storage devices.
- AMD sWRX8 socket - ready for AMD Ryzen Threadripper PRO Series Processors, with overclocking available to dip into untapped potential and performance
- Ultrafast connectivity - USB 3.2 Gen 2x2 Type-C port, 10x USB 3.2 Gen 2 ports, 3x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel X550-AT2 dual 10Gb Ethernet, Wi-Fi 6E
- ASMB9-iKVM remote management - AST-2500 BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency
- Powerful performance - 16 power stages, multi-GPU support and R-DIMM memory support
- Trusted stability - tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security
