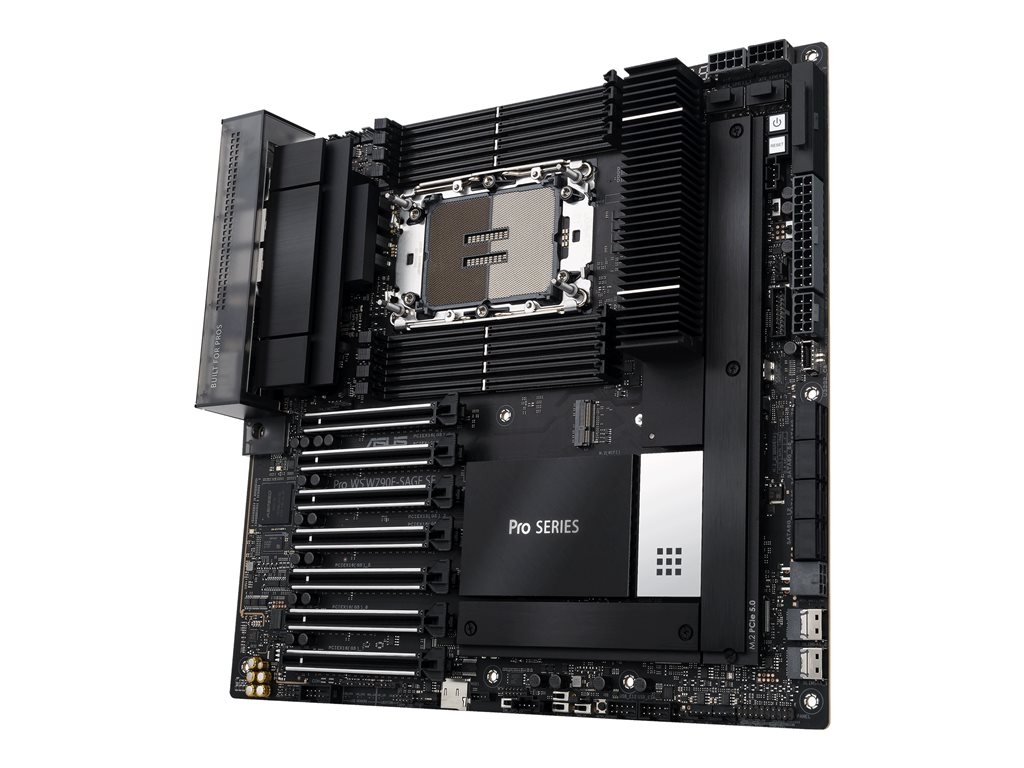

Printers & POSASUS PRO WS W790E-SAGE SE - motherboard - SSI EEB - LGA4677 Socket-E - W790
SKU 90MB1C20-M0EAY0
| Product Description: | ASUS PRO WS W790E-SAGE SE - motherboard - SSI EEB - LGA4677 Socket-E - W790 |
| Product Type: | Motherboard - SSI EEB |
| Chipset Type: | Intel W790 |
| Processor Socket: | 1 x LGA4677 Socket-E |
| Compatible Processors: | Xeon W |
| Max RAM Size: | 2048 GB |
| RAM Supported: | 8 DIMM slots - DDR5, ECC, registered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - SSI EEB |
| Chipset Type: | Intel W790 |
| Processor Socket: | LGA4677 Socket-E |
| Max Processors Qty: | 1 |
| Compatible Processors: | Xeon W |
| Supported RAM | |
| Max Size: | 2048 GB |
| Technology: | DDR5 |
| Bus Clock: | 4800 MHz, 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.) |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered |
| Features: | 8-channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALCS1220A |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | 10 Gigabit Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 6 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x16 (x8 mode) ¦ 4 x PCIe 5.0 x16 ¦ 2 x PCIe 4.0 x4 (SlimSAS) ¦ 3 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x SlimSAS ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces: | 1 x USB-C 3.2 Gen2x2 ¦ 4 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out ¦ 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x LAN (10Gigabit Ethernet) |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors: | 2 x 24-pin main power connectors, 4 x 8-pin ATX12V connectors, 8-pin PCI Express power connector, 6-pin PCI Express power connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Intel Turbo Boost Max Technology 3.0, Preboot eXecution Environment (PXE), CrashFree BIOS 3, ASUS EZ DIY, ASUS DIGI+ VRM, ESD Guards, ASUS Extreme Engine Digi+, FlexKey button, ReTry button, Safe boot button, Start button, 10K Black Metallic Capacitors, MicroFine Alloy Chokes, ASUS 5X Protection III, LANGuard, overvoltage protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, Q-Code, ASUS Q-Connector, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink backplate, M.2 heatsink, steel backplate, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeDIMM, overcurrent protection, Intel VROC support, Intel Volume Management Device (VMD), 14+1+1 Phase Power Design, BMC remote management, Enlarged Chipset Heatsink |
| Miscellaneous | |
| Included Accessories: | CPU guard for LGA 4677 E1A, CPU guard for LGA 4677 E1B, 1 x M.2 rubber package, Q-Connector, ACC Express Activation Key Card, M.2 Key E screw package, M.2 backplate rubber package, VRM fan holder, thermistor cable |
| Cables Included: | 4 x Serial ATA cable |
| Software Included: | ASUS Control Center Express, Armoury Crate, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, ASUS CPU-Z, Adobe Creative Cloud (free trial), Norton 360 Deluxe (60 days trial), WinRAR |
| Width: | 30.5 cm |
| Depth: | 33 cm |
The Pro WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W790 series melds no-compromise engineering with incredible aesthetics.
ASUS W790 motherboards go above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
ASUS W790 motherboards go above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
- Intel LGA 4677 socket - ready for Intel Xeon processors
- CPU and memory overclocking - supports for ECC R-DIMM DDR5 memory (1DPC)
- Ultrafast connectivity - 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C and 2 SlimSAS
- Robust power and thermal design - 14 + 1 + 1 power stages, 8-pin and 6-pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates
- Trusted stability - highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
The technical details come from 3rd party. edgemo is not responsible for any errors.
