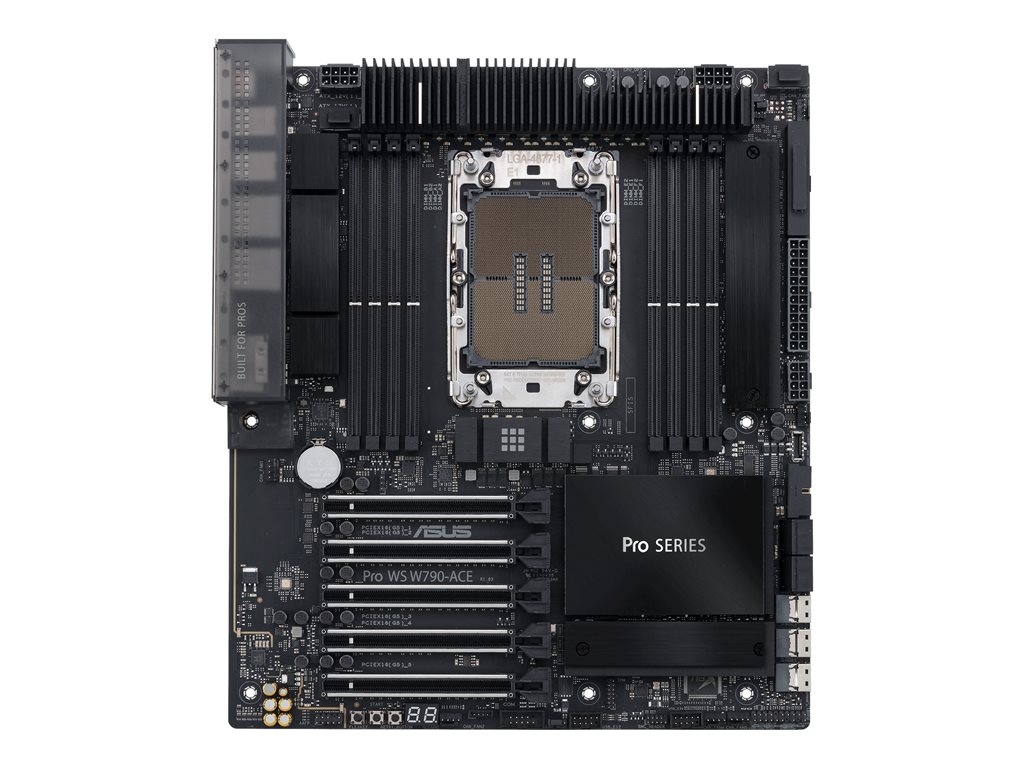

Printers & POSASUS PRO WS W790-ACE - motherboard - SSI CEB - LGA4677 Socket-E - W790
SKU 90MB1C70-M0EAY0
| Product Description: | ASUS PRO WS W790-ACE - motherboard - SSI CEB - LGA4677 Socket-E - W790 |
| Product Type: | Motherboard - SSI CEB |
| Chipset Type: | Intel W790 |
| Processor Socket: | 1 x LGA4677 Socket-E |
| Compatible Processors: | Xeon W |
| Max RAM Size: | 2048 GB |
| RAM Supported: | 8 DIMM slots - DDR5, ECC, registered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - SSI CEB |
| Chipset Type: | Intel W790 |
| Processor Socket: | LGA4677 Socket-E |
| Max Processors Qty: | 1 |
| Compatible Processors: | Xeon W |
| Supported RAM | |
| Max Size: | 2048 GB |
| Technology: | DDR5 |
| Bus Clock: | 4800 MHz, 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.) |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered |
| Features: | Quad channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALCS1220A |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 3 x PCIe 5.0 x16 ¦ 2 x PCIe 5.0 x16 (x8 mode) ¦ 1 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 1 x PCIe 3.0 x4 (SlimSAS) ¦ 2 x PCIe 4.0 x4 (SlimSAS) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x SlimSAS ¦ PCIe 3.0 -connectors: 2 x SlimSAS |
| Interfaces: | 1 x USB-C 3.2 Gen2x2 ¦ 4 x USB 3.2 Gen 2 ¦ 8 x USB 2.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (10Gigabit Ethernet) |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors: | 2 x 24-pin main power connectors, 4 x 8-pin ATX12V connectors, 8-pin PCI Express power connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Intel Turbo Boost Max Technology 3.0, 12+1+1 Phase Power Design, Preboot eXecution Environment (PXE), FlexKey button, ReTry button, Start button, ASUS 5X Protection III, ASUS DIGI+ VRM, ESD Guards, LANGuard, overvoltage protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, ASUS Q-Connector, Q-Code, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, M.2 heatsink backplate, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack LED, BIOS FlashBack button, Clear CMOS Button, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeDIMM, overcurrent protection, CrashFree BIOS 3, Intel VROC support, Intel Volume Management Device (VMD), Water Pump Header |
| Miscellaneous | |
| Included Accessories: | Q-Connector, 1 x M.2 rubber package, M.2 backplate rubber package, CPU guard for LGA 4677 E1A, CPU guard for LGA 4677 E1B, ACC Express Activation Key Card |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Armoury Crate, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, ASUS CPU-Z, ASUS Control Center Express, Adobe Creative Cloud (free trial), Norton 360 Deluxe (60 days trial), WinRAR |
| Width: | 30.5 cm |
| Depth: | 26.67 cm |
The PRP WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, PRO WS W790 series melds no-compromise engineering with incredible aesthetics. ASUS W790 motherboards go above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
- Intel LGA 4677 socket - ready for Intel Xeon processors
- CPU and memory overclocking - supports for ECC R-DIMM DDR5 memory
- Ultrafast connectivity - 5 PCIe 5.0 x16 slots, 10G and 2.5G LAN, 2 M.2, front and rear USB 3.2 Gen 2x2 Type-C and 3 SlimSAS
- Robust power and thermal design: 12 + 1 + 1 power stages, 8-pin PCIe power connector, Massive VRM, chipset and M.2 heatsinks and M.2 backplate
- Trusted stability - highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
The technical details come from 3rd party. edgemo is not responsible for any errors.
