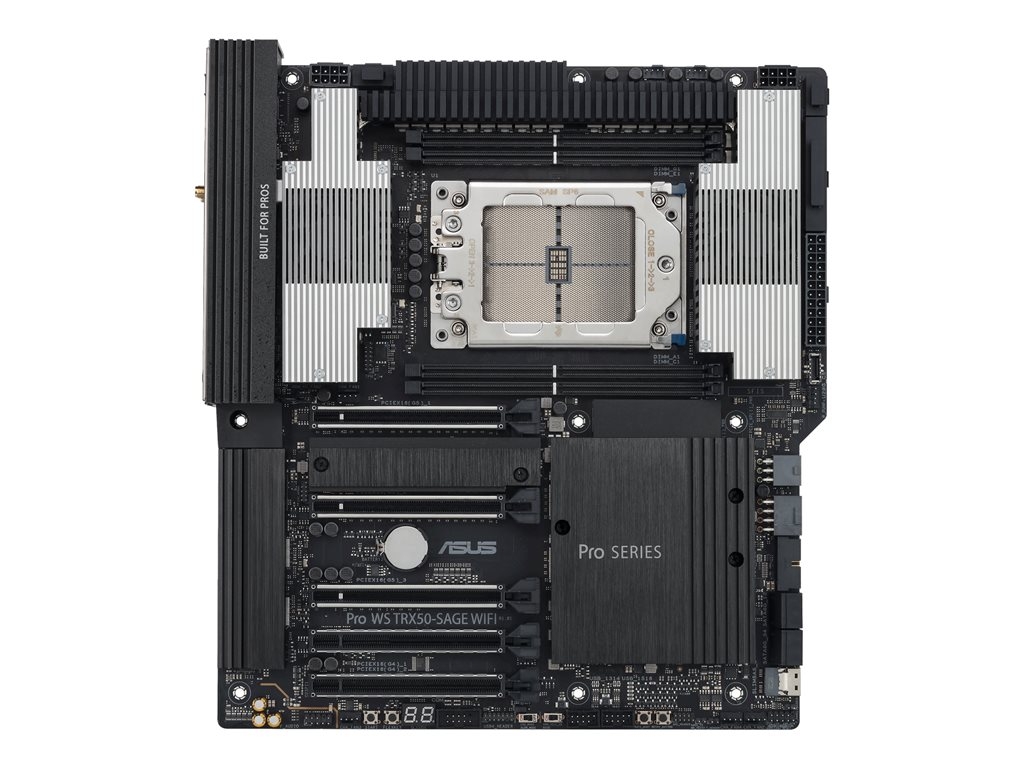

Printers & POSASUS PRO WS TRX50-SAGE WIFI - motherboard - SSI CEB - Socket sTR5 - AMD TRX50
SKU 90MB1FZ0-M0EAY0
| Product Description: | ASUS PRO WS TRX50-SAGE WIFI - motherboard - SSI CEB - Socket sTR5 - AMD TRX50 |
| Product Type: | Motherboard - SSI CEB |
| Chipset Type: | AMD TRX50 |
| Processor Socket: | 1 x Socket sTR5 |
| Compatible Processors: | (supports Ryzen Threadripper PRO 7000WX Series/ 7000 Series) |
| RAM Supported: | 4 DIMM slots - DDR5, ECC, registered |
| Storage Ports: | 4 x SATA-600 (RAID), 3 x M.2, 1 x SlimSAS |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - SSI CEB |
| Chipset Type: | AMD TRX50 |
| Processor Socket: | Socket sTR5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports Ryzen Threadripper PRO 7000WX Series/ 7000 Series) |
| Supported RAM | |
| Technology: | DDR5 |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered |
| Features: | Four DDR channels |
| Audio | |
| Type: | HD Audio |
| Audio Codec: | Realtek ALC1220P |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Marvell AQtion / Intel I226-LM |
| Network Interfaces: | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 (x8 mode) ¦ 2 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x16 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x SlimSAS |
| Interfaces: | 6 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 2.0 ¦ 2 x aerial ¦ 1 x LAN (10Gigabit Ethernet) ¦ LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors: | 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector, 2 x 24-pin main power connectors, 8-pin PCI Express power connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, Q-Code, Preboot eXecution Environment (PXE), Clear CMOS Button, overcurrent protection, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, ProCool II Power Connector, FlexKey button, ASUS ProCool II, M.2 Q-Latch, BIOS FlashBack button, BIOS FlashBack LED, VRM heatsink with fan, Q-Connector |
| Miscellaneous | |
| Included Accessories: | Thermistor cable, Q-Connector, M.2 Q-Latch, 2 x M.2 rubber package, ACC Express Activation Key Card, ASUS 2x2 Dual Band Wi-Fi moving aerials, CPU 8-pin to PCIe 8-pin adapter cable |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ASUS CPU-Z, ASUS Control Center Express, Armoury Crate, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial), Adobe Creative Cloud (free trial), WinRAR (40 days trial) |
| Width: | 30.5 cm |
| Depth: | 28 cm |
| Package Details: | Box |
The technical details come from 3rd party. edgemo is not responsible for any errors.
