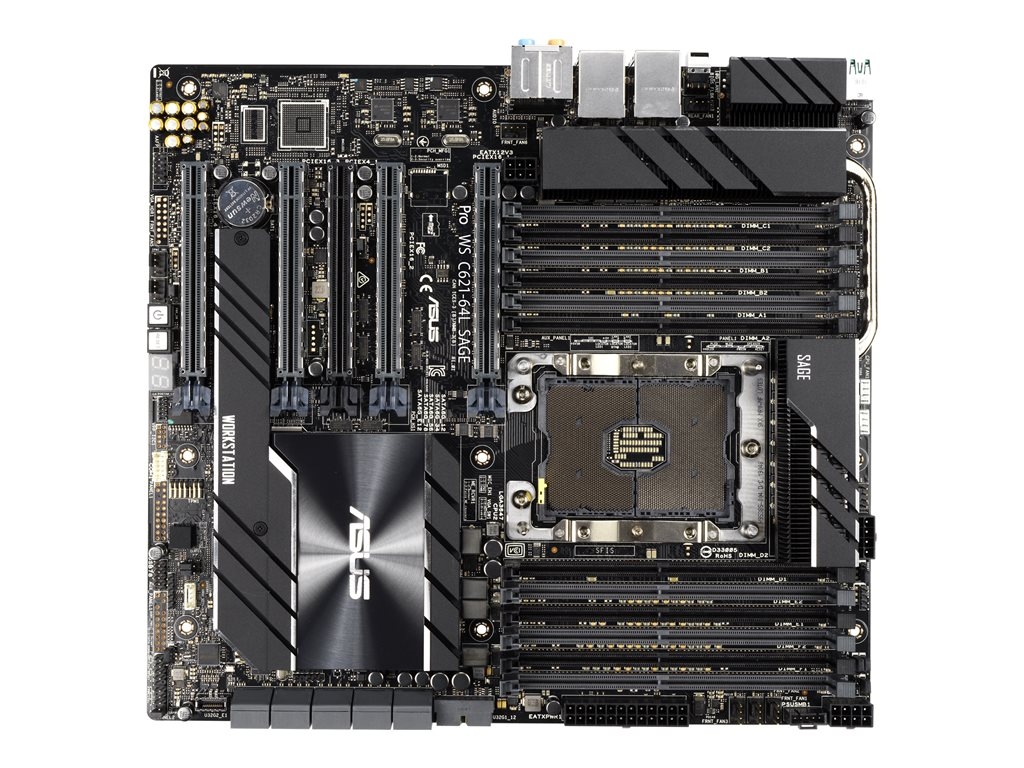

ASUS Pro WS C621-64L SAGE - motherboard - SSI CEB - Socket P - C621
SKU 90SW00R0-M0EAY0
Product Description: | ASUS Pro WS C621-64L SAGE - motherboard - SSI CEB - Socket P - C621 |
Product Type: | Motherboard - SSI CEB |
Chipset Type: | Intel C621 |
Processor Socket: | 1 x Socket P |
Compatible Processors: | Xeon, Xeon W-3200 (supports 1st and 2nd Generation Intel Xeon Scalable CPU) |
Max RAM Size: | 1536 GB |
RAM Supported: | 12 DIMM slots - DDR4, ECC, registered, Load-Reduced |
- Specifications
- Description
General | |
Product Type: | Motherboard - SSI CEB |
Chipset Type: | Intel C621 |
Processor Socket: | Socket P |
Max Processors Qty: | 1 |
Compatible Processors: | Xeon, Xeon W-3200 (supports 1st and 2nd Generation Intel Xeon Scalable CPU) |
Supported RAM | |
Max Size: | 1536 GB |
Technology: | DDR4 |
Bus Clock: | 2666 MHz, 2933 MHz |
Supported RAM Integrity Check: | ECC |
Registered or Buffered: | Registered, Load-Reduced |
Features: | 6-channel memory architecture |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | Realtek ALCS1220A |
Compliant Standards: | High Definition Audio |
LAN | |
Network Controller: | 2 x Intel I210AT |
Network Interfaces: | 2 x Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 12 x DIMM 288-pin ¦ 4 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) |
Storage Interfaces: | Intel C621: SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack |
Internal Interfaces: | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x USB 3.2 Gen 2 - header |
Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
Features | |
Sleep / Wake Up: | Wake on LAN (WOL) |
Hardware Features: | NVIDIA 4-way SLI Technology Support, AMD 4-way CrossFireX technology support, Preboot eXecution Environment (PXE), Intel VROC support, M.2 heatsink |
Miscellaneous | |
Software Included: | ASUS Control Center |
Width: | 30.5 cm |
Depth: | 27.7 cm |
ASUS Pro workstation motherboards are designed for professionals working in AI, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro workstation motherboards are the ideal solution for creative professionals.
- Breakthrough performance in a single-socket solution
- Faster bandwidth
- Make your memory faster and reliable
- Multiple ultra-efficient heatsinks
The technical details come from 3rd party. edgemo is not responsible for any errors.
