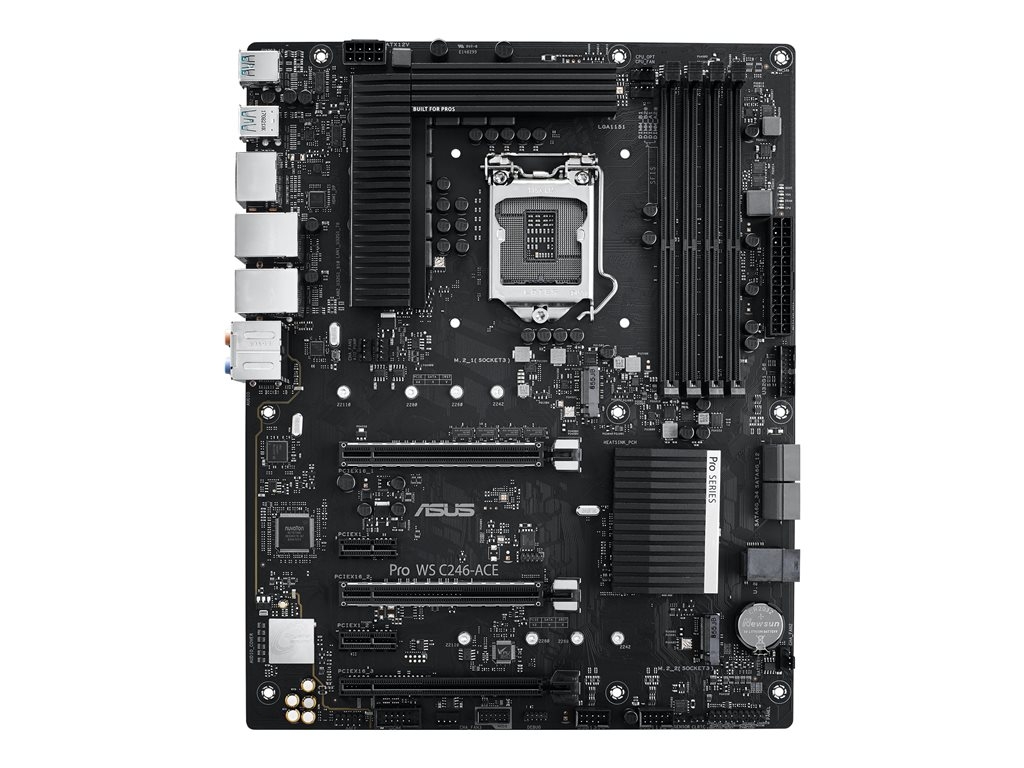

Printers & POSASUS Pro WS C246-ACE - motherboard - ATX - LGA1151 Socket - C246
SKU 90MB1220-M0EAY0
| Product Description: | ASUS Pro WS C246-ACE - motherboard - ATX - LGA1151 Socket - C246 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel C246 |
| Processor Socket: | 1 x LGA1151 Socket |
| Compatible Processors: | Celeron, Xeon, Pentium Gold (supports 9th and 8th Generation Intel Core i3 / i5 / i7 / i9 / Pentium / Celeron) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4, ECC |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel C246 |
| Processor Socket: | LGA1151 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | Celeron, Xeon, Pentium Gold (supports 9th and 8th Generation Intel Core i3 / i5 / i7 / i9 / Pentium / Celeron) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check: | ECC |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALCS1200A |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Intel I210-AT / I219LM |
| Network Interfaces: | 2 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x16 (x2 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2, 1 x U.2 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 4 x USB 3.1 Gen 1 ¦ 3 x USB 3.1 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x DisplayPort ¦ 1 x HDMI |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ACPI 6.1 support, SMBIOS 3.1 support |
| Hardware Features: | Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, Turbo LAN, LANGuard, ASUS Fan Xpert 4, ASUS 5X Protection III, ASUS SafeSlot Core, Armoury Crate, ASUS Node |
| Miscellaneous | |
| Included Accessories: | 1 x M.2 screw, I/O back cover |
| Software Included: | ASUS AI Charger, ASUS AI Suite III, ASUS EZ Flash 3 |
| Compliant Standards: | Plug and Play |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals.
- Reliable and responsive ECC memory suitable for mission critical tasks
- Ultra-fast storage with M.2 & U.2 support, plus up to 10Gbps back-panel USB 3.2 Gen 2 with Type-A and Type-C ports
- ASUS OptiMem: careful routing of traces and vias to preserve signal integrity for improved memory stability
