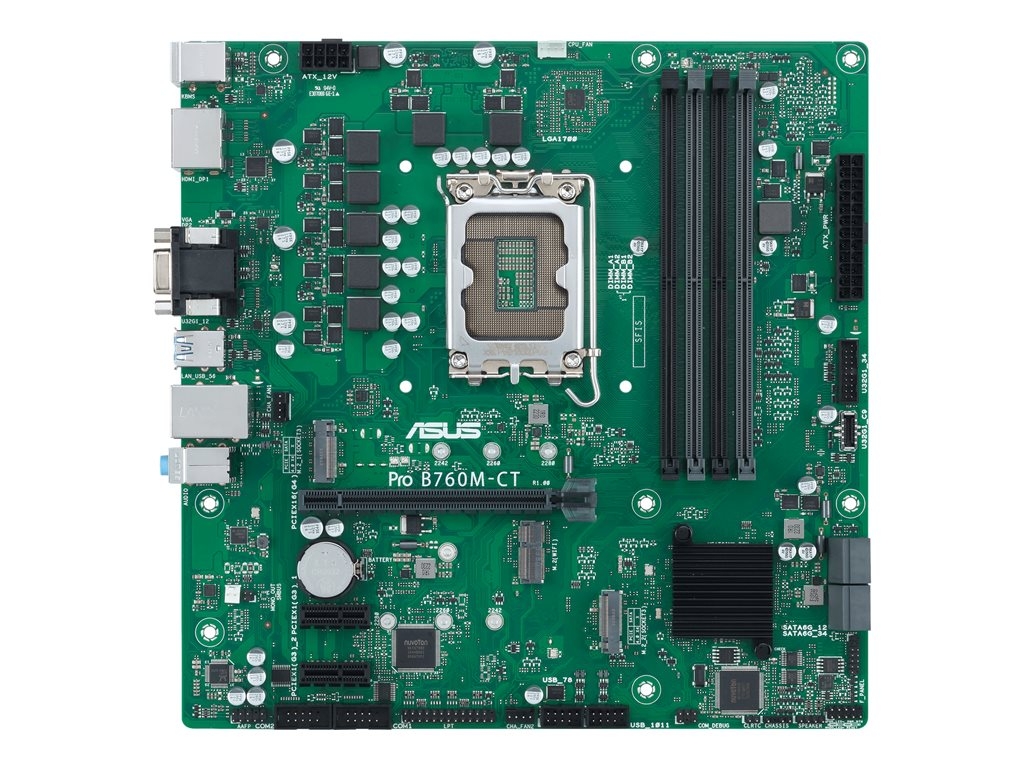

Printers & POSASUS Pro B760M-CT-CSM - motherboard - micro ATX - LGA1700 Socket - B760
SKU 90MB1DY0-M0EAYC
| Product Description: | ASUS Pro B760M-CT-CSM - motherboard - micro ATX - LGA1700 Socket - B760 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel B760 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 192 GB |
| RAM Supported: | 4 DIMM slots - DDR5, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel B760 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 192 GB |
| Technology: | DDR5 |
| Bus Clock: | 4800 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |
| Interfaces: | 1 x HDMI ¦ 2 x DisplayPort ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x headphones output - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 2 x serial - header ¦ 1 x speaker - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | LANGuard, ASUS OptiMem II, ASUS Q-Design, Q-LED, Q-Slot, Q-DIMM, anti-moisture coating, ASUS EZ DIY, ASUS Boot Defender, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, overcurrent protection, Preboot eXecution Environment (PXE), Trusted Platform Module (TPM) 2.0 |
| Miscellaneous | |
| Included Accessories: | ACC Express Activation Key Card, IO shield, 2 x M.2 screw package |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ASUS Control Center Express |
| Compliant Standards: | DisplayPort 1.4, FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
| Pricing Type: | ASUS Corporate Stable Model (CSM) |
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
- Intel LGA 1700 socket
- ASUS CSM program
- ASUS Control Center Express
- Enhanced system security
- Consistent and reliable performance
- Efficient management and customization
- Better serviceability
- Ultrafast connectivity
