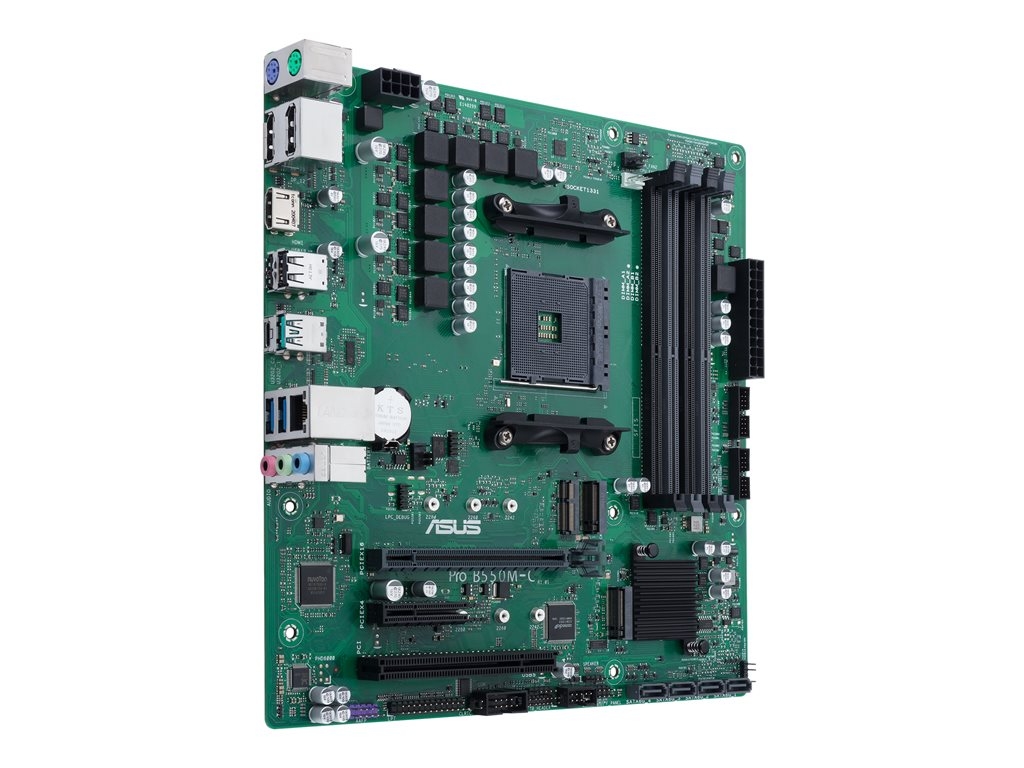

Printers & POSASUS Pro B550M-C/CSM - motherboard - micro ATX - Socket AM4 - AMD B550
SKU 90MB15Q0-M0EAYC
| Product Description: | ASUS Pro B550M-C/CSM - motherboard - micro ATX - Socket AM4 - AMD B550 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD B550 |
| Processor Socket: | 1 x Socket AM4 |
| Compatible Processors: | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD B550 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887/ALC897 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Realtek RTL8111H |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen 5000 Series/ 3000 Series CPUs); PCIe 3.0 x16 mode (Ryzen 4000 G-Series CPUs)) ¦ 1 x PCIe 3.0 x4 ¦ 1 x PCI |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces: | 2 x DisplayPort ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x USB-C Gen2 ¦ 2 x USB 2.0 |
| Internal Interfaces: | 3 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x speaker - header ¦ 1 x Thunderbolt - header ¦ 1 x parallel - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS |
| Sleep / Wake Up: | Wake on LAN (WOL) |
| Hardware Features: | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, audio jack detect technology, Preboot eXecution Environment (PXE), overcurrent protection, Moistureproof PCB, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, TPM 2.0 IC Onboard, ASUS Control Center Express (ACC Express) |
| Miscellaneous | |
| Included Accessories: | I/O back cover, 3 x M.2 screws, 2 x M.2 Hex screws |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities |
| Compliant Standards: | FCC, RoHS |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as huge motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
- ASUS Self-recovering BIOS
- ASUS Secure Boot
- Trusted Platform Module (TPM)
- ASUS Trouble Shooting Solution
- Fixed-position connectors
