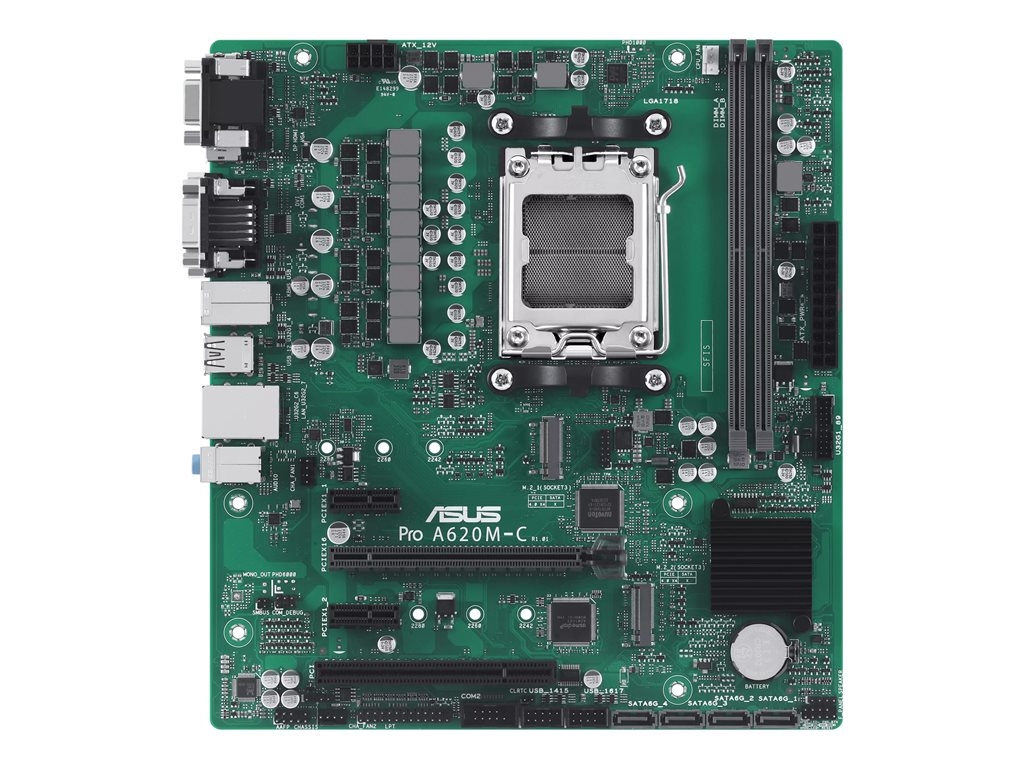

Printers & POSASUS Pro A620M-C-CSM - motherboard - micro ATX - Socket AM5 - AMD B650
SKU 90MB1F80-M0EAYC
| Product Description: | ASUS Pro A620M-C-CSM - motherboard - micro ATX - Socket AM5 - AMD B650 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD B650 |
| Processor Socket: | 1 x Socket AM5 |
| Compatible Processors: | Ryzen (supports Ryzen 7000 Series, Maximum TDP 120 Watt) |
| Max RAM Size: | 96 GB |
| RAM Supported: | 2 DIMM slots - DDR5, non-ECC, ECC, on-die ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD B650 |
| Processor Socket: | Socket AM5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports Ryzen 7000 Series, Maximum TDP 120 Watt) |
| Supported RAM | |
| Max Size: | 96 GB |
| Technology: | DDR5 |
| Bus Clock: | 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, ECC, on-die ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, AMD EXPO technology |
| Audio | |
| Type: | HD Audio (8-channel) |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCI ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 1 ¦ 3 x USB 2.0 ¦ LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x serial ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack |
| Internal Interfaces: | 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x speaker - header ¦ 1 x SPI - header ¦ 1 x serial - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Trusted Platform Module (TPM), ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-Slot, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, overcurrent protection, LANGuard, overvoltage protection, Anti-Sulfur Design, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, ASUS OptiMem II, Q-LED Core, anti-moisture coating |
| Miscellaneous | |
| Included Accessories: | IO shield, 2 x M.2 anchors, ACC Express Activation Key Card |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ASUS Control Center Express |
| Compliant Standards: | IC, FCC, RoHS |
| Width: | 24.4 cm |
| Depth: | 22.4 cm |
The ASUS Pro A620M-C-CSM motherboard is designed to elevate computing experiences, suitable for Ryzen processors and optimized for high-performance applications. Built on the AMD B650 chipset, it supports DDR5 SDRAM with a maximum speed of 8000 MHz (O.C.), catering to various memory integrity checks like ECC. With its micro ATX form factor, the board provides flexibility for any build, making it ideal for gamers and professionals alike. Connectivity options are abundant with multiple USB ports, including USB-C 3.2 Gen 2 and HDMI outputs, ensuring compatibility with a wide range of devices. The audio output features high definition audio capabilities, providing a premium sound experience for multimedia tasks. Additionally, ASUS incorporates several protective features such as anti-sulfur design and overvoltage protection, contributing to the durability and reliability of the motherboard, making it a worthy choice for any tech enthusiast.
- Supports Ryzen processors with a maximum TDP of 120 watts
- Capable of hosting DDR5 RAM speeds up to 8000 MHz with dual-channel architecture
- Equipped with multiple connectivity options including USB-C, HDMI, and DisplayPort
- Features protection mechanisms like overcurrent and overvoltage protection
- Incorporates innovations such as Q-DIMM for easy memory installation
