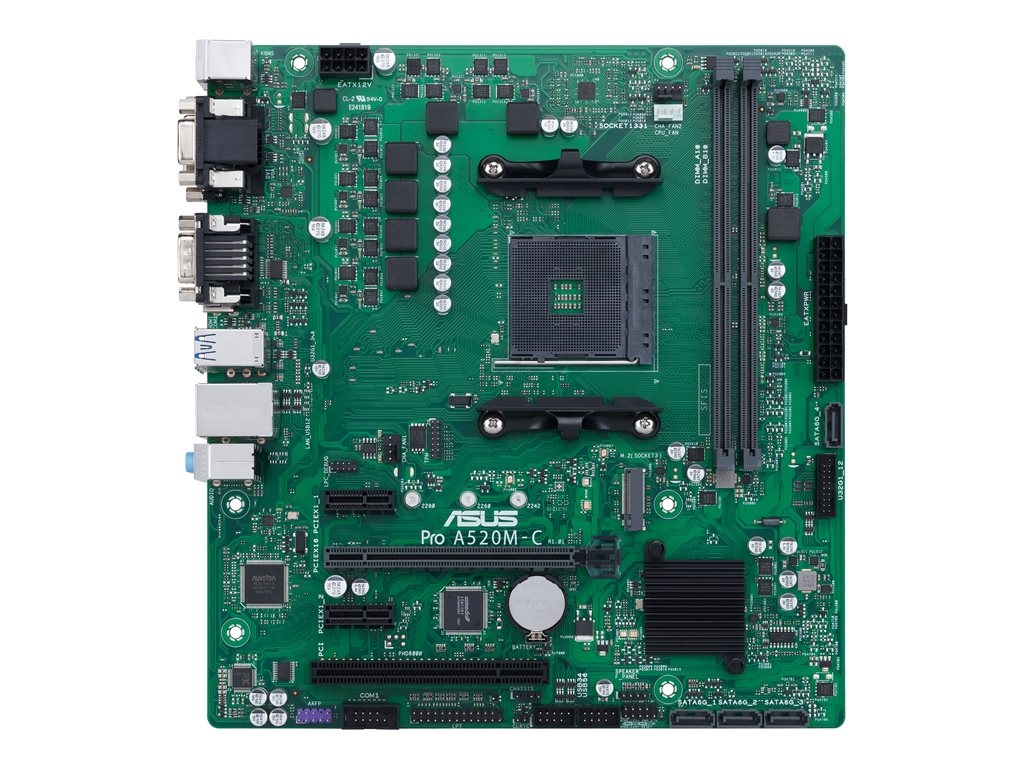

Printers & POSASUS Pro A520M-C/CSM - motherboard - micro ATX - Socket AM4 - AMD A520
SKU 90MB1550-M0EAYC
| Product Description: | ASUS Pro A520M-C/CSM - motherboard - micro ATX - Socket AM4 - AMD A520 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD A520 |
| Processor Socket: | 1 x Socket AM4 |
| Compatible Processors: | Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics) |
| Max RAM Size: | 64 GB |
| RAM Supported: | 2 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD A520 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics) |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Realtek RTL8111H |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCI |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x VGA ¦ 1 x DVI-D ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x serial |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x parallel - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x audio - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, audio jack detect technology, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, Moistureproof PCB, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, ASUS Control Center Express (ACC Express) |
| Miscellaneous | |
| Included Accessories: | 1 x M.2 screw, I/O back cover |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS Control Center |
| Width: | 24.4 cm |
| Depth: | 22.9 cm |
ASUS PRO business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization.
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- Dedicated LPC header and debug card with LCD display for faster troubleshooting
- Event log for capturing and managing detailed system information
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
The technical details come from 3rd party. edgemo is not responsible for any errors.
