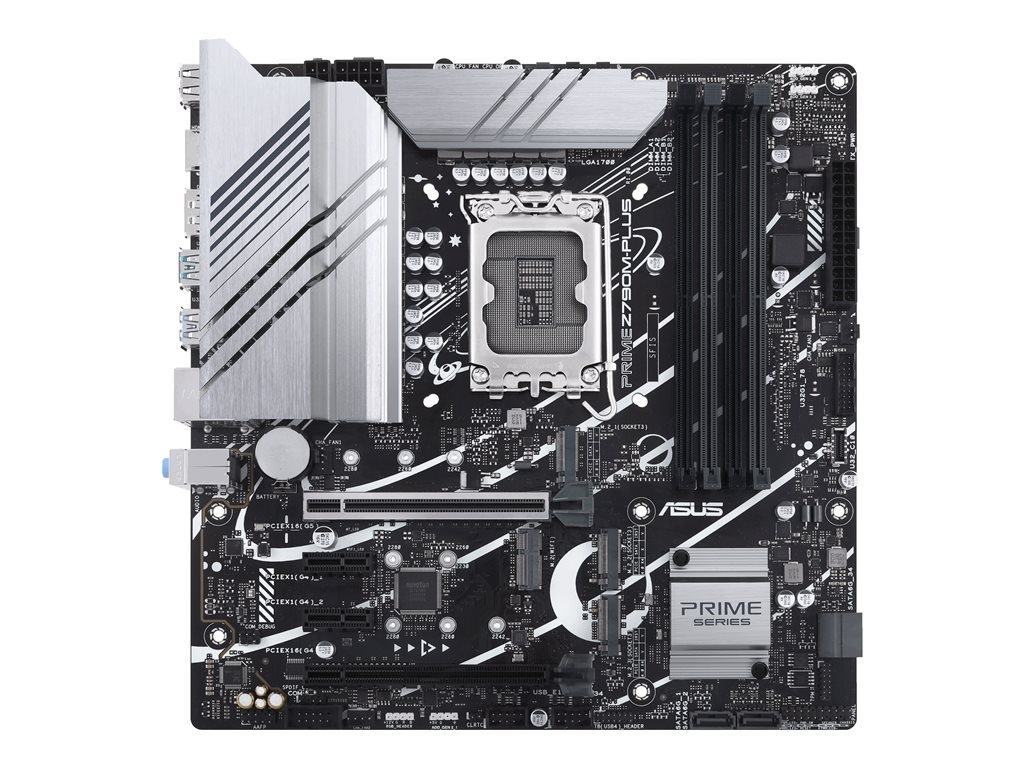

ASUS PRIME Z790M-PLUS - motherboard - micro ATX - LGA1700 Socket - Z790

SKU 90MB1E70-M0EAY0

Product Description:	ASUS PRIME Z790M-PLUS - motherboard - micro ATX - LGA1700 Socket - Z790
Product Type:	Motherboard - micro ATX
Chipset Type:	Intel Z790
Processor Socket:	1 x LGA1700 Socket
Compatible Processors:	(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size:	128 GB
RAM Supported:	4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered

Not in stock

Specifications
Description
Accessories

General
Product Type:	Motherboard - micro ATX
Chipset Type:	Intel Z790
Processor Socket:	LGA1700 Socket
Max Processors Qty:	1
Compatible Processors:	(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM
Max Size:	128 GB
Technology:	DDR5
Bus Clock:	7200 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 6600 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz, 5400 MHz, 5200 MHz, 5000 MHz, 4800 MHz
Supported RAM Integrity Check:	Non-ECC, on-die ECC
Registered or Buffered:	Unbuffered
Features:	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio
Type:	HD Audio (8-channel)
Compliant Standards:	High Definition Audio

LAN
Network Interfaces:	Gigabit Ethernet

Expansion / Connectivity
Expansion Slots:	1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E)
Storage Interfaces:	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features:	Intel Rapid Storage Technology
Interfaces:	1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (Gigabit Ethernet)
Internal Interfaces:	1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header ¦ 1 x Thunderbolt - header
Power Connectors:	24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector

Features
BIOS Type:	AMI
BIOS Features:	UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up:	Wake on LAN (WOL), wake on PME
Hardware Features:	Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, ASUS OptiMem II, LANGuard, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS ProCool, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, overvoltage protection, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, audio jack detect technology, jack retasking, ASUS EZ DIY, CrashFree BIOS 3, Preboot eXecution Environment (PXE), 10+1 DrMOS power stages, ASUS Enhanced Memory Profile (AEMP) II, Water Pump Header

Miscellaneous
Included Accessories:	IO shield, 2 x M.2 SSD screw package
Cables Included:	2 x Serial ATA cable
Software Included:	Armoury Crate, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS CPU-Z, ASUS TurboV EVO Utility, Norton 360 Deluxe (60 days trial), PC Cleaner, WinRAR
Compliant Standards:	DisplayPort 1.4
Width:	24.4 cm
Depth:	24.4 cm

vis mere

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790M-PLUS provides users and PC DIY builders with a range of performance optimizations.

All-around energy efficiency
Precise digital power control
VRM heatsinks and thermal pads
Cooler by design
AIO pump header
Smart protection
4-pin PWM/DC fan
ProCool connectors
10 + 1 teamed power stages
