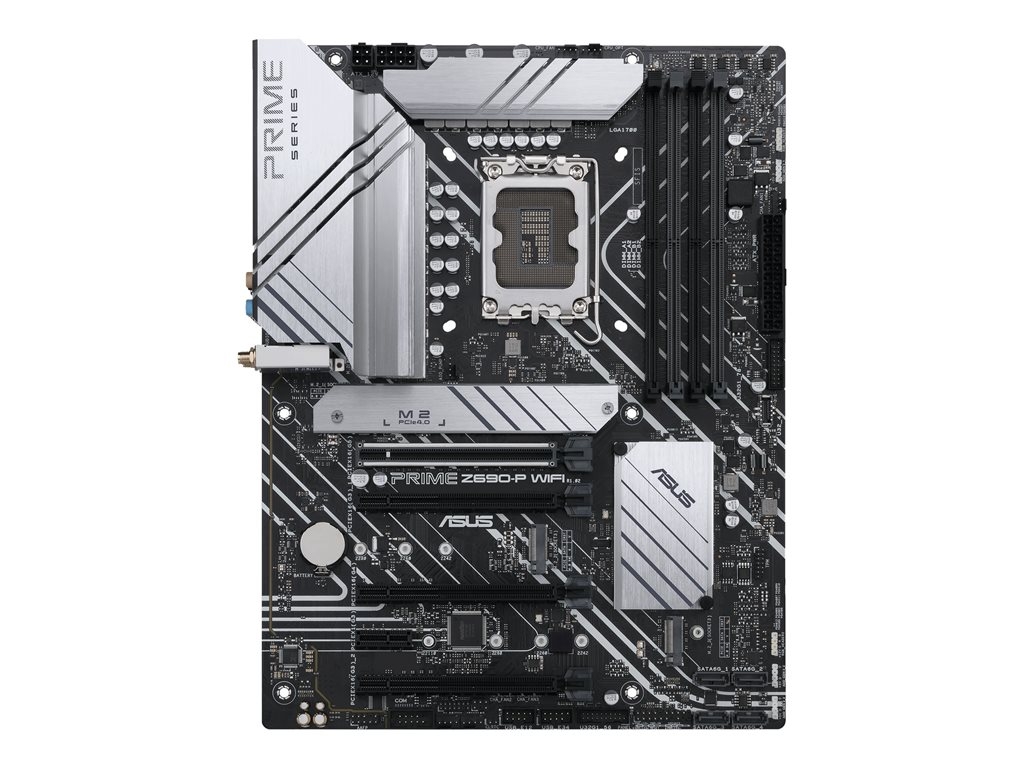

Printers & POSASUS PRIME Z690-P WIFI - motherboard - ATX - LGA1700 Socket - Z690
SKU 90MB1A90-M0EAY0
| Product Description: | ASUS PRIME Z690-P WIFI - motherboard - ATX - LGA1700 Socket - Z690 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel Z690 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR5, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel Z690 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR5 |
| Bus Clock: | 4800 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 2 x PCIe 3.0 x16 (x4 mode) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 1 x USB-C Gen 1 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, Intel Optane Memory Ready, LANGuard, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, M.2 heatsink, ASUS EZ DIY, ASUS ProCool, ASUS Aura Sync, Armoury Crate, ASUS Fan Xpert 4, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), CrashFree BIOS 3, Preboot eXecution Environment (PXE), 14+1 DrMOS power stages, Q-LED Core |
| Miscellaneous | |
| Included Accessories: | I/O back plate, 1 x M.2 rubber package, 2 x M.2 screws |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS AI Suite III, ASUS TurboV EVO Utility, ASUS CPU-Z, Norton AntiVirus (Trial), WinRAR |
| Width: | 30.5 cm |
| Depth: | 23.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
ASUS Prime series motherboards are expertly engineered to unleash the full potential of powerful processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P WIFI provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
- All-around energy efficiency
- Flexible air- and liquid-cooling controls
- Precise digital power control
- Advanced tuning for serious tweakers
- Quick and simple setup
- Intuitive graphical fan control
- Aura on/off mode (stealth)
- VRM heatsinks and high-quality thermal pads
- Cooler by design
- ProCool Connectors
- DDR5 Performance Enhancement
- Customization
- Audio shielding
- Separate layer for left and right tracks
- Premium audio capacitors
- World-class circuit-protecting power design
- Short-circuit damage prevention
- 3X corrosion-resistance for greater durability
The technical details come from 3rd party. edgemo is not responsible for any errors.
