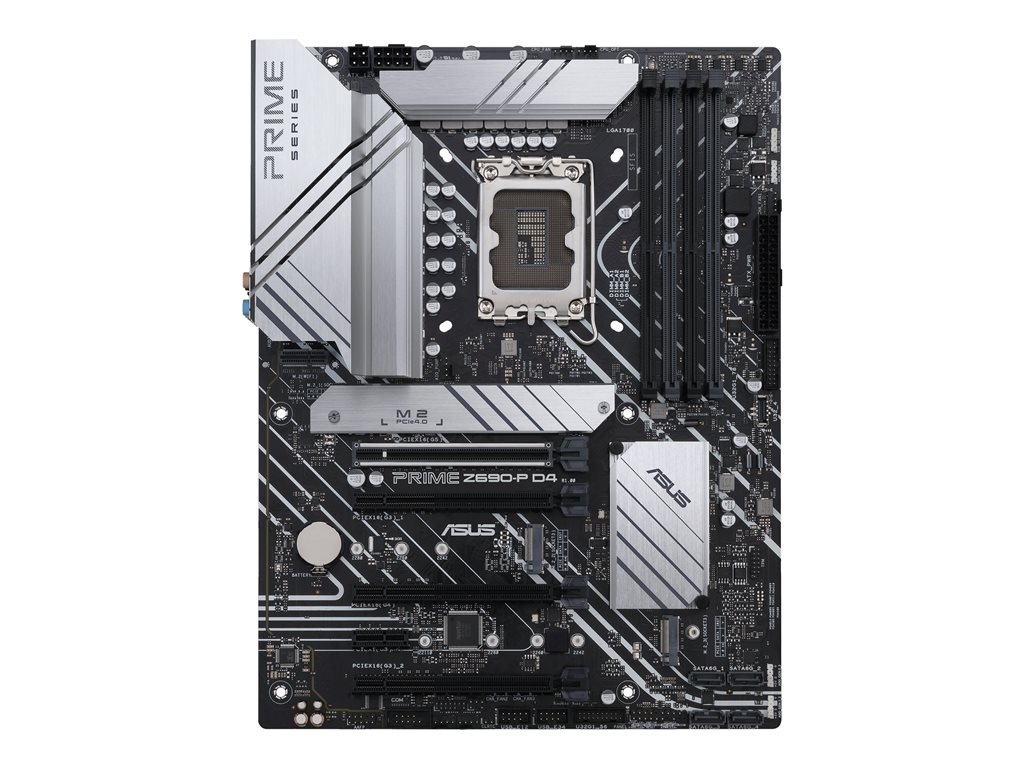

ASUS PRIME Z690-P D4 - motherboard - ATX - LGA1700 Socket - Z690

SKU 90MB18P0-M0EAY0
Product Description:ASUS PRIME Z690-P D4 - motherboard - ATX - LGA1700 Socket - Z690
Product Type:Motherboard - ATX
Chipset Type:Intel Z690
Processor Socket:1 x LGA1700 Socket
Compatible Processors:(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size:128 GB
RAM Supported:4 DIMM slots - DDR4, non-ECC, unbuffered
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Product Type:Motherboard - ATX
Chipset Type:Intel Z690
Processor Socket:LGA1700 Socket
Max Processors Qty:1
Compatible Processors:(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size:128 GB
Technology:DDR4
Bus Clock:2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5333 MHz (O.C.), 5133 MHz (O.C.)
Supported RAM Integrity Check:Non-ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type:HD Audio (8-channel)
Compliant Standards:High Definition Audio
LAN
Network Interfaces:2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 2 x PCIe 3.0 x16 (x4 mode) ¦ 1 x M.2 socket (for Intel CNVi wireless module)
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
RAID Features:Intel Rapid Storage Technology
Interfaces:1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces:4 x USB 2.0 - header ¦ 1 x USB-C Gen 1 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header
Power Connectors:4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type:AMI
BIOS Features:UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up:Wake on LAN (WOL), wake on PME
Hardware Features:ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Optane Memory Ready, ASUS 5X Protection III, M.2 heatsink, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, 14+1 DrMOS power stages, Q-LED Core
Miscellaneous
Included Accessories:I/O back plate, 2 x M.2 screws, 1 x M.2 rubber package
Cables Included:2 x Serial ATA cable
Software Included:Drivers & Utilities, ASUS TurboV EVO Utility, ASUS CPU-Z, ASUS AI Suite III, WinRAR, Norton AntiVirus (Trial)
Width:30.5 cm
Depth:23.4 cm
vis mere
ASUS Prime series motherboards are expertly engineered to unleash the full potential of powerful processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
  • All-around energy efficiency
  • Flexible air- and liquid-cooling controls
  • Precise digital power control
  • Advanced tuning for serious tweakers
  • Quick and simple setup
  • Intuitive graphical fan control
  • Aura on/off mode (stealth)
  • VRM heatsinks and high-quality thermal pads
  • Cooler by design
  • ProCool Connectors
  • DDR5 Performance Enhancement
  • Customization
  • Audio shielding
  • Separate layer for left and right tracks
  • Premium audio capacitors
  • World-class circuit-protecting power design
  • Short-circuit damage prevention
  • 3X corrosion-resistance for greater durability




The technical details come from 3rd party. edgemo is not responsible for any errors.
