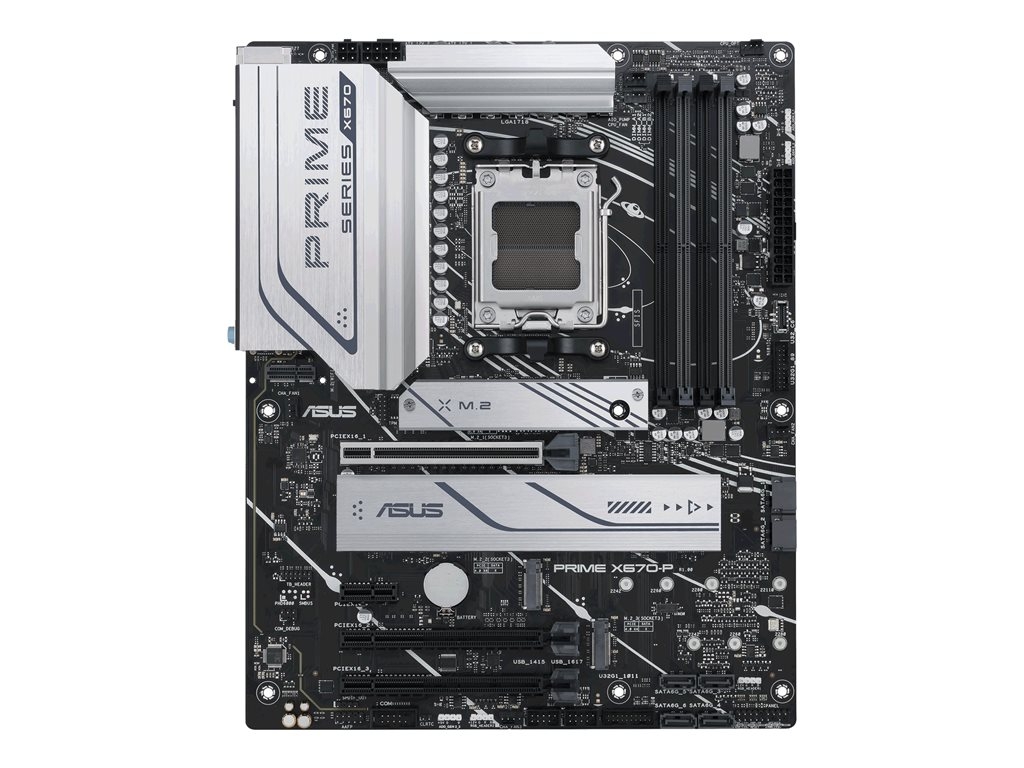

ASUS Prime X670-P - motherboard - ATX - Socket AM5 - AMD X670

SKU 90MB1BU0-M0EAY0
Product Description:ASUS Prime X670-P - motherboard - ATX - Socket AM5 - AMD X670
Product Type:Motherboard - ATX
Chipset Type:AMD X670
Processor Socket:1 x Socket AM5
Compatible Processors:Ryzen (supports Ryzen 7000 Series)
Max RAM Size:192 GB
RAM Supported:4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Product Type:Motherboard - ATX
Chipset Type:AMD X670
Processor Socket:Socket AM5
Max Processors Qty:1
Compatible Processors:Ryzen (supports Ryzen 7000 Series)
Supported RAM
Max Size:192 GB
Technology:DDR5
Bus Clock:4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)
Supported RAM Integrity Check:Non-ECC, on-die ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, AMD EXPO technology
Audio
Type:HD Audio (8-channel)
Compliant Standards:High Definition Audio
LAN
Network Interfaces:2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (Key E)
Storage Interfaces:SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces:1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 3 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ PS/2 keyboard / mouse
Internal Interfaces:1 x USB-C 3.2 Gen 1 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header ¦ 1 x Thunderbolt - header
Power Connectors:24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
Features
BIOS Type:AMI
BIOS Features:UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up:Wake on LAN (WOL), wake on PME
Hardware Features:ASUS OptiMem II, BIOS FlashBack button, jack retasking, audio jack detect technology, Clear CMOS Button, ASUS 5X Protection III, ASUS DIGI+ VRM, ESD Guards, LANGuard, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED Core, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool, ASUS Aura Sync, ASUS TurboV EVO, CrashFree BIOS 3, 12+2 DrMOS power stages, 60A Power Stage, Water Pump Header, 6 Layer PCB, DIY Friendly Design, Stack Cool 3+
Miscellaneous
Included Accessories:IO shield, 1 x M.2 rubber package, 2 x M.2 screw package
Cables Included:2 x Serial ATA cable
Software Included:Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, PC Cleaner, ASUS CPU-Z, Norton AntiVirus (Trial), WinRAR
Compliant Standards:DisplayPort 1.4, FCC Part 15 Class B, VCCI Class B ITE, JATE, KC, EU REACH, EU RoHS, UKCA, WEEE
Width:30.5 cm
Depth:24.4 cm
vis mere
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME X670-P provides users and PC DIY builders with a range of performance optimizations.
  • 12 + 2 DrMOS power stages (60 A) with enlarged heatsinks
  • Gen 5 slot for storage
  • DDR5 support
  • USB 3.2 Gen 2x2 Type-C
  • 2.5 Gb Ethernet
  • Intelligent Control
  • Al Cooling II
