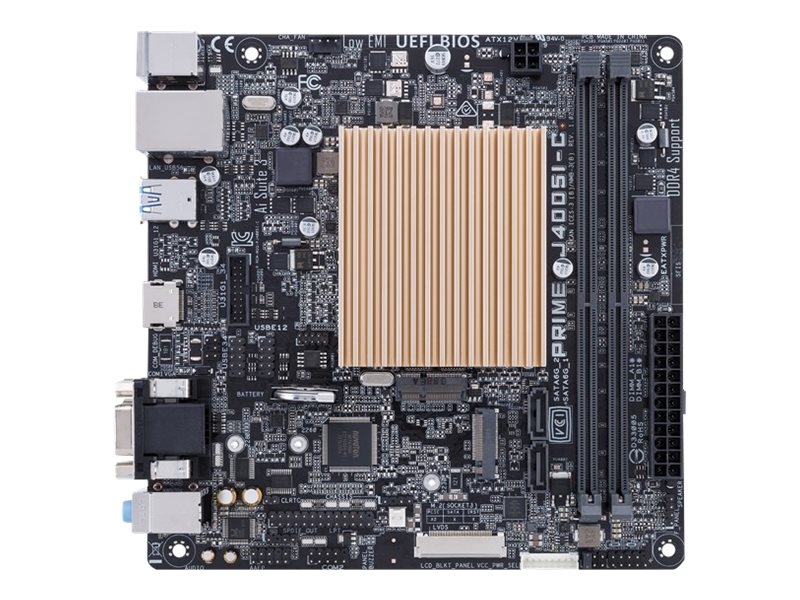

Printers & POSASUS PRIME J4005I-C - motherboard - Thin mini ITX - Intel Celeron J4005
SKU 90MB0W90-M0EAY1
| Product Description: | ASUS PRIME J4005I-C - motherboard - Thin mini ITX - Intel Celeron J4005 |
| Product Type: | Motherboard - Thin mini ITX |
| Processor: | Intel Celeron J4005 (Dual-Core) |
| Max RAM Size: | 8 GB |
| RAM Supported: | 2 DIMM slots - DDR4, non-ECC, unbuffered |
| Storage Ports: | 2 x SATA-600, 1 x M.2 |
| USB / FireWire Ports: | 2 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 via headers) |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - Thin mini ITX |
| Processor: | Intel Celeron J4005 (Dual-Core) |
| Supported RAM | |
| Max Size: | 8 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Graphics | |
| Graphics Controller: | Intel UHD Graphics 600 |
| Max Allocated RAM Size: | 512 MB |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887-VD2 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Realtek RTL8111H |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 2 x DIMM 288-pin ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces: | SATA-600 -connectors: 2 x 7pin Serial ATA ¦ PCIe -connectors: 1 x M.2 |
| Interfaces: | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 2.0 ¦ 1 x VGA ¦ 1 x serial |
| Internal Interfaces: | 2 x USB 3.1 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x parallel - header ¦ 1 x speaker - header ¦ 1 x SPDIF out - header ¦ 1 x LVDS - header |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.0 support, ACPI 6.0 support |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, audio jack detect technology, Fanless Design Heatsink, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection II |
| Miscellaneous | |
| Included Accessories: | I/O back cover, 2 x M.2 screws |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version), ASUS EZ Flash 3 |
| Compliant Standards: | Plug and Play |
| Width: | 17 cm |
| Depth: | 17 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
ASUS PRIME is designed to make advanced enthusiast controls easily accessible - maximizing performance, stability and compatibility for better DIY PC experiences.
- Built to last
- Advanced hardware safeguards
- Electrostatic discharge protection
- Corrosion resistance for greater durability
The technical details come from 3rd party. edgemo is not responsible for any errors.
