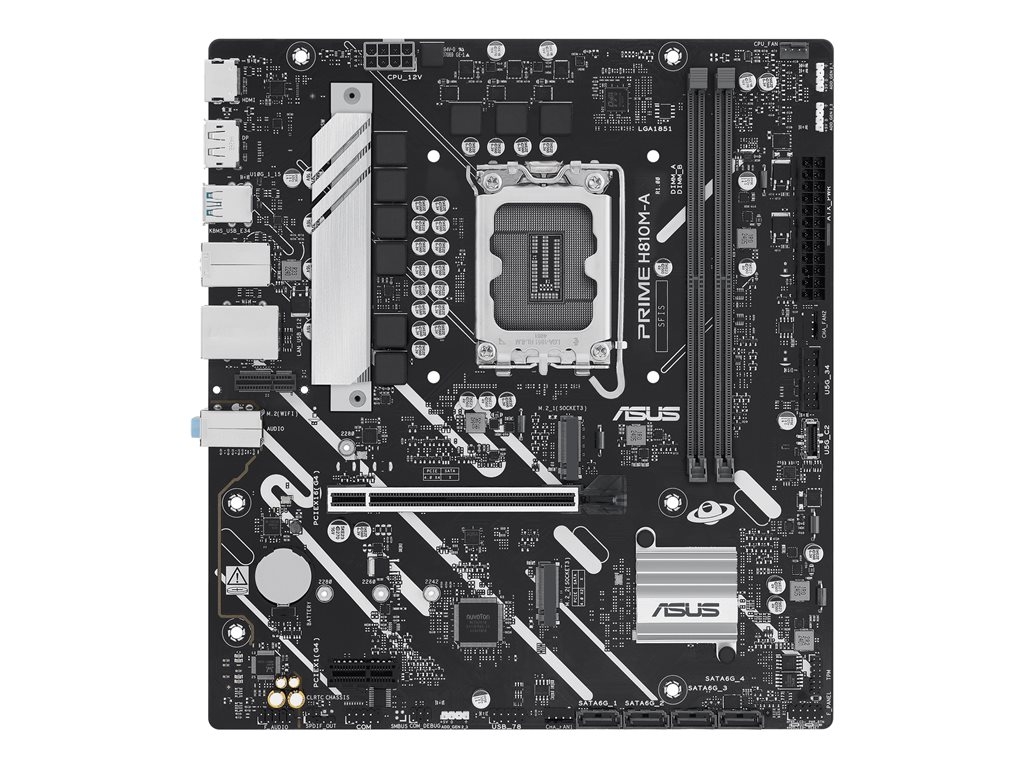

Printers & POSASUS PRIME H810M-A-CSM - motherboard - micro ATX - LGA1851 Socket - H810
SKU PRIME H810M-A-CSM
| Product Description: | ASUS PRIME H810M-A-CSM - motherboard - micro ATX - LGA1851 Socket - H810 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H810 |
| Processor Socket: | 1 x LGA1851 Socket |
| Compatible Processors: | (supports Intel Core Ultra processors (Series 2)) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 2 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered, clocked unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H810 |
| Processor Socket: | LGA1851 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR5 |
| Bus Clock: | 3200 MHz |
| Supported RAM Integrity Check: | Non-ECC, on-die ECC |
| Registered or Buffered: | Unbuffered, clocked unbuffered |
| Features: | Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Intel I219V |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x1 ¦ 1 x M.2 socket (2280 M.2 slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 2 x M.2 |
| Interfaces: | 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, CUDIMM support, ASUS Enhanced Memory Profile (AEMP) II, Preboot eXecution Environment (PXE), CrashFree BIOS 3, LANGuard, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS Q-Design, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, 6+1+1+1 Phase Power Design, ASUS EZ DIY, chipset heatsink |
| Miscellaneous | |
| Included Accessories: | IO shield, M.2 screw package |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS DriverHub, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial), ASUS Control Center Express |
| Compliant Standards: | DisplayPort 1.4 |
| Width: | 24.4 cm |
| Depth: | 22.2 cm |
The ASUS PRIME H810M-A-CSM motherboard is engineered to support a range of Intel Core Ultra processors, bringing impressive performance and versatile connectivity to your computing experience. With its micro ATX form factor, this motherboard is designed for compact builds without compromising on functionality. Featuring support for DDR5 SDRAM with speeds of up to 3200 MHz and dual-channel memory architecture, it ensures fast and efficient data processing capabilities. Connectivity is a strong suit of the PRIME H810M-A-CSM, as it offers multiple ports, including USB 3.2 Gen 2 and HDMI for high-quality video output. The motherboard also comes equipped with high definition audio and a variety of expansion slots, facilitating easy upgrades. Features like ASUS Q-Design and CrashFree BIOS 3 simplify management and maintenance, allowing for a smooth user experience.
- Supports Intel Core Ultra processors for enhanced performance
- Equipped with DDR5 SDRAM technology for improved memory speed
- Multiple connectivity options including USB 3.2 Gen 2 and HDMI
- High definition audio output for immersive sound experience
- User-friendly features for easy management and maintenance
The technical details come from 3rd party. edgemo is not responsible for any errors.
