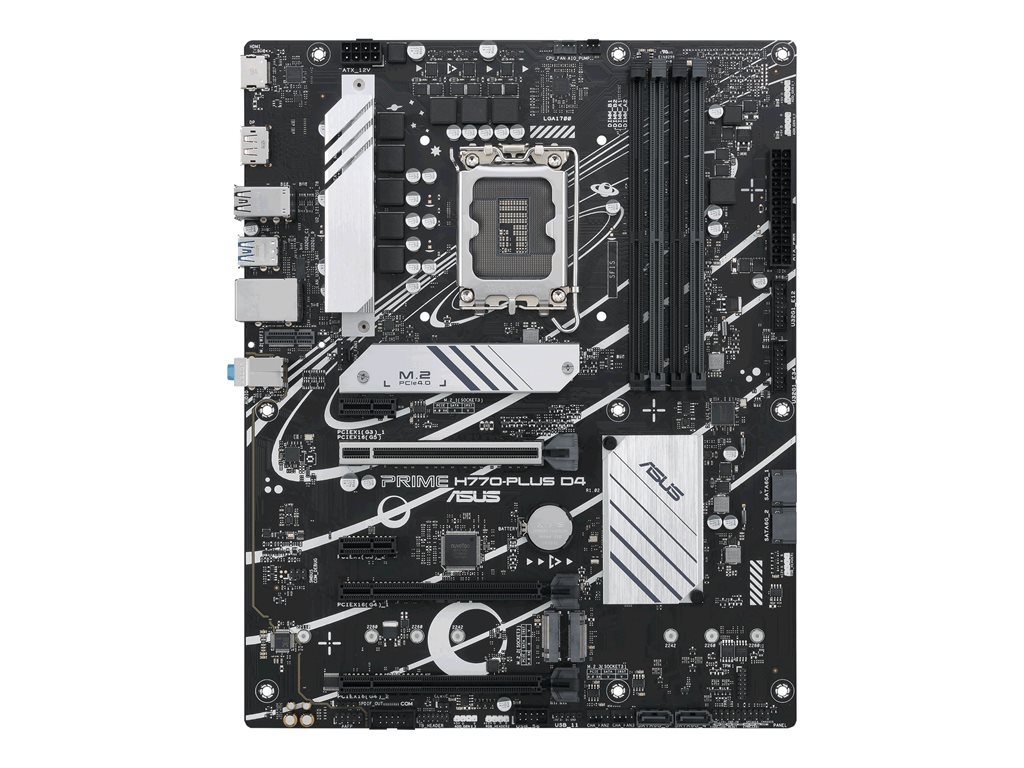

ASUS PRIME H770-PLUS D4 - motherboard - ATX - LGA1700 Socket - H770

SKU 90MB1CU0-M0EAY0
Product Description:ASUS PRIME H770-PLUS D4 - motherboard - ATX - LGA1700 Socket - H770
Product Type:Motherboard - ATX
Chipset Type:Intel H770
Processor Socket:1 x LGA1700 Socket
Compatible Processors:(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size:128 GB
RAM Supported:4 DIMM slots - DDR4, non-ECC, unbuffered
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Product Type:Motherboard - ATX
Chipset Type:Intel H770
Processor Socket:LGA1700 Socket
Max Processors Qty:1
Compatible Processors:(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size:128 GB
Technology:DDR4
Bus Clock:5066 MHz (O.C.), 5000 MHz (O.C.), 4800 MHz (O.C.), 4600 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4000 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3466 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3200 MHz, 3000 MHz, 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz
Supported RAM Integrity Check:Non-ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type:HD Audio (8-channel)
Compliant Standards:High Definition Audio
LAN
Network Interfaces:2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 4.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (Key E)
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features:Intel Rapid Storage Technology
Interfaces:1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack
Internal Interfaces:4 x USB 3.2 Gen 1 - header ¦ 3 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header ¦ 1 x Thunderbolt - header
Power Connectors:24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type:AMI
BIOS Features:UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up:Wake on LAN (WOL), wake on PME
Hardware Features:Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, ASUS OptiMem, audio jack detect technology, jack retasking, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS ProCool, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, LANGuard, M.2 heatsink, overvoltage protection, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, Preboot eXecution Environment (PXE), CrashFree BIOS 3, DIY Friendly Design
Miscellaneous
Included Accessories:IO shield, 1 x M.2 rubber package, 2 x M.2 SSD screw package
Cables Included:2 x Serial ATA cable
Software Included:Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, PC Cleaner, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR
Compliant Standards:DisplayPort 1.4
Width:30.5 cm
Depth:24.4 cm
vis mere
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B770-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via firmware features.
  • Intel LGA 1700 socket
  • Ultrafast connectivity
  • Comprehensive cooling
  • ASUS OptiMem
  • Aura Sync RGB lighting
