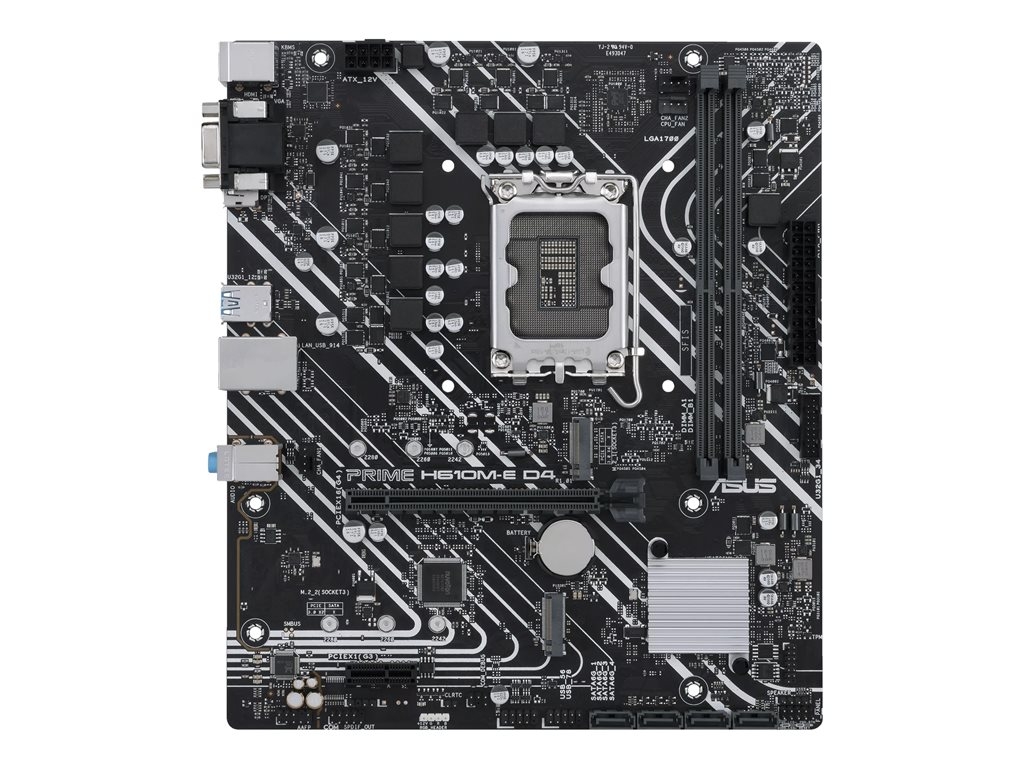

Printers & POSASUS PRIME H610M-E D4-CSM - motherboard - micro ATX - LGA1700 Socket - H610
SKU 90MB19N0-M1EAYC
| Product Description: | ASUS PRIME H610M-E D4-CSM - motherboard - micro ATX - LGA1700 Socket - H610 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H610 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 64 GB |
| RAM Supported: | 2 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H610 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 2 x M.2 |
| Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack |
| Internal Interfaces: | 2 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x speaker - header ¦ 1 x audio - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up: | Wake on PME |
| Hardware Features: | ASUS Q-Design, Q-DIMM, Q-Slot, CrashFree BIOS 3, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, Lighting Control, ASUS 5X Protection III, ASUS SafeSlot Core, Intel Turbo Boost Max Technology 3.0, Q-LED Core |
| Miscellaneous | |
| Included Accessories: | I/O back plate, ACC Express Activation Key Card, M.2 screw package |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ASUS TurboV EVO Utility, ASUS CPU-Z, ASUS AI Suite III, WinRAR, Norton AntiVirus (Trial), ASUS Control Center Express, Armoury Crate, ASUS Fan Xpert 2+ |
| Width: | 24.4 cm |
| Depth: | 21.1 cm |
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
- Flexibility
- All-around energy efficiency
- UEFI BIOS
- Advanced tuning for serious tweakers
- Cooling
- Multiple temperature sources
- Performance
- Dual M.2 slots (up to 32 Gbps)
- PCIe 4.0
- Customization
The technical details come from 3rd party. edgemo is not responsible for any errors.
