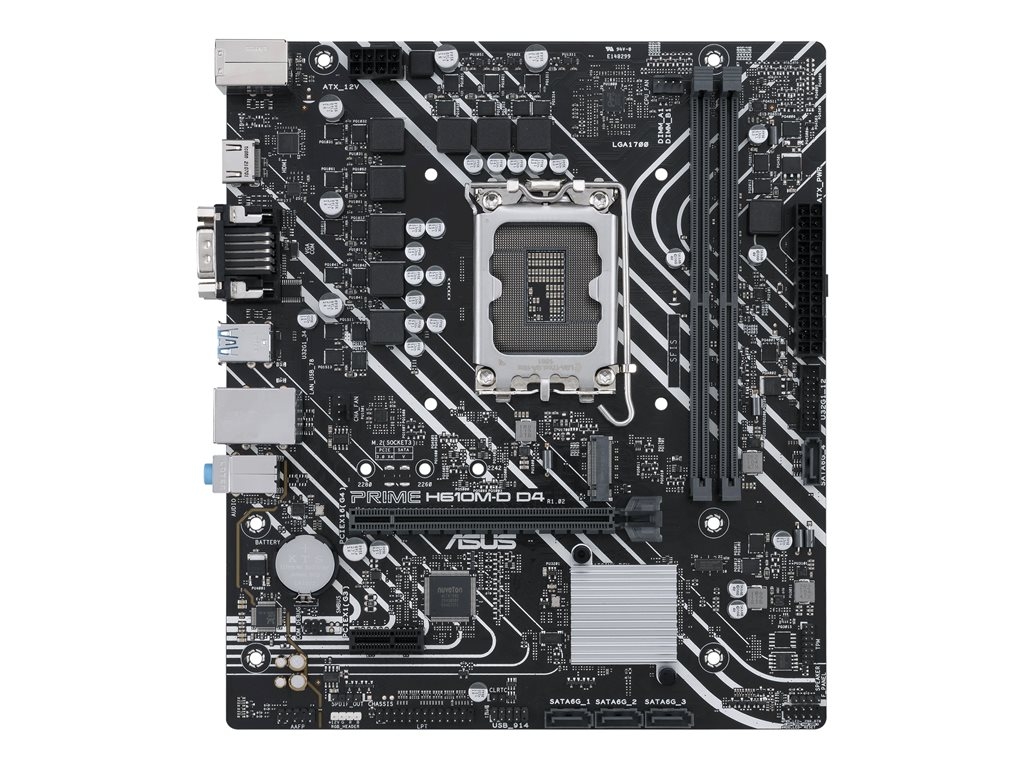

Printers & POSASUS PRIME H610M-D D4 - motherboard - micro ATX - LGA1700 Socket - H610
SKU 90MB1A00-M0EAY0
| Product Description: | ASUS PRIME H610M-D D4 - motherboard - micro ATX - LGA1700 Socket - H610 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H610 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 64 GB |
| RAM Supported: | 2 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H610 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x HDMI ¦ 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x serial |
| Internal Interfaces: | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x parallel - header ¦ 1 x SPDIF out - header ¦ 1 x speaker - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, audio jack detect technology, jack retasking, ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, overvoltage protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, Lighting Control, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, Preboot eXecution Environment (PXE), ASUS EZ DIY, CrashFree BIOS 3 |
| Miscellaneous | |
| Included Accessories: | I/O back plate, 1 x M.2 anchor |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS AI Suite III, ASUS CPU-Z, Norton AntiVirus (Trial), WinRAR, ASUS EZ Flash 3 |
| Width: | 23.4 cm |
| Depth: | 20.3 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
- Intel LGA 1700 socket: ready for 12th Gen Intel processors
- Comprehensive cooling: PCH heatsink and Fan Xpert
- Ultra-fast connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 3.2 Gen 1 support
- 5X Protection III: multiple hardware safeguards for all-round protection
The technical details come from 3rd party. edgemo is not responsible for any errors.
