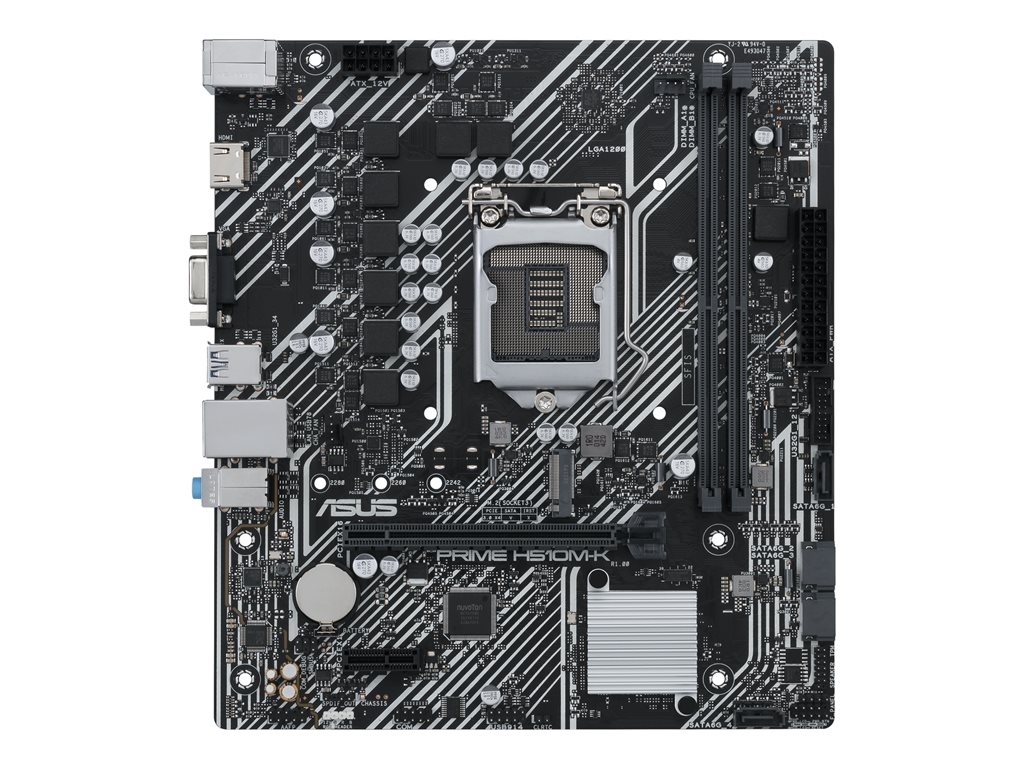

Printers & POSASUS PRIME H510M-K R2.0 - motherboard - micro ATX - LGA1200 Socket - H470
SKU PRIME H510M-K R2.0
| Product Description: | ASUS PRIME H510M-K R2.0 - motherboard - micro ATX - LGA1200 Socket - H470 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H470 |
| Processor Socket: | 1 x LGA1200 Socket |
| Compatible Processors: | (supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 64 GB |
| RAM Supported: | 2 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H470 |
| Processor Socket: | LGA1200 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 3200 MHz (O.C.), 3000 MHz (O.C.), 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (2242/2260/2280 M.2 Key M slot) ¦ 1 x PCIe 3.0 x1 (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x HDMI ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x speaker - header ¦ 1 x SPI - header ¦ 1 x serial - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, jack retasking, audio jack detect technology, ASUS 5X Protection III, LANGuard, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS Fan Xpert, ASUS EZ DIY, CrashFree BIOS 3, Preboot eXecution Environment (PXE), ASUS Overvoltage Protection |
| Miscellaneous | |
| Included Accessories: | IO shield, 1 x M.2 anchor |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Armoury Crate, ASUS Fan Xpert, ASUS AI Suite III, ASUS TurboV EVO Utility, PC Cleaner, ASUS CPU-Z, Norton AntiVirus (60 days trial), WinRAR, ASUS EZ Update |
| Width: | 22.6 cm |
| Depth: | 20.3 cm |
The technical details come from 3rd party. edgemo is not responsible for any errors.
