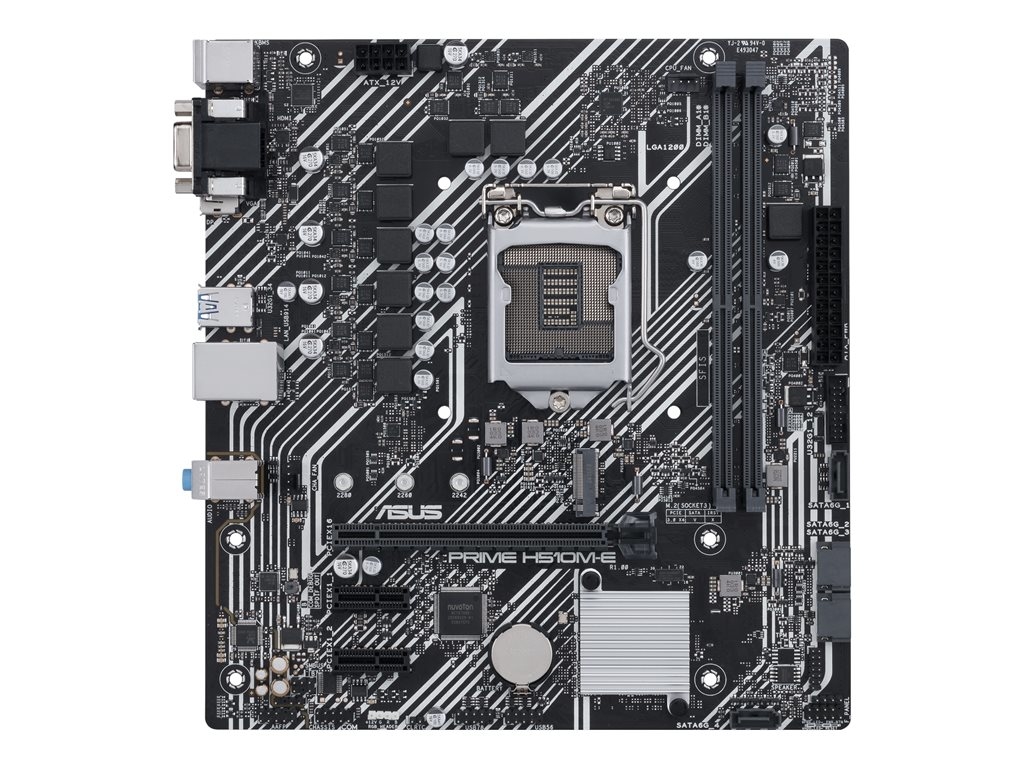

Printers & POSASUS PRIME H510M-E - motherboard - micro ATX - LGA1200 Socket - H510
SKU 90MB17E0-M0EAY0
| Product Description: | ASUS PRIME H510M-E - motherboard - micro ATX - LGA1200 Socket - H510 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H510 |
| Processor Socket: | 1 x LGA1200 Socket |
| Compatible Processors: | (supports 11th and 10th Generation Intel Core i5 / i7 / i9, 10th Generation Intel Core i3 / Pentium / Celeron) |
| Max RAM Size: | 64 GB |
| RAM Supported: | 2 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H510 |
| Processor Socket: | LGA1200 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 11th and 10th Generation Intel Core i5 / i7 / i9, 10th Generation Intel Core i3 / Pentium / Celeron) |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887/ALC897 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Intel I219V |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x HDMI ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, jack retasking, audio jack detect technology, LANGuard, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, ASUS EZ DIY, CrashFree BIOS 3, Preboot eXecution Environment (PXE) |
| Miscellaneous | |
| Included Accessories: | I/O back plate, 1 x M.2 screw |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS AI Suite III, ASUS EZ Update, ASUS CPU-Z, ASUS AI Charger, DAEMON Tools, Norton AntiVirus (Trial), WinRAR |
| Compliant Standards: | DisplayPort 1.4 |
| Width: | 22.6 cm |
| Depth: | 21.1 cm |
The ASUS PRIME H510M-E motherboard offers a robust platform for building a reliable and efficient computer system. Designed with compatibility for 10th and 11th Generation Intel Core processors, this micro ATX motherboard supports high-speed DDR4 RAM with speeds up to 3200 MHz, ensuring enhanced performance for demanding applications. It features multiple expansion slots, including PCIe 4.0 and PCIe 3.0, providing flexibility for future upgrades and additions. The array of connectivity options, including USB 3.2 Gen 1 ports and HDMI outputs, ensures seamless integration with your peripherals and displays. With high definition audio capabilities powered by Realtek ALC887/ALC897, the sound output is clear and immersive, ideal for gaming and multimedia experiences. The motherboard also includes ASUS’s innovative features like LANGuard for network protection and ASUS Fan Xpert for efficient cooling management. The advanced BIOS features such as UEFI BIOS and ASUS EZ Flash 3 allow for straightforward system configuration and updates, making this motherboard a choice for both novice and experienced builders looking for a dependable foundation for their systems.
- Intel LGA 1200 socket: ready for 11th and 10th Gen Intel processors
- Ultra-fast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel 1Gb Ethernet and USB 3.2 Gen 1 Type-A
- Comprehensive cooling: PCH heatsink and Fan Xpert
- 5X Protection III: multiple hardware safeguards for all-round protection
The technical details come from 3rd party. edgemo is not responsible for any errors.
