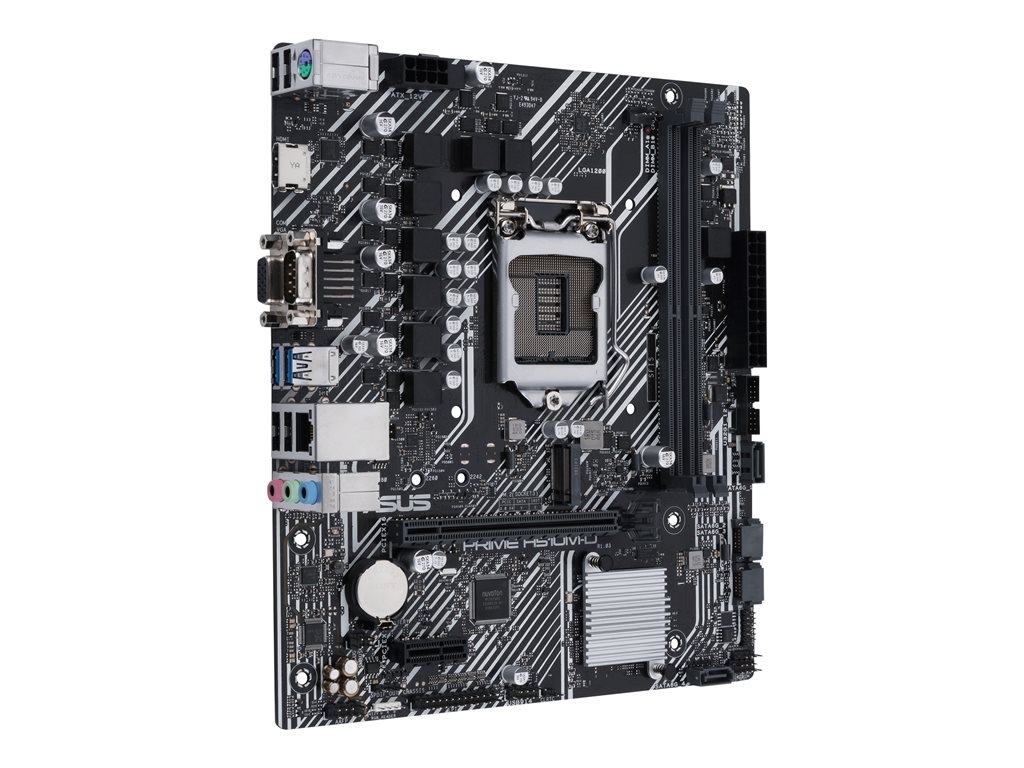

Printers & POSASUS PRIME H510M-D - motherboard - micro ATX - LGA1200 Socket - H510
SKU 90MB17M0-M0EAY0
| Product Description: | ASUS PRIME H510M-D - motherboard - micro ATX - LGA1200 Socket - H510 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H510 |
| Processor Socket: | 1 x LGA1200 Socket |
| Compatible Processors: | (supports 11th and 10th Generation Intel Core i5 / i7 / i9, 10th Generation Intel Core i3 / Pentium / Celeron) |
| Max RAM Size: | 64 GB |
| RAM Supported: | 2 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H510 |
| Processor Socket: | LGA1200 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 11th and 10th Generation Intel Core i5 / i7 / i9, 10th Generation Intel Core i3 / Pentium / Celeron) |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887/ALC897 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Intel I219V |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x HDMI ¦ 1 x VGA ¦ 1 x serial ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces: | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x parallel - header ¦ 1 x speaker - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, LANGuard, jack retasking, audio jack detect technology, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, ASUS EZ DIY, CrashFree BIOS 3, Preboot eXecution Environment (PXE) |
| Miscellaneous | |
| Included Accessories: | I/O back plate, 1 x M.2 anchor |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS AI Suite III, ASUS EZ Update, ASUS CPU-Z, ASUS AI Charger, DAEMON Tools, Norton AntiVirus (Trial), WinRAR |
| Width: | 22.6 cm |
| Depth: | 20.3 cm |
The ASUS PRIME H510M-D motherboard is designed for builders who seek reliability and performance in a compact micro ATX form factor. It features an Intel H510 chipset and supports 11th and 10th Gen Intel CPUs, making it a versatile choice for various builds. High-definition audio is provided through the Realtek ALC887/ALC897 codec, ensuring an immersive sound experience. With dual-channel memory architecture and support for DDR4 RAM speeds up to 3200 MHz (O.C.), this motherboard provides flexibility for both gamers and professionals.
Connectivity options are plentiful with multiple USB 3.2 Gen 1 and USB 2.0 ports, audio interfaces, HDMI, and VGA outputs. There are four SATA-600 ports and an M.2 socket for easy integration of SSDs. The motherboard incorporates ASUS Q-Design, ASUS TurboV EVO, and LANGuard, ensuring stability and protection for your system. It is a solid foundation for any PC build, prioritizing performance and expandability.
Connectivity options are plentiful with multiple USB 3.2 Gen 1 and USB 2.0 ports, audio interfaces, HDMI, and VGA outputs. There are four SATA-600 ports and an M.2 socket for easy integration of SSDs. The motherboard incorporates ASUS Q-Design, ASUS TurboV EVO, and LANGuard, ensuring stability and protection for your system. It is a solid foundation for any PC build, prioritizing performance and expandability.
- Intel LGA 1200 socket: ready for 11th and 10th Gen Intel processors
- Ultra-fast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel 1Gb Ethernet and USB 3.2 Gen 1
- Comprehensive cooling: PCH heatsink and Fan Xpert
- 5X Protection III: multiple hardware safeguards for all-round protection
The technical details come from 3rd party. edgemo is not responsible for any errors.
