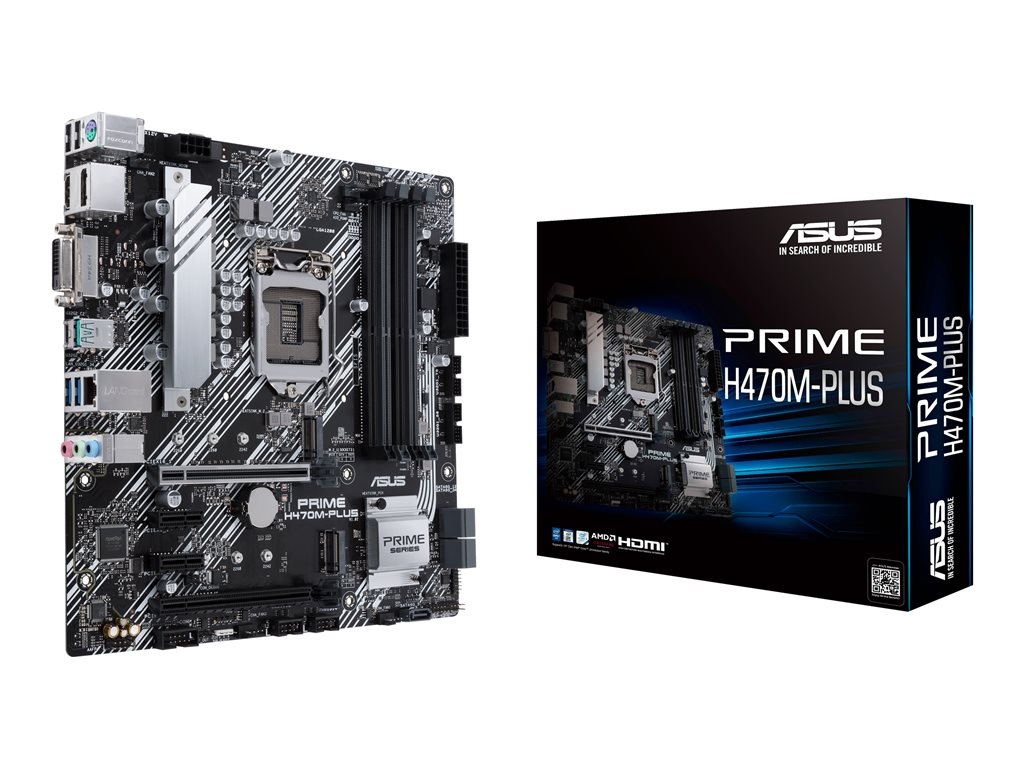

Printers & POSASUS PRIME H470M-PLUS - motherboard - micro ATX - LGA1200 Socket - H470
SKU 90MB1350-M0EAY0
| Product Description: | ASUS PRIME H470M-PLUS - motherboard - micro ATX - LGA1200 Socket - H470 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H470 |
| Processor Socket: | 1 x LGA1200 Socket |
| Compatible Processors: | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H470 |
| Processor Socket: | LGA1200 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Intel I219V |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 5 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x DVI-D ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Extreme Memory Profile (XMP) support, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, AMD CrossFireX technology support, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS Fan Xpert 4, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, ASUS Aura Sync, Armoury Crate, ASUS SafeSlot Core+ |
| Miscellaneous | |
| Included Accessories: | 1 x M.2 screw, I/O back cover |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, ASUS EZ Flash 3, WinRAR |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
ASUS Prime series is expertly engineered to unleash the full potential of powerful processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H470 series motherboards provide daily users and DIY PC builders with a range of performance tuning options via intuitive software and firmware features.
- AMD AM4 socket: ready for powerful processors
- Comprehensive cooling: PCH heatsink and Fan Xpert 4
- Ultrafast connectivity: dual M.2, USB 3.2 Type-A and Type-C support
- ASUS OptiMem: careful routing of traces and vias to preserve signal integrity for improved memory overclocking
The technical details come from 3rd party. edgemo is not responsible for any errors.
