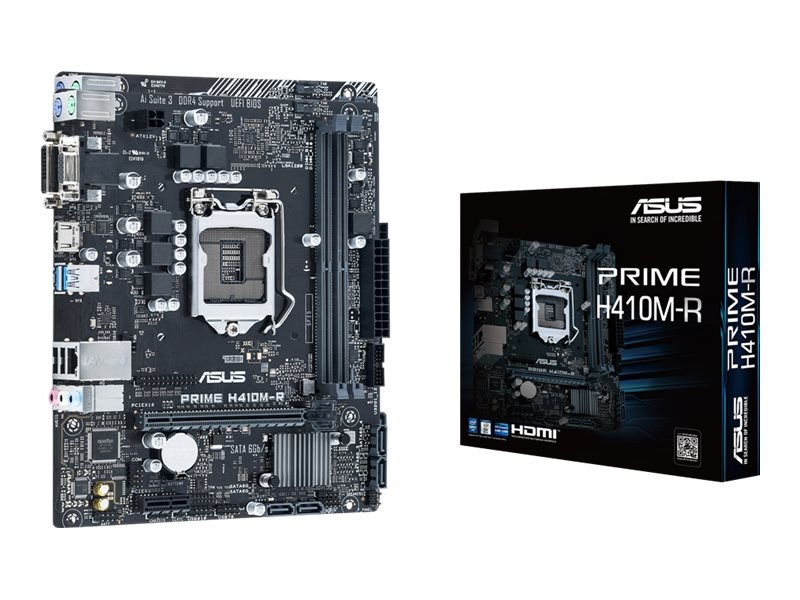

ASUS PRIME H410M-R - motherboard - micro ATX - LGA1200 Socket - H410

SKU 90MB1520-M0ECY0
Product Description:ASUS PRIME H410M-R - motherboard - micro ATX - LGA1200 Socket - H410
Product Type:Motherboard - micro ATX
Chipset Type:Intel H410
Processor Socket:1 x LGA1200 Socket
Compatible Processors:(supports 10th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size:64 GB
RAM Supported:2 DIMM slots - DDR4, non-ECC, unbuffered
Not in stock
  • Specifications
  • Description
General
Product Type:Motherboard - micro ATX
Chipset Type:Intel H410
Processor Socket:LGA1200 Socket
Max Processors Qty:1
Compatible Processors:(supports 10th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size:64 GB
Technology:DDR4
Bus Clock:2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz
Supported RAM Integrity Check:Non-ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type:HD Audio (8-channel)
Audio Codec:Realtek ALC887
Compliant Standards:High Definition Audio
LAN
Network Controller:Realtek RTL8111H
Network Interfaces:Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x1
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA
Interfaces:1 x VGA ¦ 1 x HDMI ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DVI-D
Internal Interfaces:4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x parallel - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x audio - header
Power Connectors:4-pin ATX12V connector, 24-pin main power connector
Features
BIOS Type:AMI
BIOS Features:UEFI BIOS
Sleep / Wake Up:Wake on LAN (WOL), wake on PME
Hardware Features:Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS SafeSlot Core, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, Armoury Crate
Miscellaneous
Included Accessories:I/O back plate
Cables Included:2 x Serial ATA cable
Software Included:Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Flash 3, WinRAR, Norton AntiVirus (60 days trial)
Width:21.3 cm
Depth:18.3 cm
ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H410 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware.
  • Intel LGA 1200 socket: ready for 10th Gen Intel Core processors
  • 5X Protection III: multiple hardware safeguards for all-round protection
  • ASUS OptiMem: careful routing of traces and vias to preserve signal integrity for improved memory stability
  • Ultrafast connectivity: Gigabit Ethernet, USB 3.2 Gen 1 Type-A




The technical details come from 3rd party. edgemo is not responsible for any errors.
