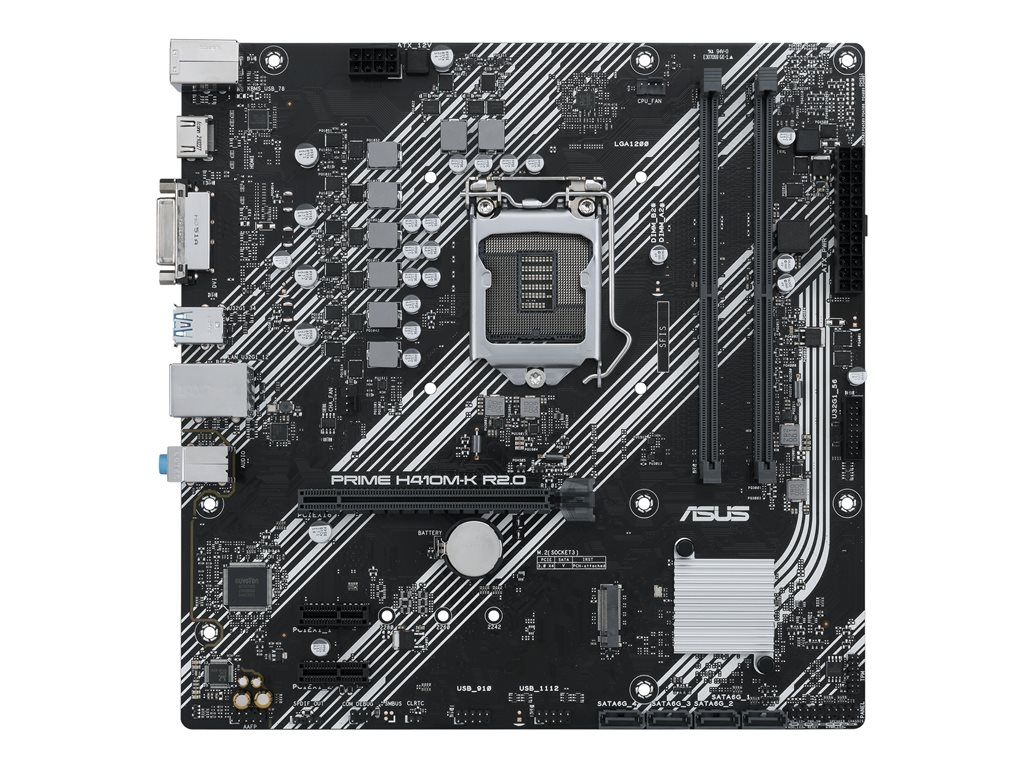

ASUS PRIME H410M-K R2.0 - motherboard - micro ATX - LGA1200 Socket - H470
SKU 90MB1A70-M0EAY0
Product Description: | ASUS PRIME H410M-K R2.0 - motherboard - micro ATX - LGA1200 Socket - H470 |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel H470 |
Processor Socket: | 1 x LGA1200 Socket |
Compatible Processors: | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
Max RAM Size: | 64 GB |
RAM Supported: | 2 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel H470 |
Processor Socket: | LGA1200 Socket |
Max Processors Qty: | 1 |
Compatible Processors: | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
Supported RAM | |
Max Size: | 64 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz |
Supported RAM Integrity Check: | Non-ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | Realtek ALC887/ALC897 |
Compliant Standards: | High Definition Audio |
LAN | |
Network Controller: | Intel I219V |
Network Interfaces: | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 |
Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
RAID Features: | Intel Rapid Storage Technology |
Interfaces: | 1 x HDMI ¦ 1 x DVI-D ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) |
Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header |
Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | UEFI BIOS |
Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
Hardware Features: | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS SafeSlot Core, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, Armoury Crate |
Miscellaneous | |
Included Accessories: | I/O back plate, 1 x M.2 anchor |
Cables Included: | 2 x Serial ATA cable |
Software Included: | ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (Trial) |
Width: | 24.4 cm |
Depth: | 24.4 cm |
Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H410M-K R2.0 motherboard provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
- Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: PCH heatsink, fan headers and Fan Xpert
- ASUS OptiMem: careful routing of traces and vias to preserve signal integrity for improved memory stability
