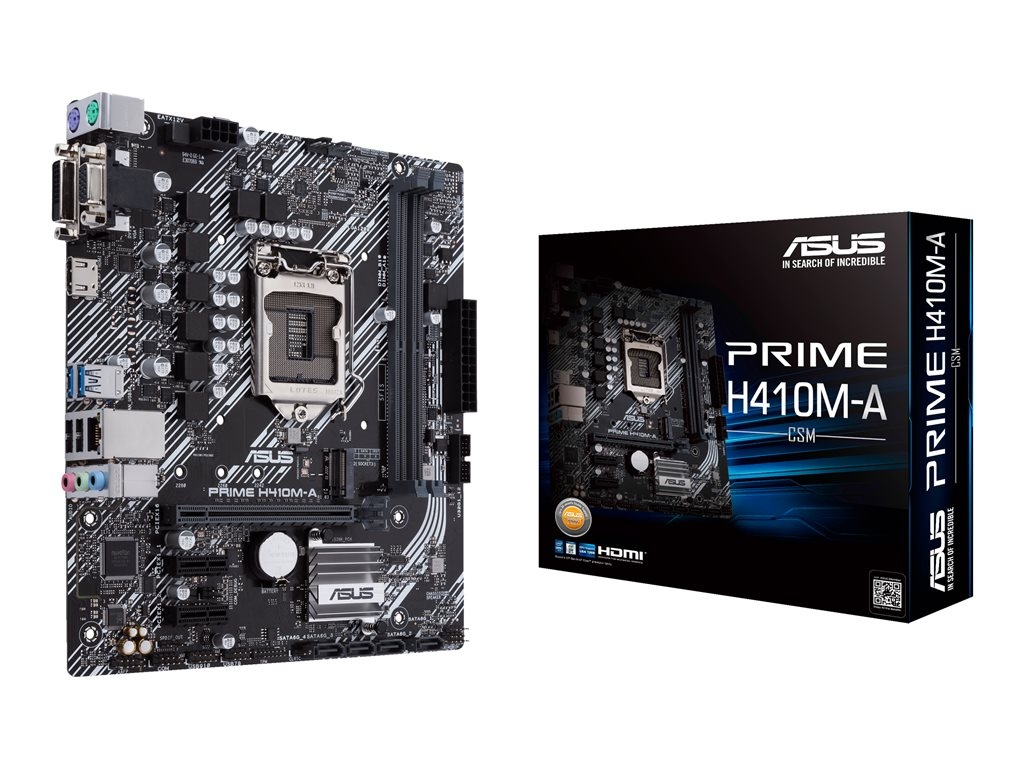

ASUS PRIME H410M-A - motherboard - micro ATX - LGA1200 Socket - H410
SKU 90MB13G0-M0EAY0
Product Description: | ASUS PRIME H410M-A - motherboard - micro ATX - LGA1200 Socket - H410 |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel H410 |
Processor Socket: | 1 x LGA1200 Socket |
Compatible Processors: | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
Max RAM Size: | 64 GB |
RAM Supported: | 2 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel H410 |
Processor Socket: | LGA1200 Socket |
Max Processors Qty: | 1 |
Compatible Processors: | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
Supported RAM | |
Max Size: | 64 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz |
Supported RAM Integrity Check: | Non-ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | Realtek ALC887 |
Compliant Standards: | High Definition Audio |
LAN | |
Network Controller: | Realtek RTL8111H |
Network Interfaces: | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 |
Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
Interfaces: | 1 x VGA ¦ 1 x DVI-D ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x HDMI |
Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x audio - header |
Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | UEFI BIOS |
Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
Hardware Features: | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS SafeSlot Core, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, Armoury Crate |
Miscellaneous | |
Included Accessories: | I/O back plate, 1 x M.2 anchor |
Cables Included: | 2 x Serial ATA cable |
Software Included: | ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial) |
Width: | 22.6 cm |
Depth: | 20.3 cm |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
The ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H410 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware.
- Intel LGA 1200 socket: ready for 10th Gen Intel Core processors
- 5X Protection III: multiple hardware safeguards for all-round protection
- ASUS OptiMem: careful routing of traces and vias to preserve signal integrity for improved memory stability
- Ultra-fast connectivity: M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
