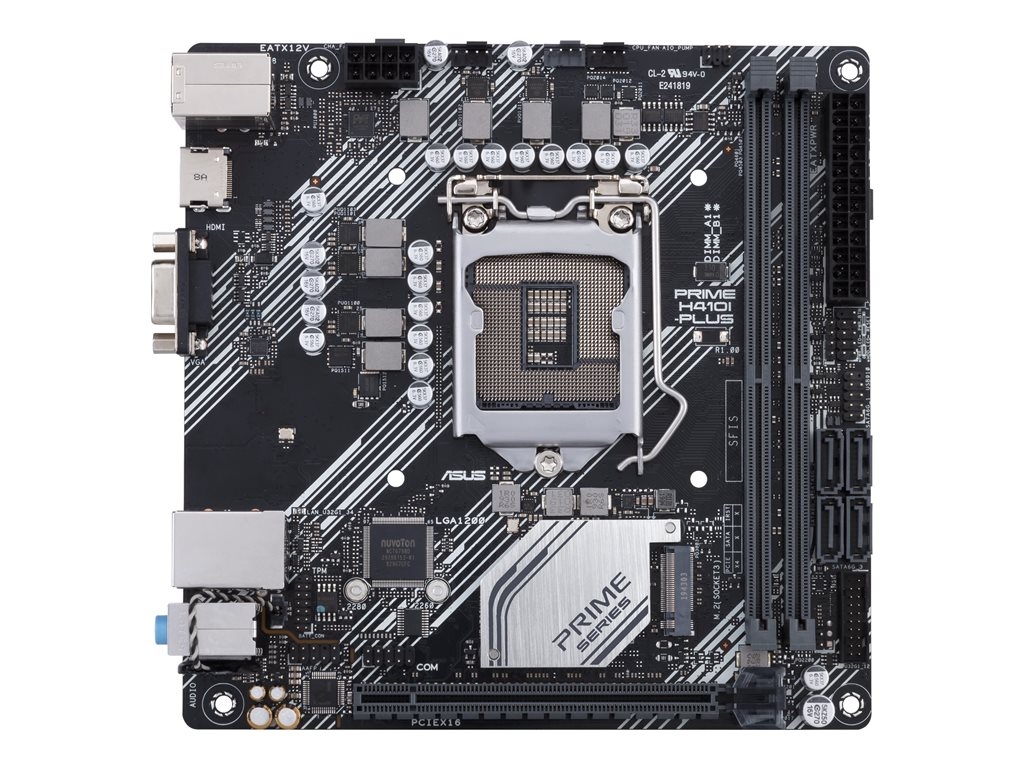

ASUS PRIME H410I-PLUS/CSM - motherboard - mini ITX - LGA1200 Socket - H410
SKU 90MB14W0-M0EAYC
Product Description: | ASUS PRIME H410I-PLUS/CSM - motherboard - mini ITX - LGA1200 Socket - H410 |
Product Type: | Motherboard - mini ITX |
Chipset Type: | Intel H410 |
Processor Socket: | 1 x LGA1200 Socket |
Compatible Processors: | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
Max RAM Size: | 64 GB |
RAM Supported: | 2 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - mini ITX |
Chipset Type: | Intel H410 |
Processor Socket: | LGA1200 Socket |
Max Processors Qty: | 1 |
Compatible Processors: | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
Supported RAM | |
Max Size: | 64 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz |
Supported RAM Integrity Check: | Non-ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | Realtek ALC887 |
Compliant Standards: | High Definition Audio |
LAN | |
Network Controller: | Realtek RTL8111H |
Network Interfaces: | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 |
Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe -connectors: 1 x M.2 |
Interfaces: | 1 x VGA ¦ 1 x HDMI ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) |
Internal Interfaces: | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header |
Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | UEFI BIOS |
Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
Hardware Features: | ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), 8 Layer PCB, ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS Fan Xpert 4, ASUS 5X Protection III, ASUS SafeSlot Core, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, ASUS Control Center Express (ACC Express), 4+1+1 DrMOS Power Stages |
Miscellaneous | |
Cables Included: | 2 x Serial ATA cable |
Width: | 17.02 cm |
Depth: | 17.02 cm |
ASUS PRIME series is expertly engineered to unleash the full potential of modern processors for daily users and all-round builders use. Combining a robust power design, comprehensive cooling solutions, and intelligent tuning options, H410 provides a wealth of options for performance tuning via intuitive software and firmware features.
- Enhanced power solution
- Improved memory stability
- Flexible controls for ultimate cooling and quietness
- Multiple hardware safeguards for all-round protection
The technical details come from 3rd party. edgemo is not responsible for any errors.
