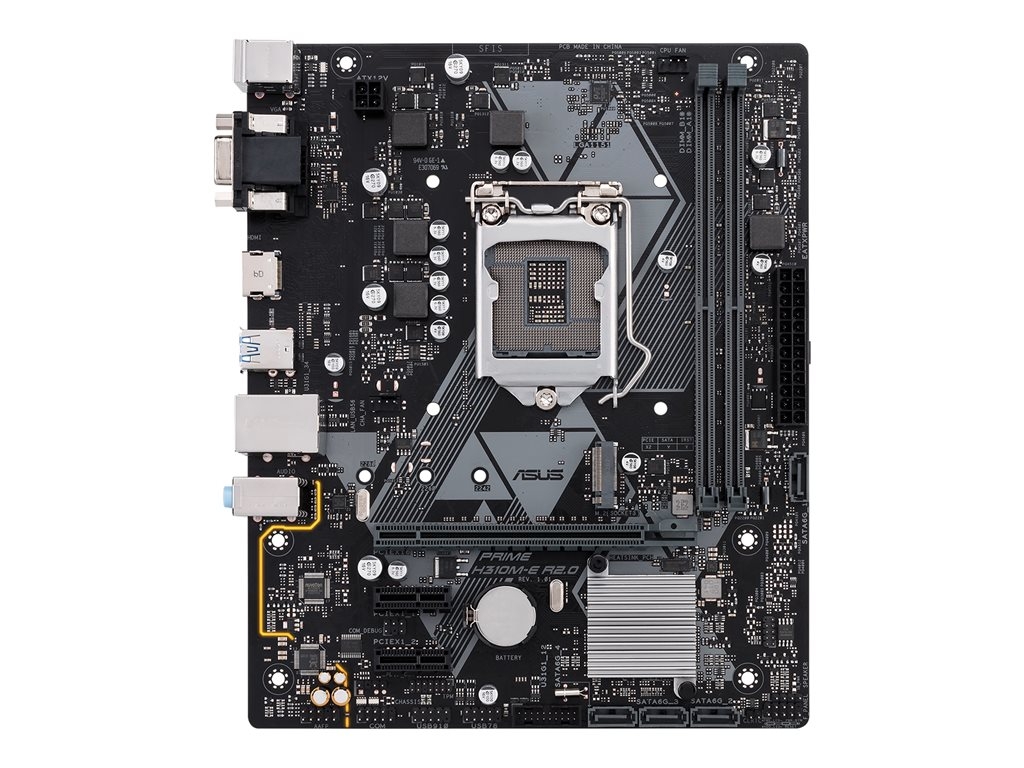

ASUS PRIME H310M-E R2.0 - motherboard - micro ATX - LGA1151 Socket - H310

SKU 90MB0Z20-M0EAY0
Product Description:ASUS PRIME H310M-E R2.0 - motherboard - micro ATX - LGA1151 Socket - H310
Product Type:Motherboard - micro ATX
Chipset Type:Intel H310
Processor Socket:1 x LGA1151 Socket
Compatible Processors:Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Max RAM Size:32 GB
RAM Supported:2 DIMM slots - DDR4, non-ECC, unbuffered
23-02-2023
  • Specifications
  • Description
General
Product Type:Motherboard - micro ATX
Chipset Type:Intel H310
Processor Socket:LGA1151 Socket
Max Processors Qty:1
Compatible Processors:Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Supported RAM
Max Size:32 GB
Technology:DDR4
Bus Clock:2400 MHz, 2133 MHz, 2666 MHz
Supported RAM Integrity Check:Non-ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Graphics
Max Allocated RAM Size:1 GB
Audio
Type:HD Audio (8-channel)
Audio Codec:Realtek ALC887
Compliant Standards:High Definition Audio
LAN
Network Controller:Realtek RTL8111H
Network Interfaces:Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 2.0 x1
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe -connectors: 1 x M.2
Interfaces:1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse
Internal Interfaces:4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x audio - header
Power Connectors:4-pin ATX12V connector, 24-pin main power connector
Features
BIOS Type:AMI
BIOS Features:Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support
Sleep / Wake Up:Wake on LAN (WOL), wake on PME
Hardware Features:Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS OptiMem
Miscellaneous
Included Accessories:I/O back plate, 1 x M.2 anchor
Cables Included:2 x Serial ATA cable
Software Included:Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, PC Cleaner, ASUS EZ Flash 3
Width:22.6 cm
Depth:18.5 cm
vis mere
ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. You'll benefit from industry-leading technologies - including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably.
  • 5X Protection III hardware-level safeguards provide component longevity and reliability
  • FanXpert delivers advanced fan controls for dynamic cooling
  • ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
  • On-board 8-channel HD audio provides warm, immersive crystal-clear surround sound
