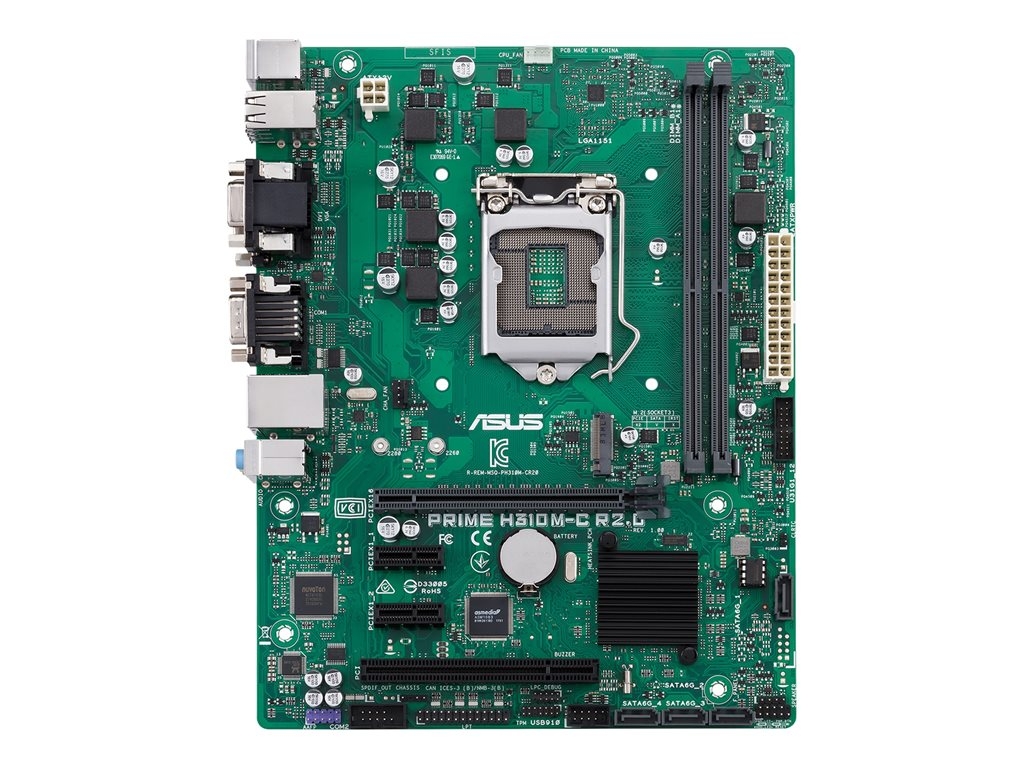

ASUS PRIME H310M-C R2.0/CSM - motherboard - micro ATX - LGA1151 Socket - H310

SKU 90MB0ZM0-M0EAYC
Product Description:ASUS PRIME H310M-C R2.0/CSM - motherboard - micro ATX - LGA1151 Socket - H310
Product Type:Motherboard - micro ATX
Chipset Type:Intel H310
Processor Socket:1 x LGA1151 Socket
Compatible Processors:Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Max RAM Size:32 GB
RAM Supported:2 DIMM slots - DDR4, non-ECC, unbuffered
23-02-2023
  • Specifications
  • Description
General
Product Type:Motherboard - micro ATX
Chipset Type:Intel H310
Processor Socket:LGA1151 Socket
Max Processors Qty:1
Compatible Processors:Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Supported RAM
Max Size:32 GB
Technology:DDR4
Bus Clock:2400 MHz, 2133 MHz, 2666 MHz
Supported RAM Integrity Check:Non-ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Graphics
Max Allocated RAM Size:1 GB
Audio
Type:HD Audio (8-channel)
Audio Codec:Realtek ALC887
Compliant Standards:High Definition Audio
LAN
Network Controller:Realtek RTL8111H
Network Interfaces:Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 2.0 x1 ¦ 1 x PCI
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe -connectors: 1 x M.2
Interfaces:1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x serial ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse
Internal Interfaces:2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 2 x serial - header ¦ 1 x audio - header ¦ 1 x parallel - header ¦ 1 x speaker - header
Power Connectors:4-pin ATX12V connector, 24-pin main power connector
Features
BIOS Type:AMI
BIOS Features:Multilingual BIOS, UEFI BIOS, ACPI 6.1 support, SMBIOS 3.1 support
Sleep / Wake Up:Wake on LAN (WOL)
Hardware Features:Jack retasking, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), Moistureproof PCB, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit
Miscellaneous
Included Accessories:I/O back plate, 1 x M.2 screw
Cables Included:2 x Serial ATA cable
Software Included:Drivers & Utilities, ASUS Watchdog Timer
Compliant Standards:UL, FCC, Blue Angel Ecolabel, NIST SP800-147
Width:24.4 cm
Depth:19.3 cm
vis mere
This lineup of business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization. ASUS business motherboards provide a high-quality, TCO-optimized solution for your business computing needs.
  • ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
  • Dedicated LPC header and debug card with LCD display for faster troubleshooting
  • Event log for capturing and managing detailed system information
  • Innovative moisture-resistant coating to protect the motherboard from harsh environments




The technical details come from 3rd party. edgemo is not responsible for any errors.
