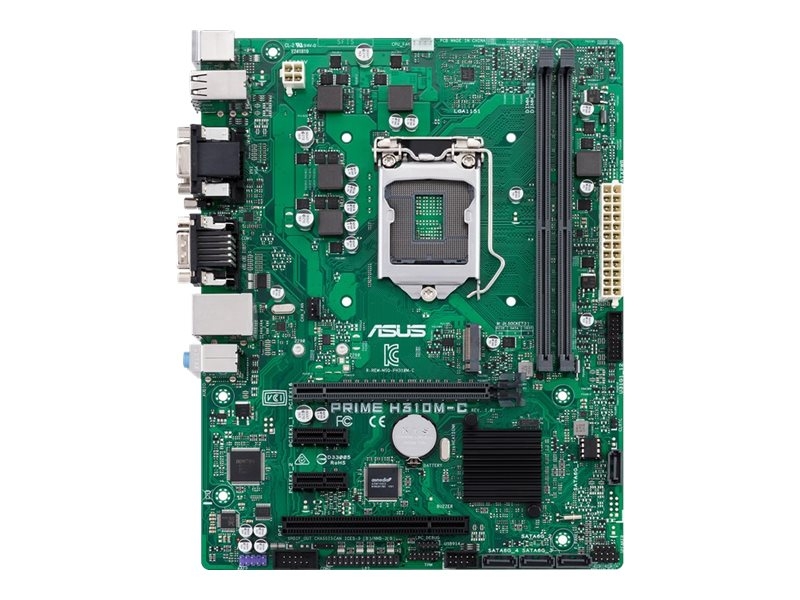

Printers & POSASUS PRIME H310M-C - motherboard - micro ATX - LGA1151 Socket - H310
SKU 90MB0W60-M0EAYM
| Product Description: | ASUS PRIME H310M-C - motherboard - micro ATX - LGA1151 Socket - H310 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H310 |
| Processor Socket: | 1 x LGA1151 Socket |
| Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Max RAM Size: | 32 GB |
| RAM Supported: | 2 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H310 |
| Processor Socket: | LGA1151 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Supported RAM | |
| Max Size: | 32 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Graphics | |
| Max Allocated RAM Size: | 1 GB |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Realtek RTL8111H |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 2.0 x1 ¦ 1 x PCI |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe -connectors: 1 x M.2 |
| Interfaces: | 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x serial ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse |
| Internal Interfaces: | 2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 2 x serial - header ¦ 1 x audio - header ¦ 1 x parallel - header ¦ 1 x speaker - header |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | Multilingual BIOS, UEFI BIOS, ACPI 6.1 support, SMBIOS 3.1 support |
| Sleep / Wake Up: | Wake on LAN (WOL) |
| Hardware Features: | Jack retasking, Q-DIMM, Q-Slot, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), Moistureproof PCB, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit |
| Miscellaneous | |
| Included Accessories: | I/O back plate, 1 x M.2 screw |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS Watchdog Timer |
| Compliant Standards: | UL, FCC, Blue Angel Ecolabel |
| Width: | 24.4 cm |
| Depth: | 19.3 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
The technical details come from 3rd party. edgemo is not responsible for any errors.
