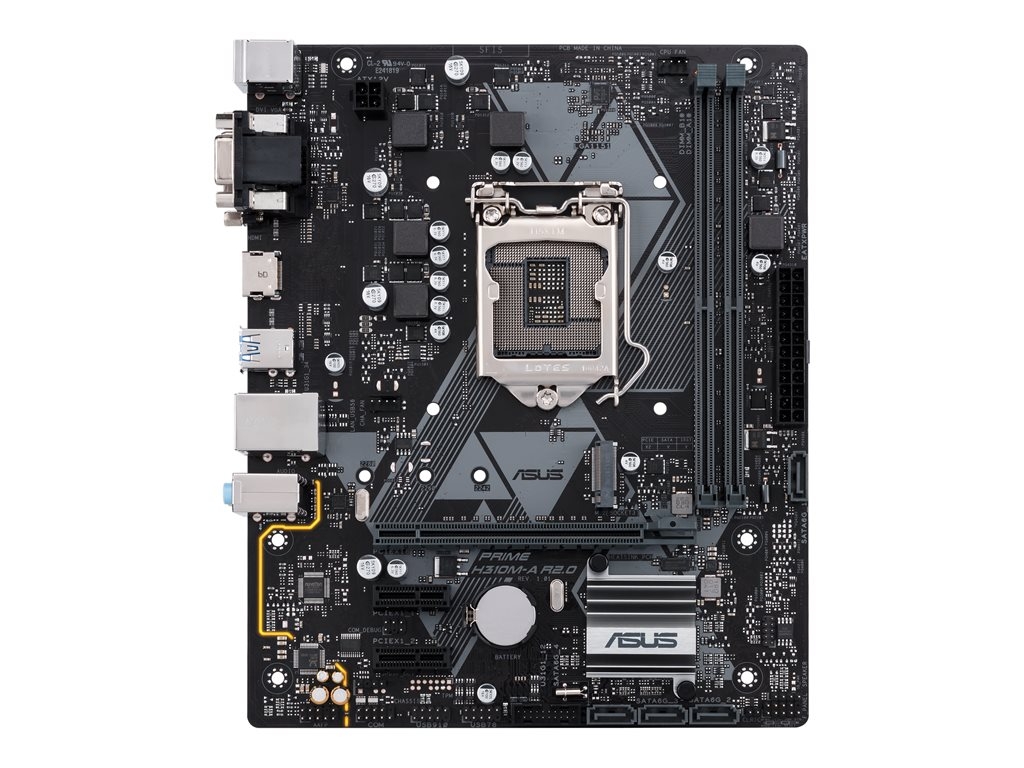

ASUS PRIME H310M-A R2.0/CSM - motherboard - micro ATX - LGA1151 Socket - H310

SKU 90MB0Z10-M0EAYC
Product Description:ASUS PRIME H310M-A R2.0/CSM - motherboard - micro ATX - LGA1151 Socket - H310
Product Type:Motherboard - micro ATX
Chipset Type:Intel H310
Processor Socket:1 x LGA1151 Socket
Compatible Processors:Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Max RAM Size:32 GB
RAM Supported:2 DIMM slots - DDR4, non-ECC, unbuffered
Not in stock
  • Specifications
  • Description
General
Product Type:Motherboard - micro ATX
Chipset Type:Intel H310
Processor Socket:LGA1151 Socket
Max Processors Qty:1
Compatible Processors:Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Supported RAM
Max Size:32 GB
Technology:DDR4
Bus Clock:2400 MHz, 2133 MHz, 2666 MHz
Supported RAM Integrity Check:Non-ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Graphics
Max Allocated RAM Size:1 GB
Audio
Type:HD Audio (8-channel)
Audio Codec:Realtek ALC887
Compliant Standards:High Definition Audio
LAN
Network Controller:Realtek RTL8111H
Network Interfaces:Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 2.0 x1
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe -connectors: 1 x M.2
Interfaces:1 x VGA ¦ 1 x DVI-D ¦ 2 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet)
Internal Interfaces:4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x audio - header
Power Connectors:4-pin ATX12V connector, 24-pin main power connector
Features
BIOS Type:AMI
BIOS Features:Multilingual BIOS, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support
Sleep / Wake Up:Wake on LAN (WOL), wake on PME
Hardware Features:Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS OptiMem
Miscellaneous
Width:22.6 cm
Depth:18.5 cm
ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. All the good stuff that's packed into the Intel Core processors has been melded with essential ASUS design and engineering, so you benefit from industry-leading technologies - including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordable.
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
  • Fan Xpert: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming
  • 5X Protection III: Multiple hardware safeguards for all-round protection




The technical details come from 3rd party. edgemo is not responsible for any errors.
