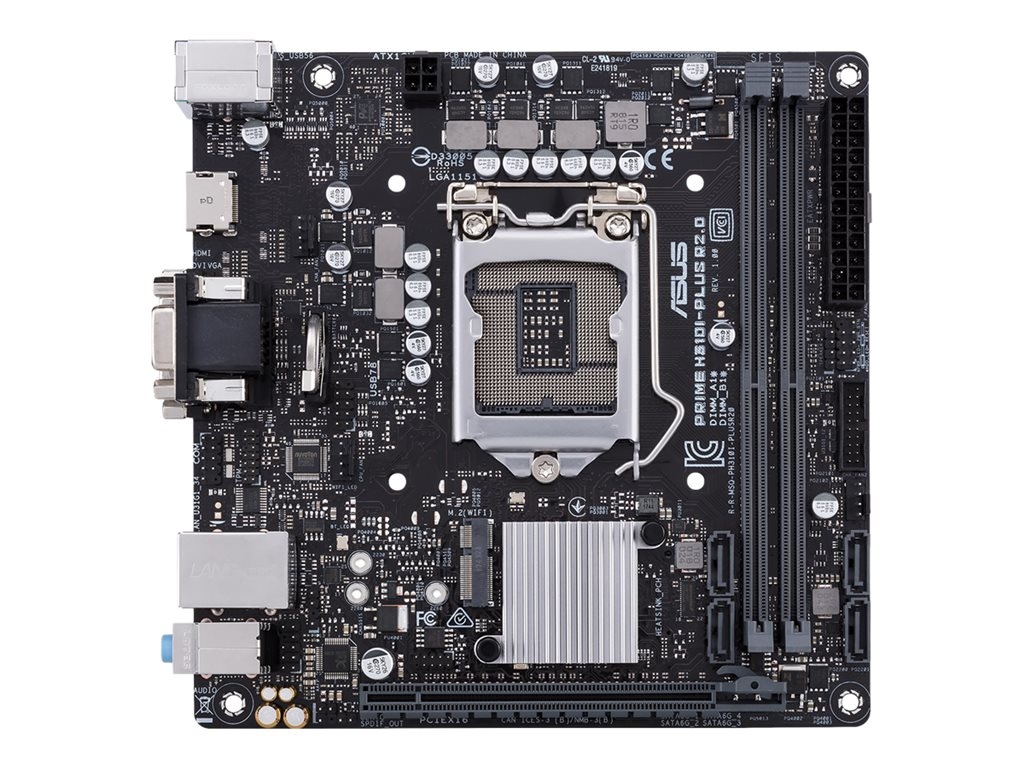

Software & LicensesASUS PRIME H310I-PLUS R2.0/CSM - motherboard - mini ITX - LGA1151 Socket - H310
SKU 90MB1090-M0EAYC
| Product Description: | ASUS PRIME H310I-PLUS R2.0/CSM - motherboard - mini ITX - LGA1151 Socket - H310 |
| Product Type: | Motherboard - mini ITX |
| Chipset Type: | Intel H310 |
| Processor Socket: | 1 x LGA1151 Socket |
| Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Max RAM Size: | 32 GB |
| RAM Supported: | 2 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - mini ITX |
| Chipset Type: | Intel H310 |
| Processor Socket: | LGA1151 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Supported RAM | |
| Max Size: | 32 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Graphics | |
| Max Allocated RAM Size: | 1 GB |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Realtek RTL8111H |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe -connectors: 1 x M.2 |
| Interfaces: | 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DVI-D ¦ 2 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x HDMI |
| Internal Interfaces: | 2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x audio - header |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS SafeSlot Core |
| Miscellaneous | |
| Included Accessories: | I/O back plate, 2 x M.2 screws |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Flash 3, File Transfer |
| Width: | 17 cm |
| Depth: | 17 cm |
ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. You benefit from advanced technologies including automated system tuning, comprehensive cooling controls, and immersive onboard audio.
- Flexible cooling controls
- All-round energy efficiency
- Cooler by design
- Media-acclaimed UEFI BIOS
- Future-proof connectivity
- Built to last
- Beyond VR ready
