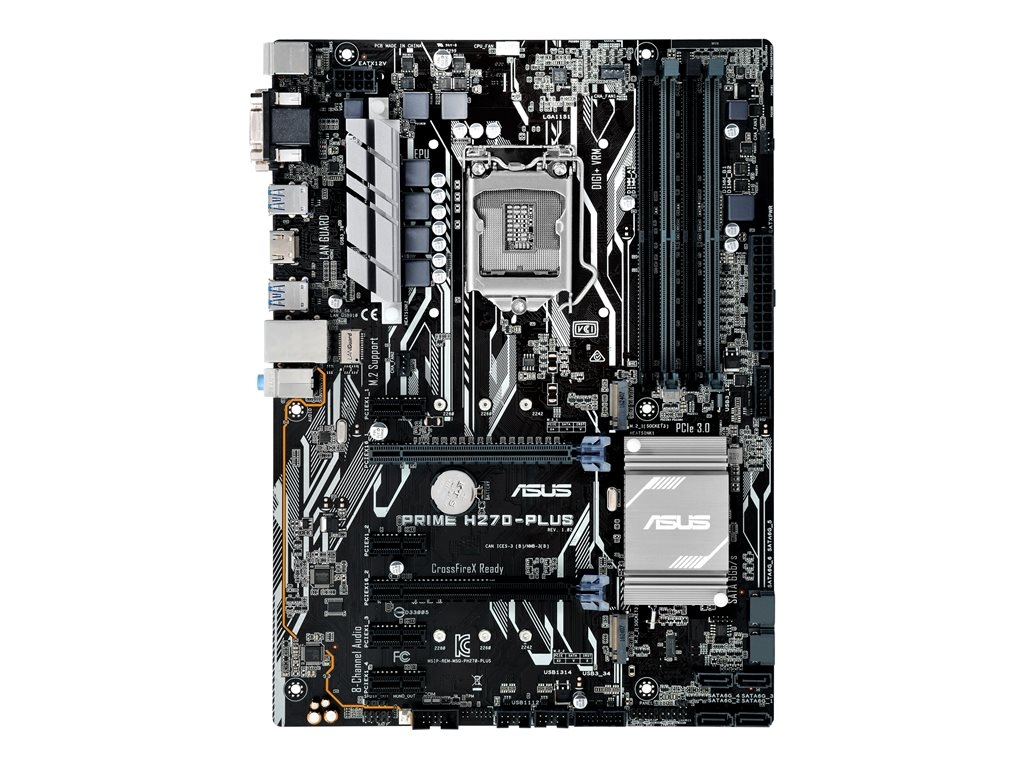

ASUS PRIME H270-PLUS - motherboard - ATX - LGA1151 Socket - H270

SKU 90MB0S90-M0EAY0

Product Description:	ASUS PRIME H270-PLUS - motherboard - ATX - LGA1151 Socket - H270
Product Type:	Motherboard - ATX
Chipset Type:	Intel H270
Processor Socket:	1 x LGA1151 Socket
Compatible Processors:	Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Max RAM Size:	64 GB
RAM Supported:	4 DIMM slots - DDR4, non-ECC, unbuffered

30-12-2024

Specifications
Description
Accessories

General
Product Type:	Motherboard - ATX
Chipset Type:	Intel H270
Processor Socket:	LGA1151 Socket
Max Processors Qty:	1
Compatible Processors:	Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)

Supported RAM
Max Size:	64 GB
Technology:	DDR4
Bus Clock:	2400 MHz, 2133 MHz
Supported RAM Integrity Check:	Non-ECC
Registered or Buffered:	Unbuffered
Features:	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Graphics
Max Allocated RAM Size:	1 GB

Audio
Type:	HD Audio (8-channel)
Audio Codec:	Realtek ALC887
Compliant Standards:	High Definition Audio

LAN
Network Controller:	Realtek RTL8111H
Network Interfaces:	Gigabit Ethernet

Expansion / Connectivity
Expansion Slots:	1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 4 x PCIe 3.0 x1
Storage Interfaces:	SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2
Interfaces:	1 x HDMI ¦ 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 mouse ¦ 4 x USB 3.0 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x DVI-D
Internal Interfaces:	4 x USB 2.0 - header ¦ 4 x USB 3.0 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 2 x audio - header
Power Connectors:	24-pin main power connector, 8-pin ATX12V connector

Features
BIOS Type:	AMI
BIOS Features:	WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support, ACPI 6.0 support
Sleep / Wake Up:	Wake on LAN (WOL), wake on PME
Hardware Features:	Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Extreme Memory Profile (XMP) support, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, AMD CrossFireX technology support, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, Lighting Control, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS SafeSlot Core

Miscellaneous
Included Accessories:	I/O back cover, 2 x M.2 screws
Cables Included:	2 x Serial ATA cable
Software Included:	ASUS AI Charger, ASUS AI Suite III
Compliant Standards:	Plug and Play

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years

vis mere

ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. The engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible - maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for Prime.

Fortified PCIe slot prevents damage
Pumped-up throughput, 2.5x higher surge tolerance
World-class circuit-protecting power design
Electrostatic discharge protection
Top-to-bottom reliability
