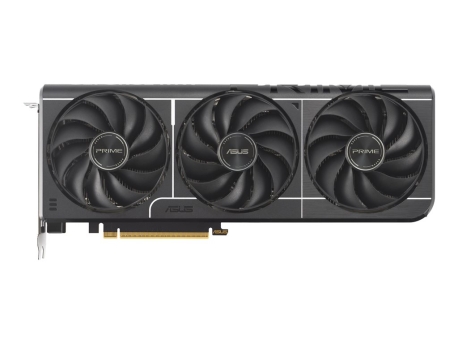

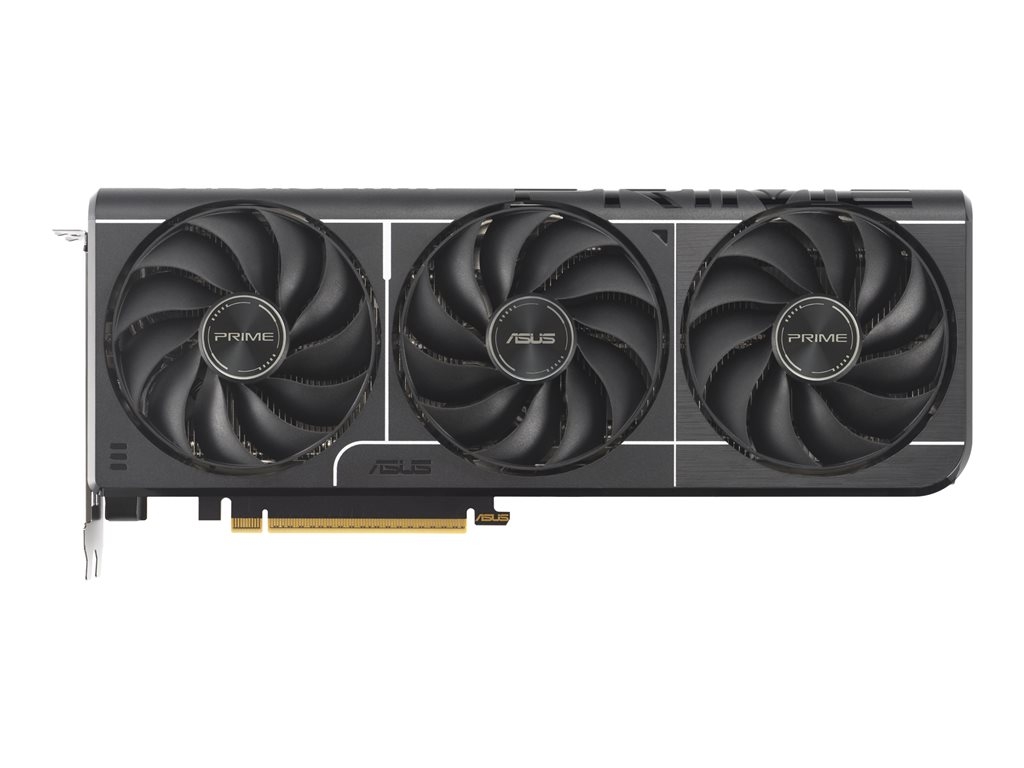

ASUS PRIME GeForce RTX 5060 Ti 8GB - OC Edition - graphics card - GeForce RTX 5060 Ti - 8 GB
SKU 90YV0MP0-M0NA00
Product Description: | ASUS PRIME GeForce RTX 5060 Ti 8GB - OC Edition - graphics card - GeForce RTX 5060 Ti - 8 GB |
Device Type: | Graphics card |
Bus Type: | PCI Express 5.0 |
Graphics Engine: | NVIDIA GeForce RTX 5060 Ti |
Memory: | 8 GB GDDR7 |
Memory Speed: | 28 Gbps |
Boost Clock: | 2617 MHz |
- Specifications
- Description
General | |
Device Type: | Graphics card |
Bus Type: | PCI Express 5.0 |
Graphics Engine: | NVIDIA GeForce RTX 5060 Ti |
Boost Clock: | 2617 MHz |
Boost Clock (OC): | 2647 MHz |
CUDA Cores: | 4608 |
Max Resolution: | 7680 x 4320 |
Max Monitors Supported: | 4 |
Interfaces Details: | 3 x DisplayPort ¦ HDMI |
API Supported: | OpenGL 4.6 |
Features: | NVIDIA GeForce SFF-Ready, 2.5-slot Fan Cooler, Axial-tech Fan Design, vented backplate, Dual ball Bearing Fans, Dual Bios, NVIDIA Ansel, NVIDIA G-Sync ready, NVIDIA Avatar Cloud Engine (ACE), 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA Reflex 2, 0dB Technology, stainless steel mounting bracket, protection plate, AUTO-EXTREME technology, Triple Fan Design, HDCP |
Memory | |
Size: | 8 GB |
Technology: | GDDR7 SDRAM |
Memory Speed: | 28 Gbps |
Bus Width: | 128-bit |
System Requirements | |
Required Power Supply: | 550 W |
Additional Requirements: | 8-pin CPU power connector |
Miscellaneous | |
Included Accessories: | Graphics card support bracket, hook-and-loop fastener, thank you card |
Software Included: | ASUS GPU Tweak III |
Compliant Standards: | HDCP 2.3, DisplayPort 2.1b |
Width: | 5 cm |
Depth: | 30.4 cm |
Height: | 12 cm |
The ASUS PRIME GeForce RTX 5060 Ti 8 GB is designed to elevate your gaming experience with its specifications and technology. Equipped with 8 GB of GDDR7 SDRAM and a 128-bit bus width, this graphics card delivers performance, making it easy to handle demanding applications and high-resolution gaming. Supporting a maximum external resolution of 7680 x 4320, it allows for visuals on multiple displays, accommodating up to 4 monitors. Enjoy smooth gameplay with high frame rates, thanks to features like NVIDIA DLSS 4 and the 4th gen Ray Tracing Cores, ensuring that gaming requires less effort without sacrificing quality. The PRIME GeForce RTX 5060 Ti also boasts a triple fan design with Axial-tech Fan Design and 0dB Technology for efficient cooling, maintaining optimal performance even under intense conditions. With a boost clock speed of 2602 MHz in OC mode, gamers can experience enhanced responsiveness. This graphics card also comes with accessories such as a graphics card support bracket and a thank you card, making it a well-rounded choice for any gaming setup.
- 8 GB GDDR7 SDRAM provides ample memory for demanding applications
- Supports up to 4 monitors with a maximum resolution of 7680 x 4320
- Features NVIDIA DLSS 4 and 4th gen Ray Tracing Cores for enhanced visuals
- Equipped with a triple fan design for cooling performance
- Boost clock speed reaches up to 2602 MHz in OC mode
